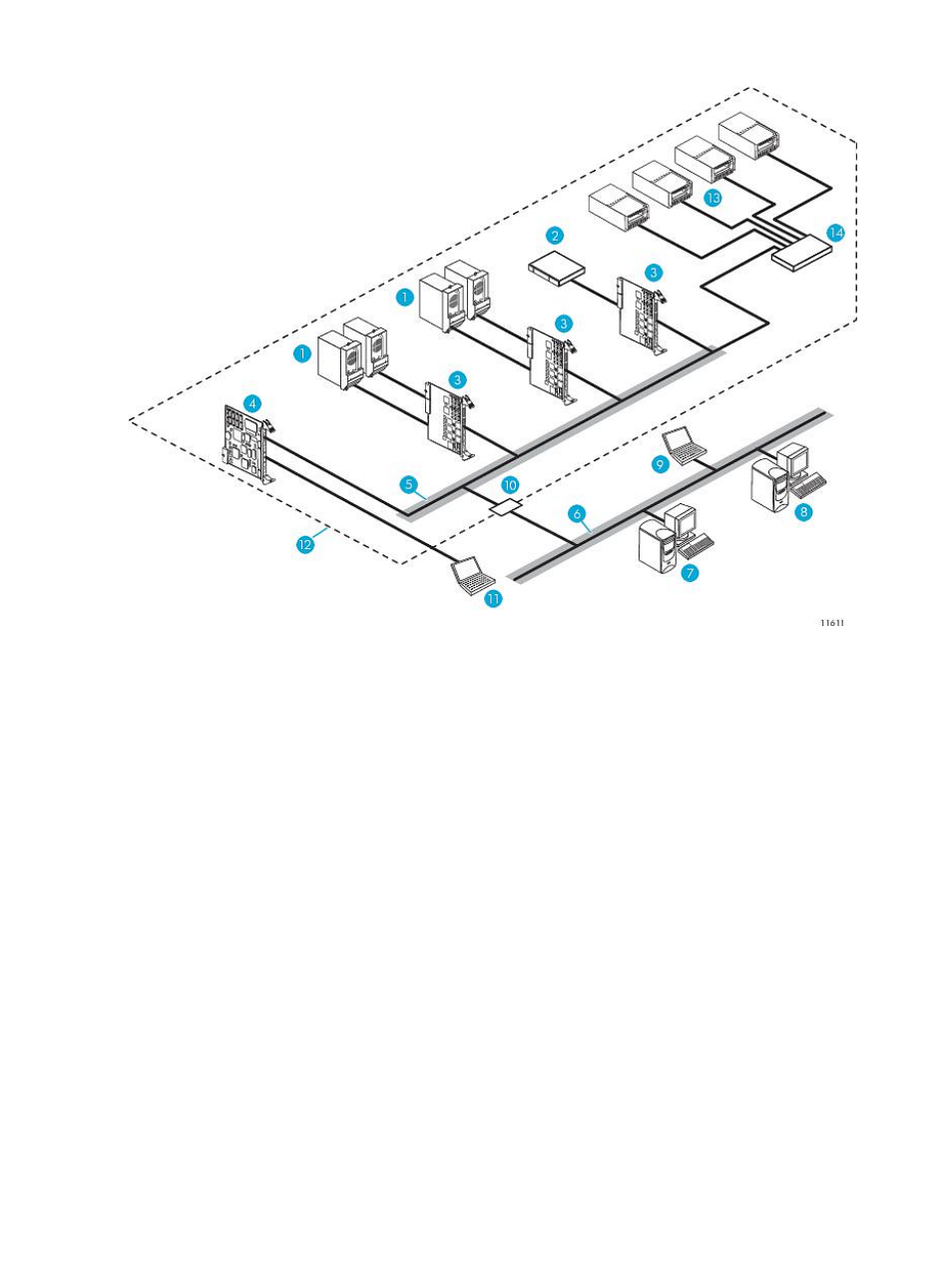

Figure 1 Network configuration for ESL E-Series tape libraries
2. Robot 1. SDLT, LTO1, LTO2, or LTO3 tape drives
4. Interface Manager card 3. FC interface controllers
6. External network 5. Internal network
8. Remote web browser connected to management station
via HTTP 7. Management station with Command View TL
10. Library Cabinet Controller 9. Telnet connection
12. Library boundary 11. Serial CLI via RS-232 connection
14. Internal network switch (LTO4 or later libraries only) 13. LTO4 or later tape drives
12 Introduction
