NORD Drivesystems BU0750 - Manual (Page 28)

NORDAC SK 750E Manual
28 Subject to technical amendments BU 0750 GB-3311
Technology unit
SK TU2-... Protection
class
Description Data
Profibus module (ext. 24V)
SK TU2-PBR-24V
Part. No. 275130110
IP55
This interface enables control of
the NORDAC SK 750E via the
Profibus DP serial port.
Profibus interface
Baud rate: 12 MBit/s
2x 5 pin M12 system connectors
1 external 24 V power supply
Profibus module (ext. 24V)
SK TU2-PBR-24V-C
Part. No. 275170110
IP66
InterBus module
SK TU2-IBS
Part. No. 275130080
IP55
This interface enables control of
the NORDAC SK 750E via the
serial InterBus port. InterBus interface
Baud rate: 500 KBit/s
2x 5 pin M12 system connectors
InterBus module
SK TU2-IBS-C
Part. No. 275170080
IP66
DeviceNet module
SK TU2-DEV
Part. No. 275130090
IP55
This option enables control of
the NORDAC SK 700E via the
DeviceNet serial port using the
DeviceNet protocol.
DeviceNet interface
Baud rate: 500 KBit/s
1x 5 pin M12 system connector
DeviceNet module
SK TU2-DEV-C
Part. No. 275170090
IP66
CANopen module
SK TU2-CAO
Part. No. 275130100
IP55
This option enables control of
the NORDAC SK 750E via the
CANbus serial port using the
CANopen protocol.
CANopen interface
Baud rate: up to 1 MBit/s
2x 5 pin M12 system connectors
CANopen module
SK TU2-CAO-C
Part. No. 275170100
IP66
AS interface module
SK TU2-AS1
Part. No. 275130120
IP55 This interface enables the
control of sensors and
actuators. In addition, the NORD
SK 750E can be parameterised
via the AS interface
AS interface
2 x 2 M12 5 pin sockets /
connectors
AS interface module
SK TU2-AS1-C
Part. No. 275170120
IP66

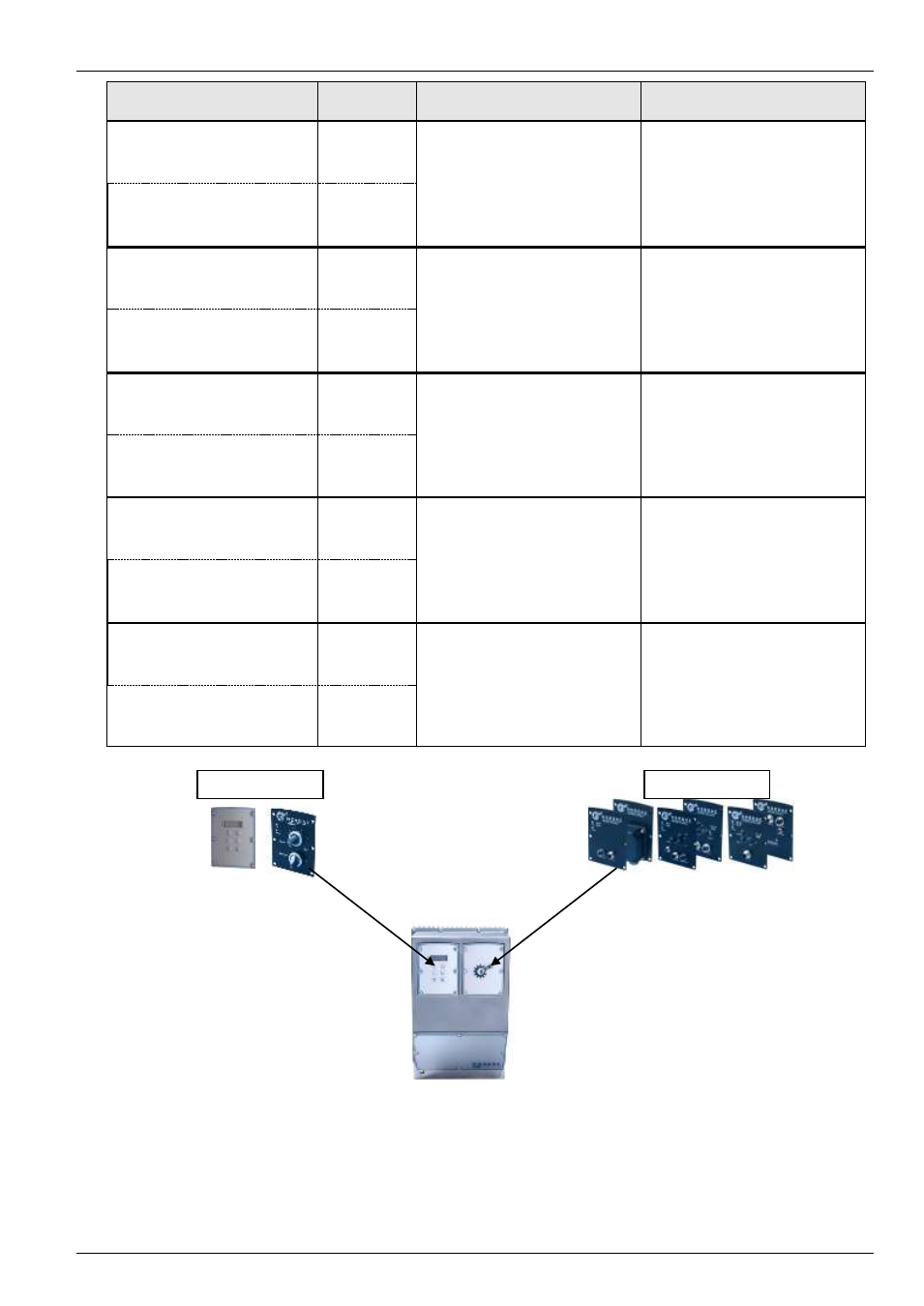

Control units Bus modules
