APPENdIX 1. LIST OF PArAMETErS FOr EACH BLOCK OF rOTAMASS
a-23
IM 01R04B05-00E-E 3rd edition July 30, 2010 -00 all Rights Reserved. Copyright © 2005, Rota Yokogawa
A1.4.5.3 Mode Handling
If you rewrite the value in out and RtotaL, while the mode is in Man or o/S, n_RESEt is incremented.
Mode action output
normal action normal output
Integration calculation is stopped.
out will not be updated unless you
set a value to it. no reset is accepted. You may rewrite a value in out. If no value is rewritten, the value just before
running in auto is held. When the mode returns to auto, integration
starts with the written value or the value just before running in auto.
automatic (auto)
Manual (Man)
out of Service (o/S)
ta0204.EPS
A1.4.6 reset
A1.4.6.1 reset Trigger
there are the following five types of reset triggers:
1. an integrated value exceeds totaL_SP.
2. an integrated value fall below "0".
3. RESEt_In is "H".
4. Every period specified in CLoCK_PER (for more
information see CLoCK_PER in a2.6.2.).
5. oP_CMD_Int is "1".
the table a2.2 shows the correlation between
IntEG_tYPE and RESEt triggers.

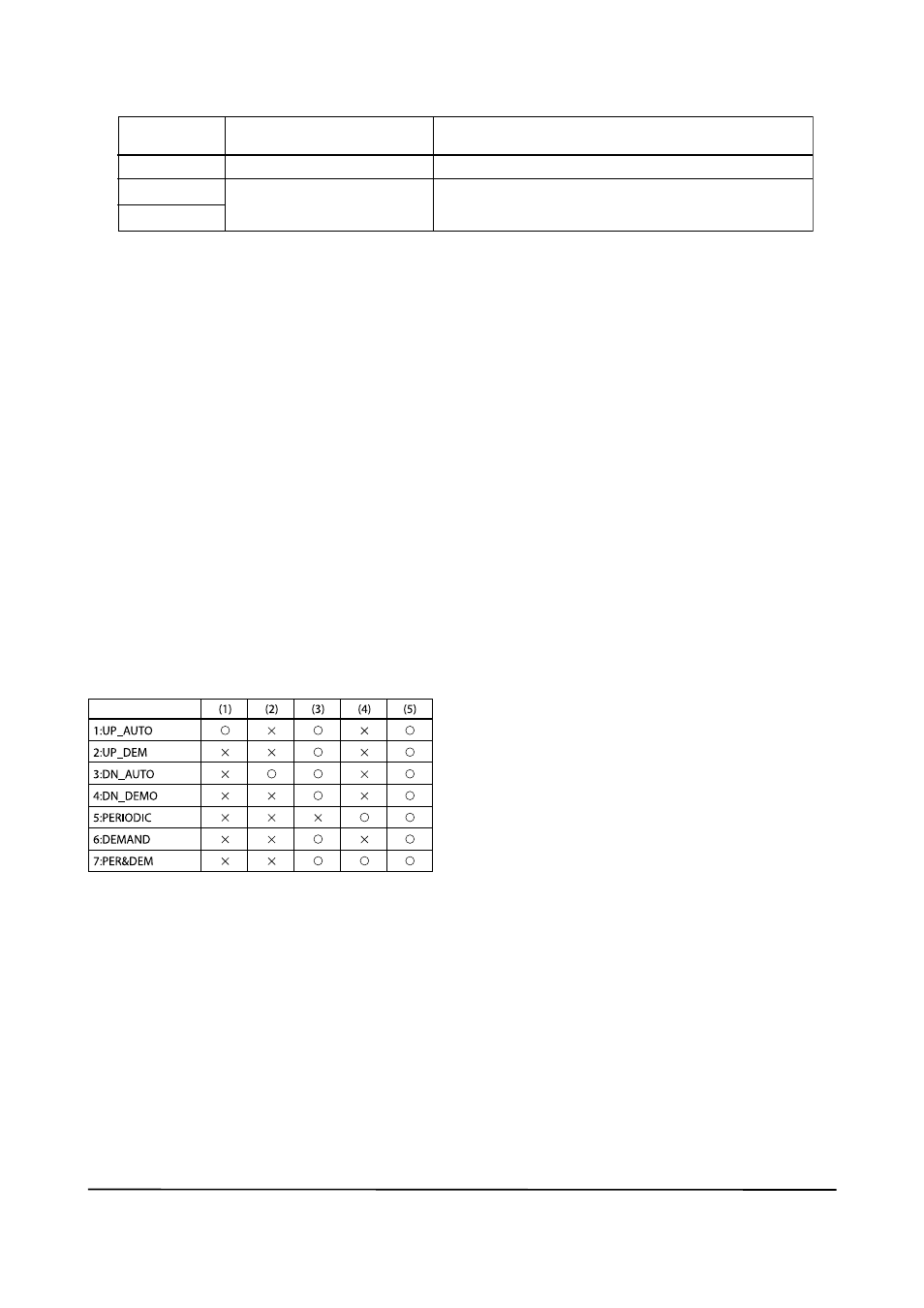

Table A2.2 rESET Triggers
When oP_CMD_Int has become "H" and a reset
was made, oP_CMD_Int automatically returns to "L".
Even if RESEt_In becomes "H", activating a reset,
RESEt_In does not automatically return to "L".
the RESEt_In setting will not be retained if the
power is turned to oFF.
ta0205.EPS
A1.4.6.2 reset Timing
all items are reset during execution of the function
block. therefore, the minimum period of a reset is the
block execution period.
• 5- second rule
If a reset is made, the next reset will not be
accepted for 5 seconds after that.
Even if uP_auto (or Dn_auto) is activated and
totaL_SP (or 0) is reached within 5 seconds,
the next reset will nit be made for 5 secondes
from the previous reset.
• CLoCK_PER
If IntEG_tYPE is PERIoDIC (5) or PER&DEM (7)
a reset is made at the period (sec) set to the
CLoCK_PER parameter.
If the value in CLoCK_PER is smaller than
the function block´s execution period. bit 1 of
BLoCK_ERR "Block Configuration Error) is set.
