Watlow CLS User Manual
Page 52
44 CLS User’s Guide
Installation

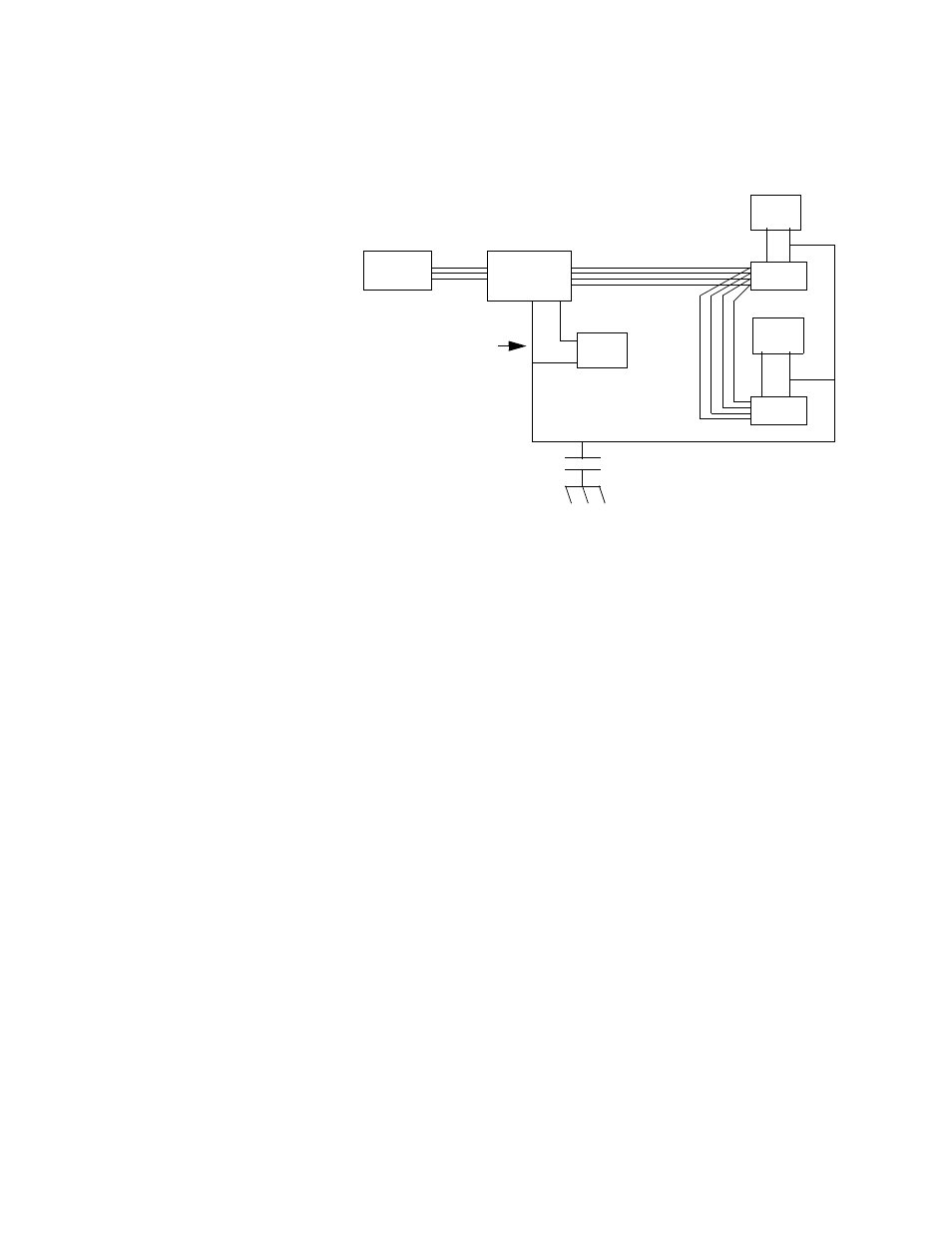

The diagram on the next page shows the recommended system hookup.
To avoid ground loops, it uses an optically isolated RS-232 to RS-485
converter at the host computer. The system is powered from the CLS's
power source or from a secure, isolated supply.
Wire equipment in a single “daisy chain” using twisted shielded pairs
for the RS-485 cables. Don't use “octopus connections” or “spurs”.
CLS
CLS
Optically
Isolated
Converter
Host
Computer
Fifth Wire
Optional
Capacitor
Power
Supply
Power
Supply
Power
Supply
-
+
+
-
+
-
