132 CLS User’s Guide
Appendix A: Ramp Soak

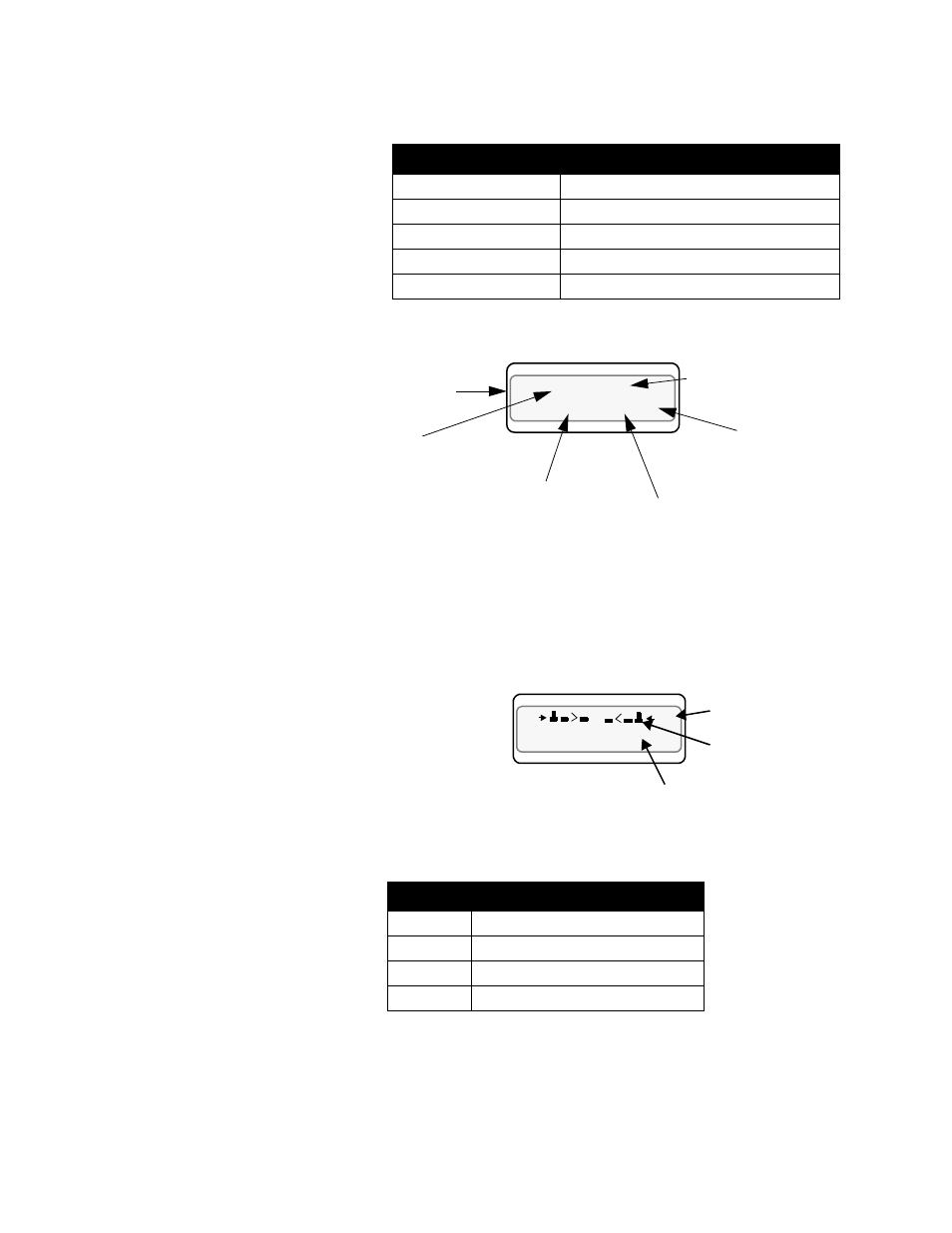

This is the Single Loop display when a profile is running.
Bar graph display
Loops that are running R/S profiles have different Bar Graph display
codes. For these loops, you will see the first letter of each mode where
the controller would normally display M (for Manual control) or A (for
Automatic control).
The next table shows the codes you would see in loops running R/S
profiles.
Ramp/Soak Key Displays
Use the RAMP/SOAK key to see the time left in the current profile, the
profile’s status, or the number of times the profile has cycled.
Code Mode
STRT The profile is in the Ready segment.
RUN The profile is running.
HOLD The user has put the profile in Hold mode.
TOHO The profile is in tolerance hold.
WAIT The profile is in trigger wait state.
Code Meaning
R A profile is running.
H A profile is holding.
S A profile is in Ready state.
O A profile is in tolerance hold.
LOOP PROCESS UNITS
ALARM SETPOINT STATUS OUT%
02 347 º F
180 RUN 50
Loop number
Process variable
Engineering units
Setpoint
Profile mode
Output percentage
LOOP PROCESS UNITS
ALARM SETPOINT STATUS OUT%
01 08
RSHS ROMA
Loop number
Alarm Symbol
R/S mode
