Page 50
42 CLS User’s Guide
Installation
Unused Inputs
Set the input type for unused inputs to “SKIP” to avoid the default T/C
break alarms. (See Input Type in Chapter 4: Setup for information on
setting the input type.)

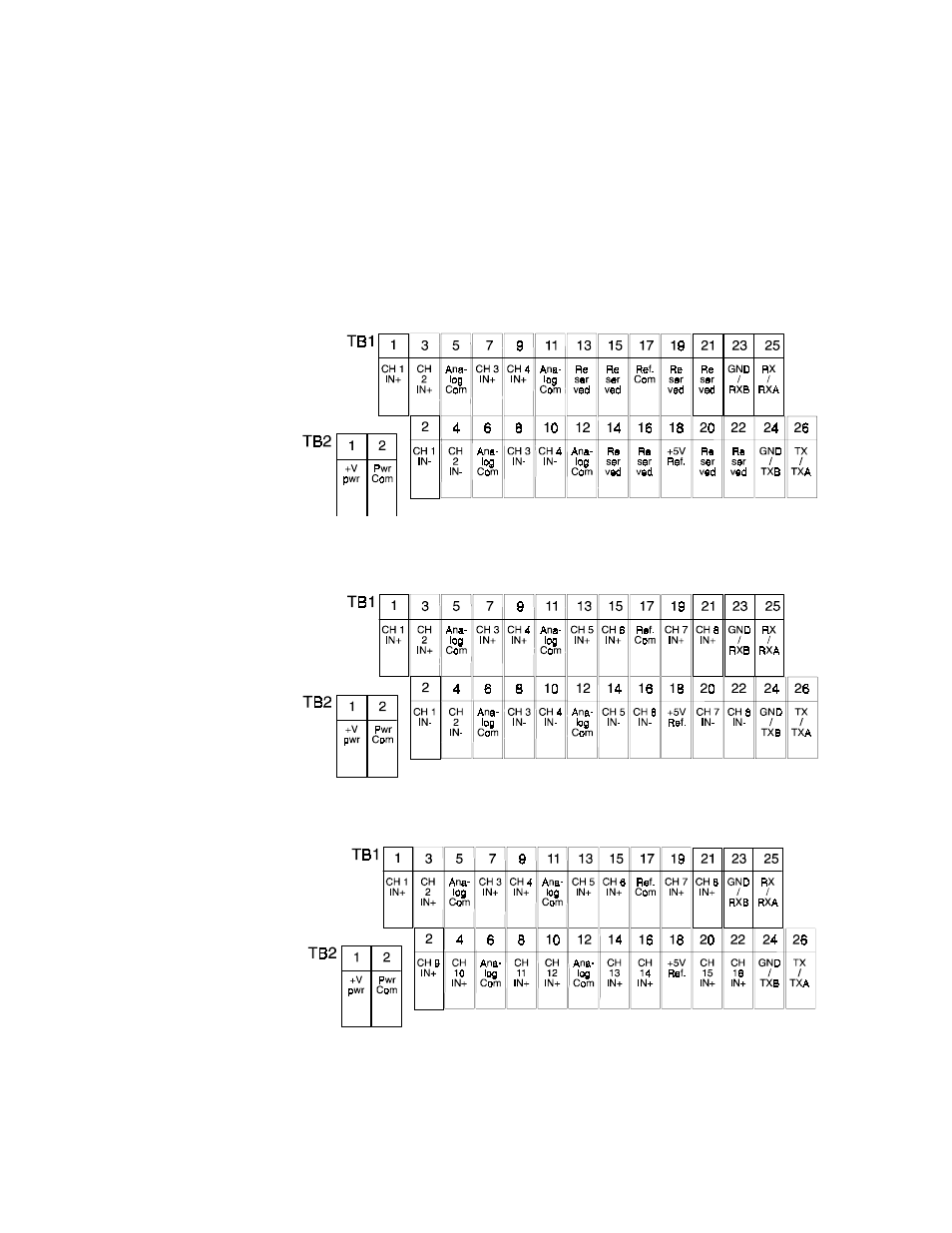

Back Terminal Block Connections
Wire inputs to the back terminal block as shown below.
4CLS
8CLS
16 CLS
