Help Manual
7

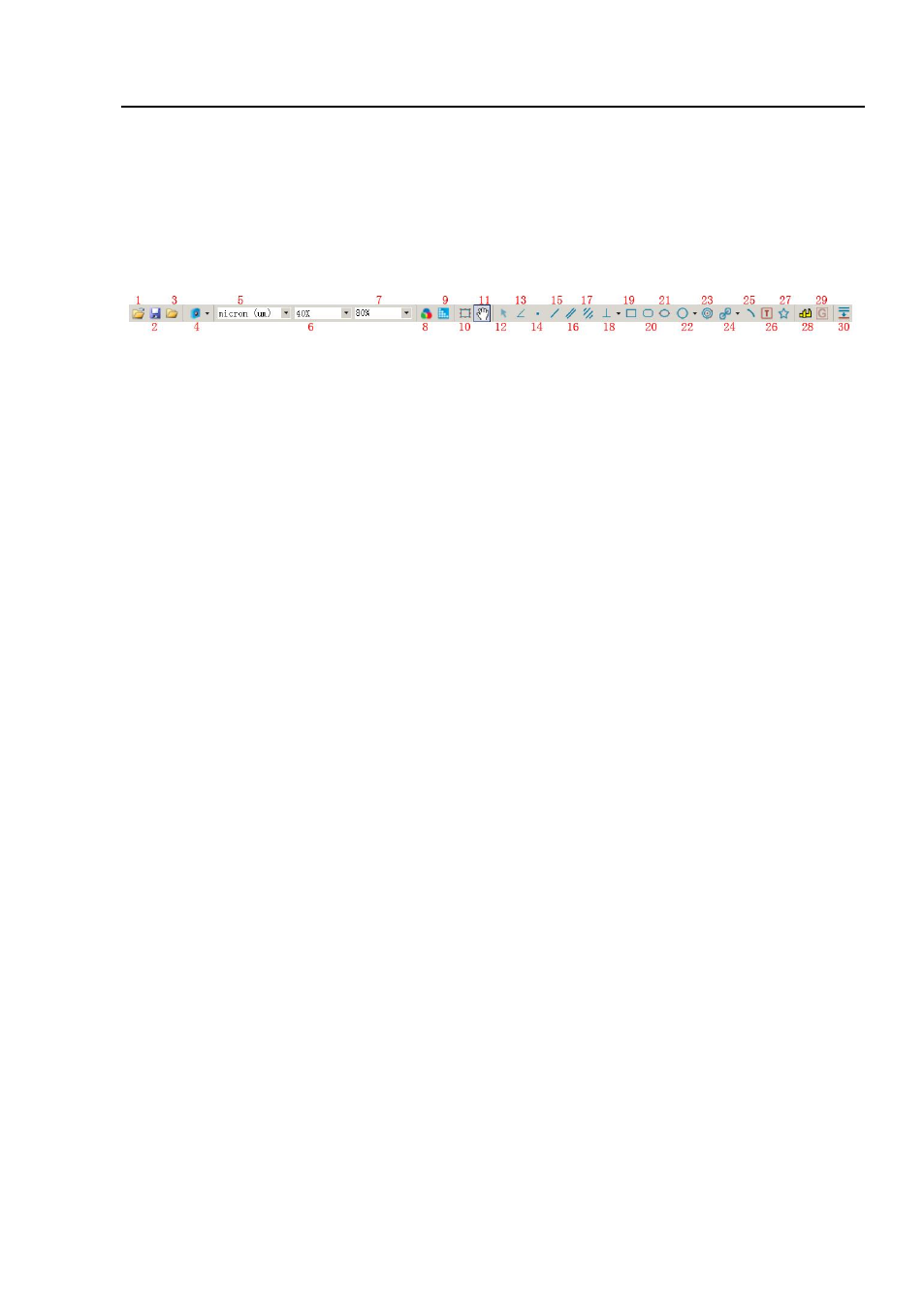

4 UI toolbar
When the camera is started or the image is opened, most of the icons on the toolbar
will be available for the quick setup of the
Video or Image characteristic.
1: Open (Ctrl + O) 2: Save (Ctrl + S) 3: Browse (Ctrl + B)
4: Camera List 5: Unit 6: Magnification 7: Zoom
8: Video Source Properties (will be enabled only for the camera that support
directshow interface)
9:
Video Stream Format (will be enabled only for the camera that support directshow
interface)
10:
Video/Image Select
11: Track (enabled only when the video/image sizes large than the window size)
12: Object Select (will be enabled only when an object is existed on the layer above
the background layer) 13: Angle 14: Point 15: Line
16: Parallel 17: Two Parallel 18: Vertical 19: Rectangle
20 RoundRect 21: Ellipse 22: Circle 23: Annulus
24: Two Circles 25: Arc 26: Text 27: Polygon
28: Calibration (for both video/image window)
29: Gray Calibration (will be enabled only when a rectangle area is selected)
30: Manual Fusion .
