Help Manual
95
Directly select a color by:
1) Dragging the Color Value Slider to the desired color on the Color Bar (range of 0 to
359°): or
2) Clicking the appropriate Color button on the Color Palette . The Color Bar
represents Color degrees in the standard color wheel representation, and the Color
Palette contains a subset of possible Colors (pure red, green, blue, cyan, magenta,
and white): or
3) Select a dye in the dye list, and click the Select Dye button.
Note : You can navigate through the Select Color dialog box by using the and
keys to cycle through the items in the dialog box.
Intensity is determined by the image the Color is applied to, and saturation will
always be 100%.
The only exception to this is the “white” Color , which has by definition a saturation of
0%. Selecting a value greater than or equal to 360 (dragging the Color Value slider
over to the far right) is a choice of white, which results in a non-tinted (gray) image.

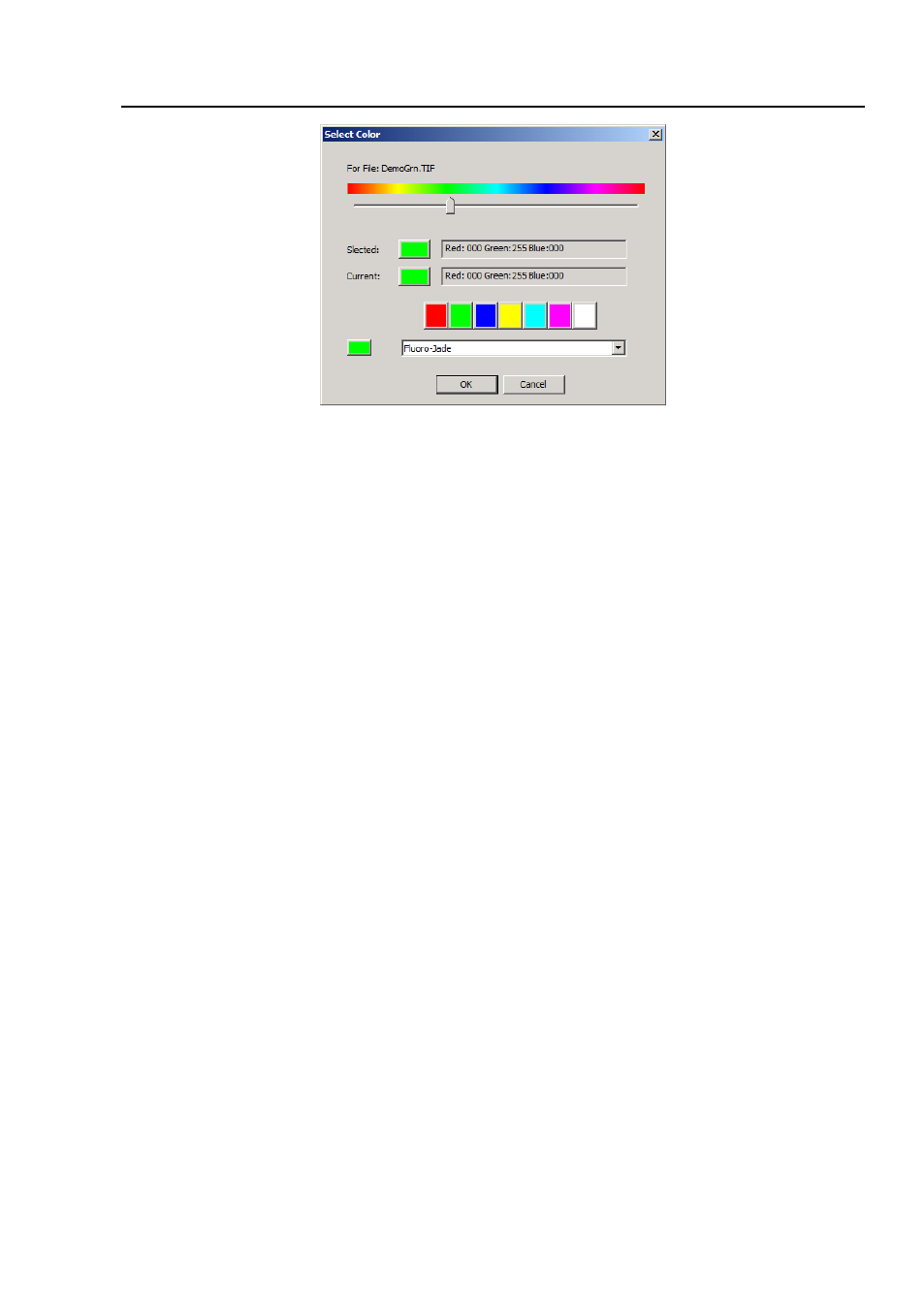

The elements of the Select Color dialog box are:
Color Bar : The Color Bar shows a rainbow displaying the Colors underneath the
appropriate point of the Color Value slider.
Note :
