5. Operation Using I/O Signals
(3) RA4C type (4) RA6C type
Caution: Accuracy of push force while the actuator is standing still is not guaranteed. The above figures should be
used for reference purposes only.
Take note that if the push force is too small, the actuator may malfunction during push-motion operation due
to slide resistance, etc.
The maximum current-limiting values are as shown in the graphs above. The minimum current-limiting
values should be at least 20%.
Low-speed type
(lead: 2.5 mm)
Low-speed type
(lead: 4 mm)

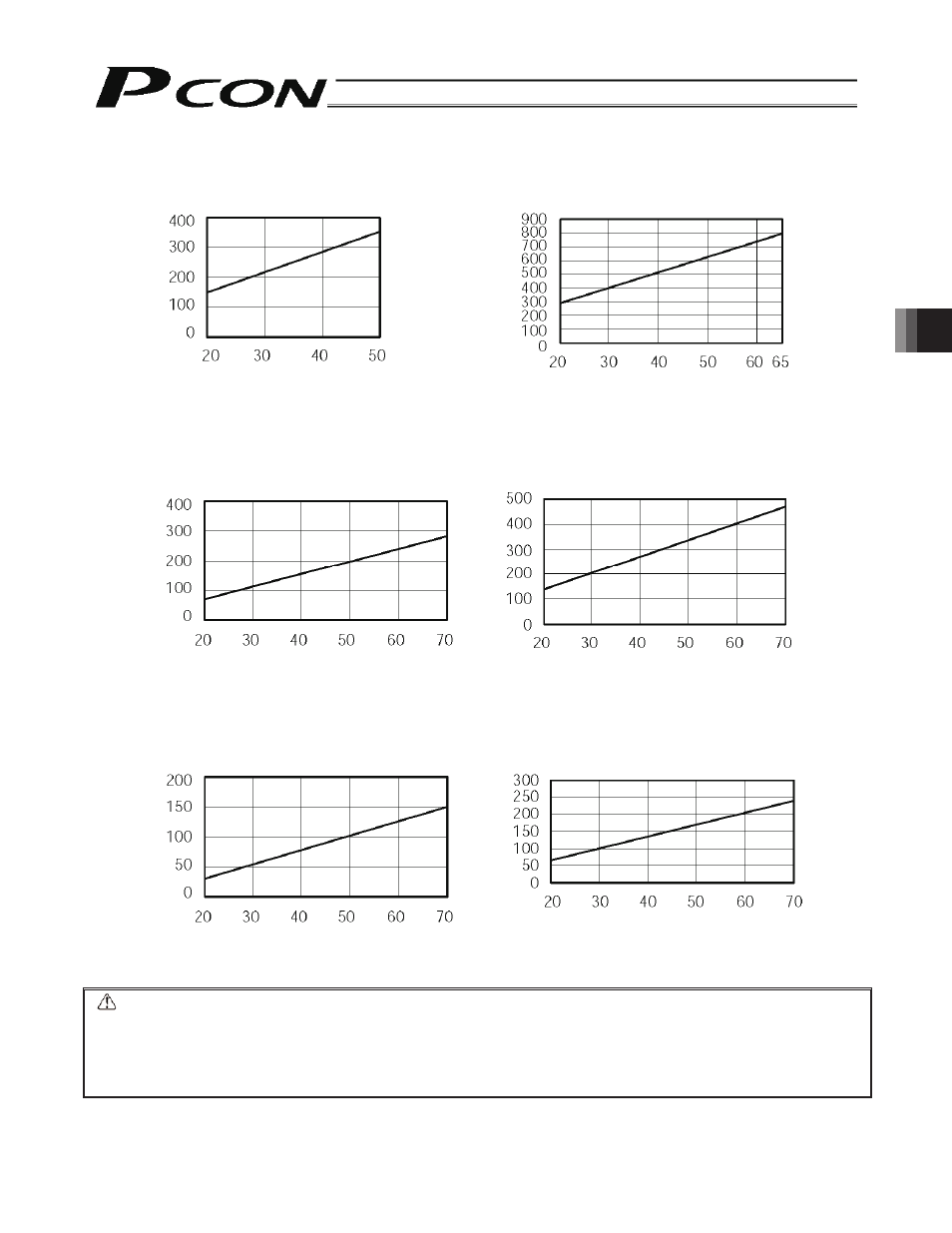

Push force (N)
Push force (N)
Push force (N)
Push force (N)
Push force (N) Push force (N)
Medium-speed type
(lead: 5 mm)
Medium-speed type
(lead: 8 mm)
High-speed type
(lead: 10 mm)
High-speed type
(lead: 16 mm)
Current-limiting value (%)
Current-limiting value (%)
Current-limiting value (%) Current-limiting value (%)
Current-limiting value (%)
Current-limiting value (%)
