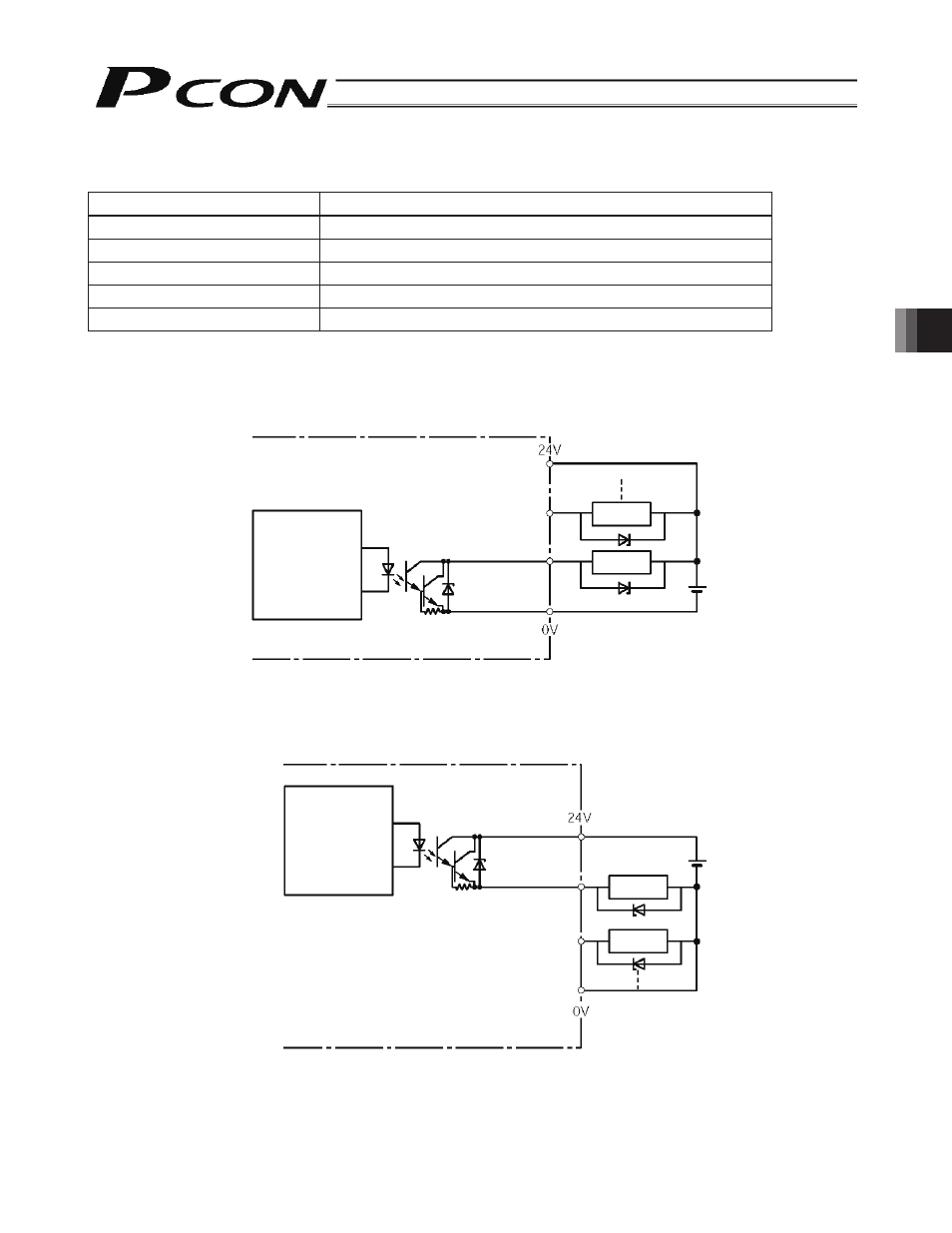

5. Operation Using I/O Signals
5.1.2
External Output Specifications
Item Specification
Number of input points
6 points
Rated load voltage
24 VDC
Maximum current
50 mA per point
Residual voltage
Max. 2 V
Insulation method
Photocoupler
Internal circuit configuration
[NPN specification]
[PNP specification]
Controller
Controller
+24-V external
power supply
+24-V external
power supply
Internal circuit
Internal circuit
Each output
Each output
Load
Load
Load
Load
