4. Position T

able Settings

(8) Zone

+/–

• This field defines the range within which the zone output signal turns ON during operation of the

standard type.

To increase flexibility, a different range can be set for each target position.

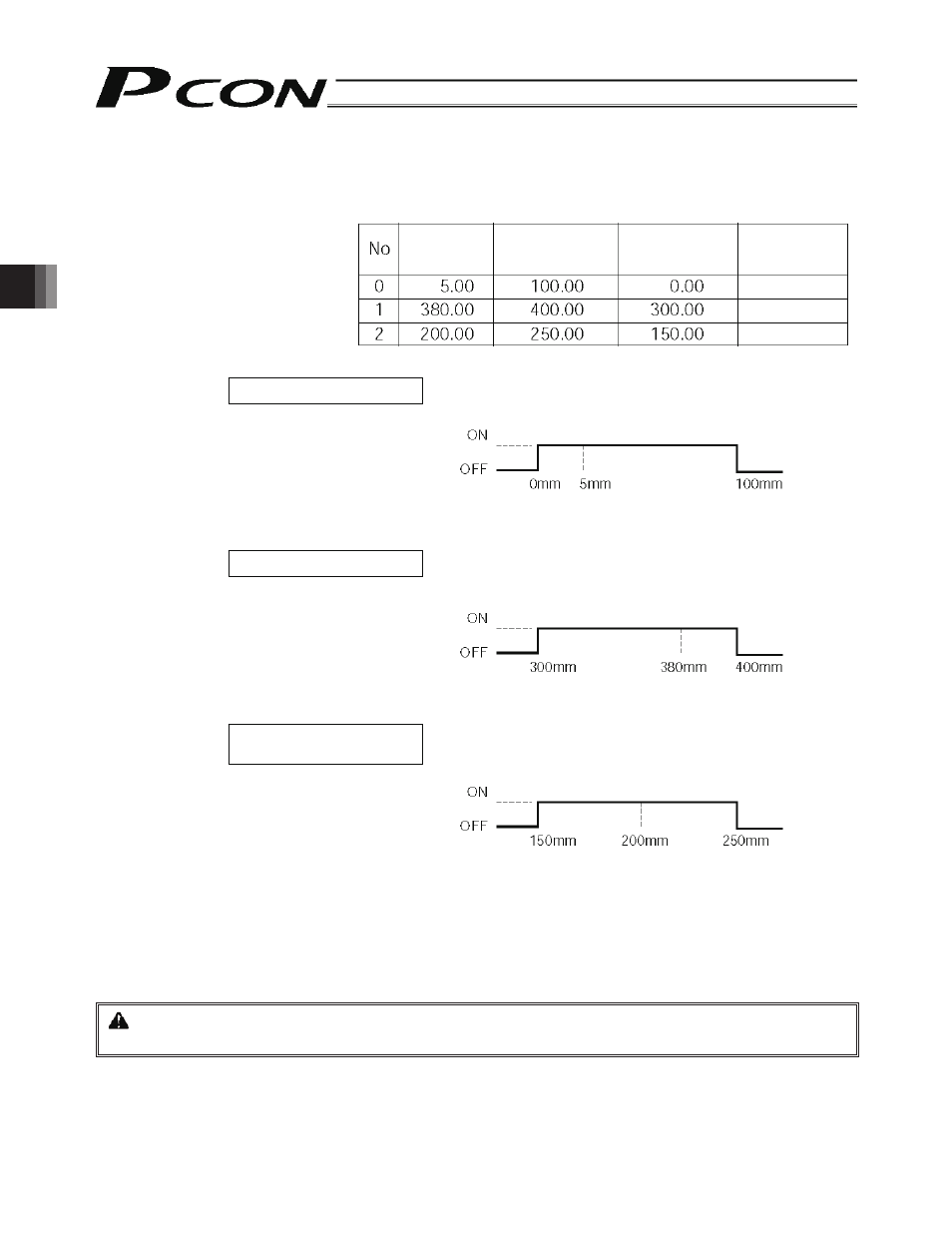

[Setting example]

(9) Acceleration/

deceleration
mode

• This field is not used with this controller.
The factory setting is “0.”

(10) Incremental

• This field defines whether to use the absolute mode or incremental mode.
The factory setting is “0.”
0: Absolute

mode

1: Incremental

mode

Warning: When using the proximity switch type, be sure to specify the absolute mode. If the incremental mode is

specified, a position data error will occur.

(11) Command mode

• This field is not used with this controller.
The factory setting is “0.”

Position

Zone +

Zone –

Comment

[mm] [mm]

[mm]

Rear end

Front end

Intermediate point

Move command to the rear end

Move command to the front end

Move command to the

intermediate point

Zone output signal

Rear e

Front end

Intermediate

point

Home

+ side limit
