7.3 Parameter Display, Select (setup) and Data Edit Operation
All 8 Parameter sets can be setup using the programmer. Press the [MODE] button to select the
Parameter Display mode. Use [
 ] and [  ] keys to select the desired parameter.
Downloading via the MNR Software can be accomplished anytime the unit is in the Ready State.
This is accomplished by the software, which disables the nutrunner operation during
programming.
Cursor
Enter
Displayed when parameter data is modified at edit
mode.
Parameter will not update without confirmation.
7.3.1 Parameter Select (setup) Mode
Press the [SET] buttons to initiate the Parameter Select mode. Immediately after the select mode
is initiated, a blinking number will appear in the [PARM] display.
When the cursor is in the [PARM] display, the settings can be changed from 01 ~ 08 with the
[
 ] and [  ] keys. Data corresponding to the selected parameter number will be displayed in the
[DATA] display.
The cursor (blinking digits) will move to the next character to the right in [D-NO] after the [SET]
button is pressed.
Use [
 ] and [  ] buttons to select the desired Data number.
The [DATA] characters will display the actual value of the [D-NO] as it is currently set.
Press the [SET] button to enter into the Data Edit mode on the indicated D-NO. you want to
change. (See 7.3.3 for detail)
The preset values are not arranged in a perfect sequence and some numbers may be skipped.
When scrolling the DATA numbers, it will scroll to the next existing value in the same or the
following parameter number.

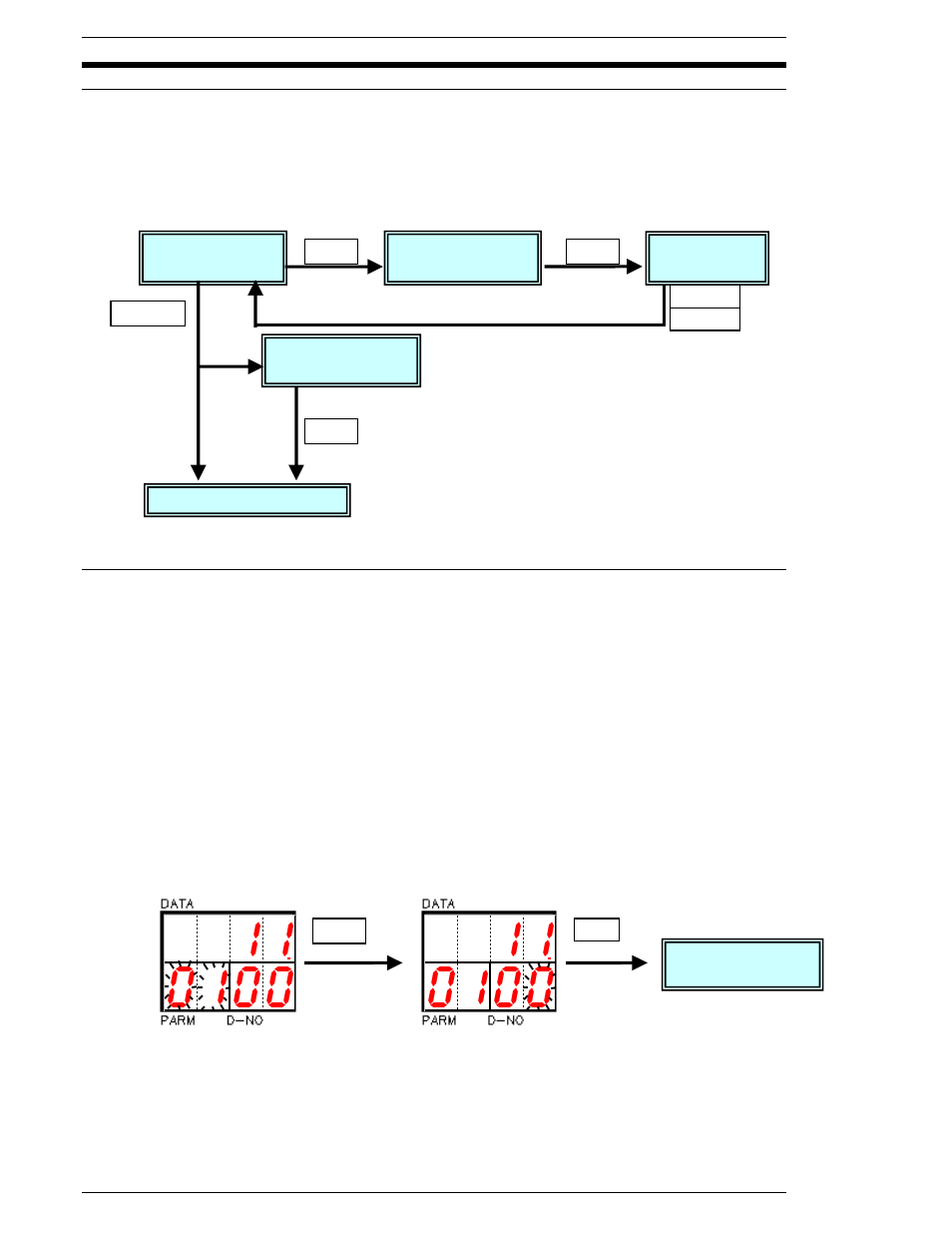

Parameter Select Data Number Select
Parameter
Display Mode
Parameter
Select Mode
Data Edit
Mode
Parameter Edit
Confirmation [Y/N]
RS-232c Display Mode
SET SET
SET
MODE
MODE
SET
SET
Parameter Edit
Operation
SET
