4.7 Tool Connection
{ Tools are connected to the MNR controller using one cable (Cable supplied standard with
each spindle). One cable contains the motor, resolver and torque transducer signal cables.
Cable should be securely tightened to the motor to insure complete connection.
{ If cable ties are required, cable ties should be loose enough to allow the cable to move, but yet
hold it in place. Cable ties too tight cause a stress point leading to premature cable failure.
WARNING: Use cylinder cushions or shock absorbers to decelerate the tool head motions
and prevent excessive (hard stop) vibration, especially in short cycle time applications
operating at high speeds. Repeated shock (over time) could damage a tool.
WARNING: Do not make motor connections with the power on. Turn off all controller
power before attempting to connect or disconnect any motor cables or tool damage may
occur.
Tool Cable Assembly- # E0431000A Nominal OD = 9mm (.35 ”) Min. Bend Radius = 4.0“
Cable length: 3 meter
Maximum Cable Length: 3 Meter

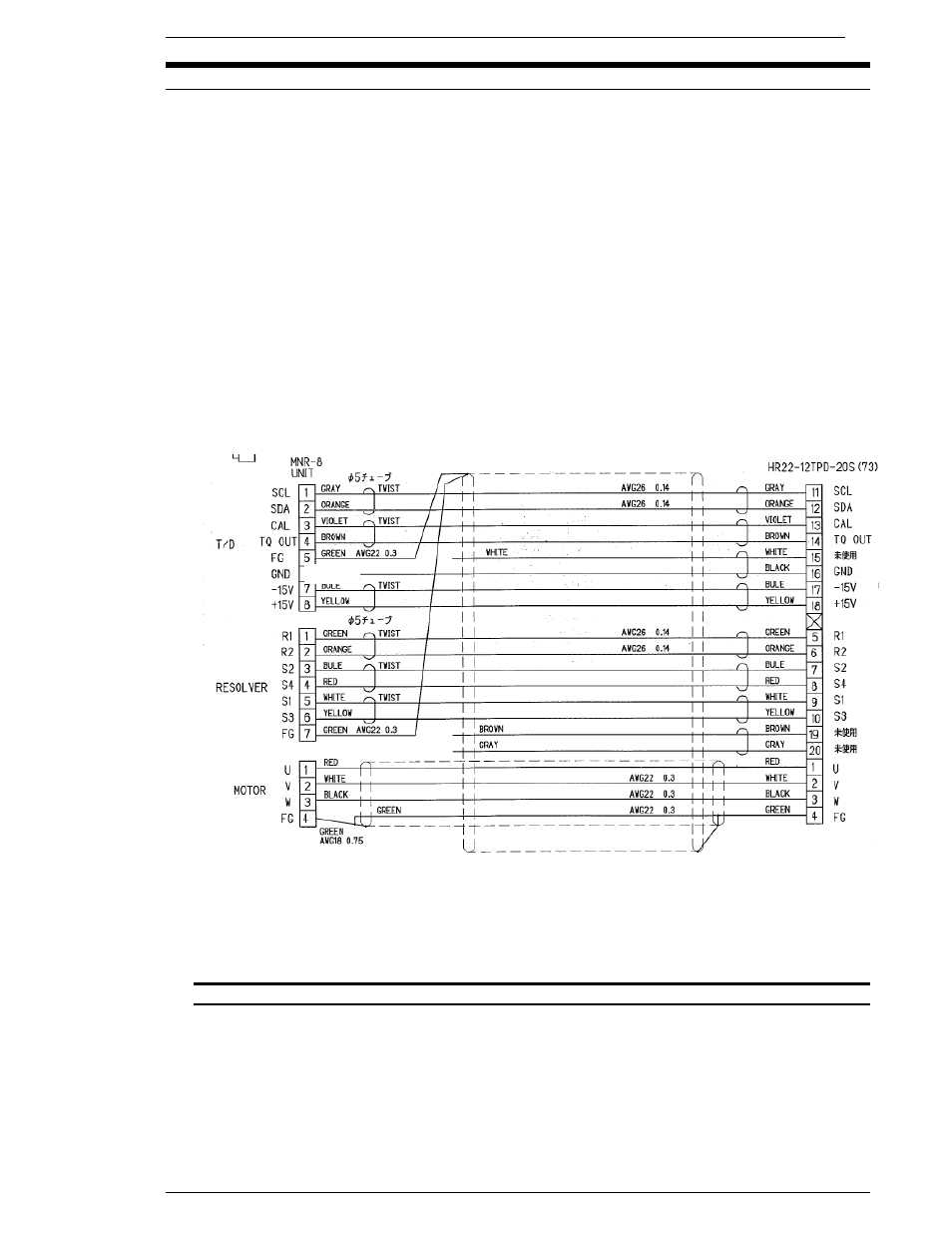

FIG. 4-7 Tool Cable Wiring Diagram
