Chapter 7: System Operations
Page 7-10
7.2.3 Fastening Results Display Mode.
In Fastening Results Display mode, when [D-NO] shows _0 ~

), data can be obtained by
pressing the [  ] and [  ] keys to scroll the [D-NO] until the desired DATA item is displayed. The
following information will be displayed in the [DATA] display section for the displayed [D-NO]:
D-NO DATA Unit
_0 Peak Torque Value (Judgment torque value) * Nm
_1 Final Angle Value deg
_5 Cycle Time Sec
=5
Cause of Fastening stop
No data /Reversed
Abnormal
Reject
Accept
Stop
=6 Torque final Judgment (Left digit) tq H/L
Torque peak Judgment (Right digit) tq H/L
See below
=7 Angle Judgment An H/L See below
=9 Time Judgment (Left digit) ti H/L
Rundown revolution (Right digit) ti H/L
See below
 4 Final Torque Value * Nm

6

Maximum Current value A

Rundown revolution # of Rev
* Unit of measure for Torque can be Nm, Kgm, Kgcm, Ftlb or Inlb

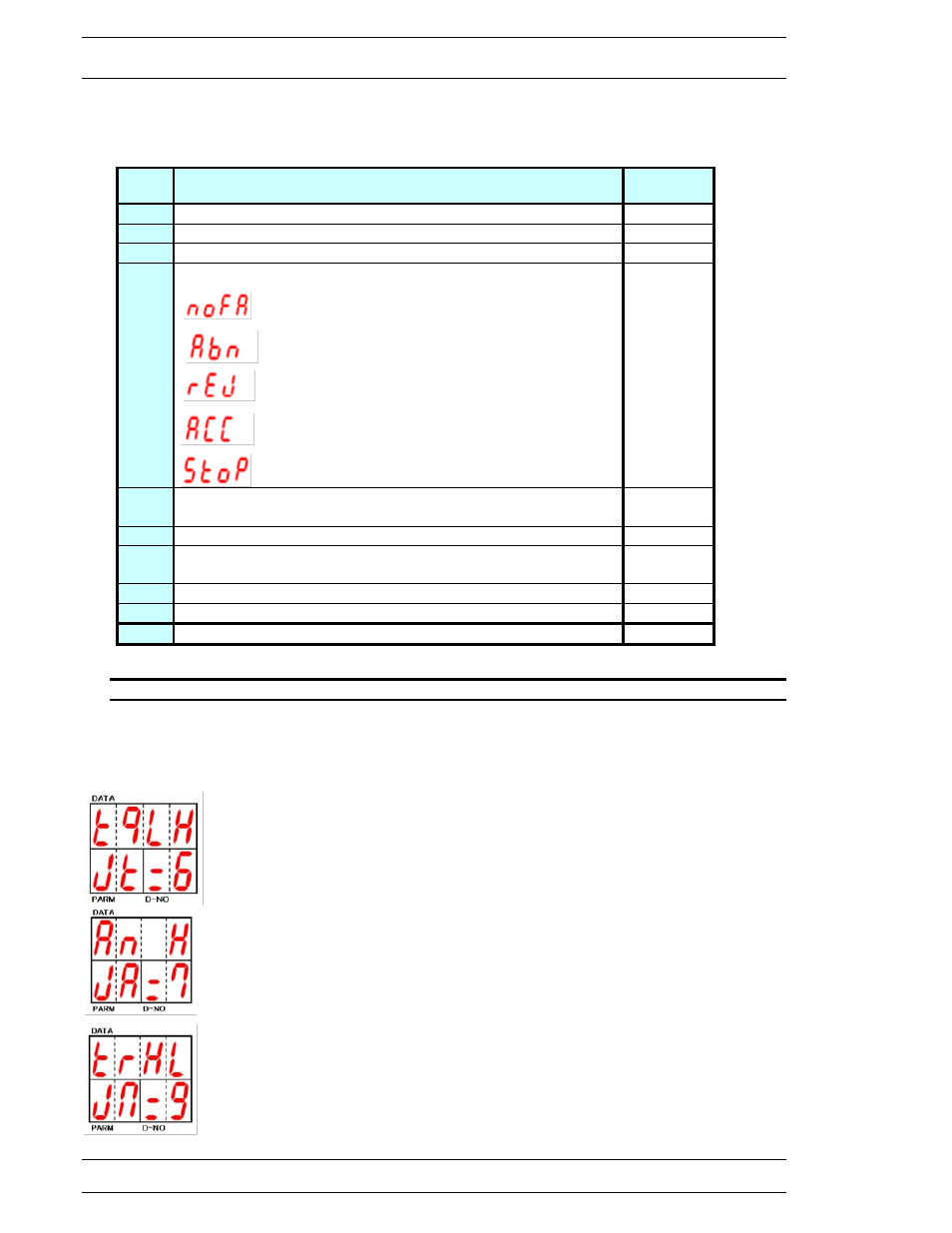

FIG. 7-2-3 Fastening results display selection
Judgment display
On items where a judgment is displayed (=6, =7 & =9), the judgment (H or L) will be displayed in the
right most 2 digits of the DATA display.
Final Torque (left digit) / Peak Torque (right digit) judgment.
Judgment display showing Final Torque Low (L) and Peak Torque High (H).
Angle judgment
Judgment display showing Angle High (H).
Time (left digit) / Rundown Revolutions (right digit) judgment.
Judgment display showing Time High (H) and Rundown Revolutions Low (L).
