Chapter 4: System Setup and Wiring
Page 4-2
4.1 Component Dimensions
The specifications for all of the Micro NR standard system equipment is outlined in this Chapter to
aid in determining space, mounting and wiring requirements.
4.1.1 MNR Controller Unit Dimensions

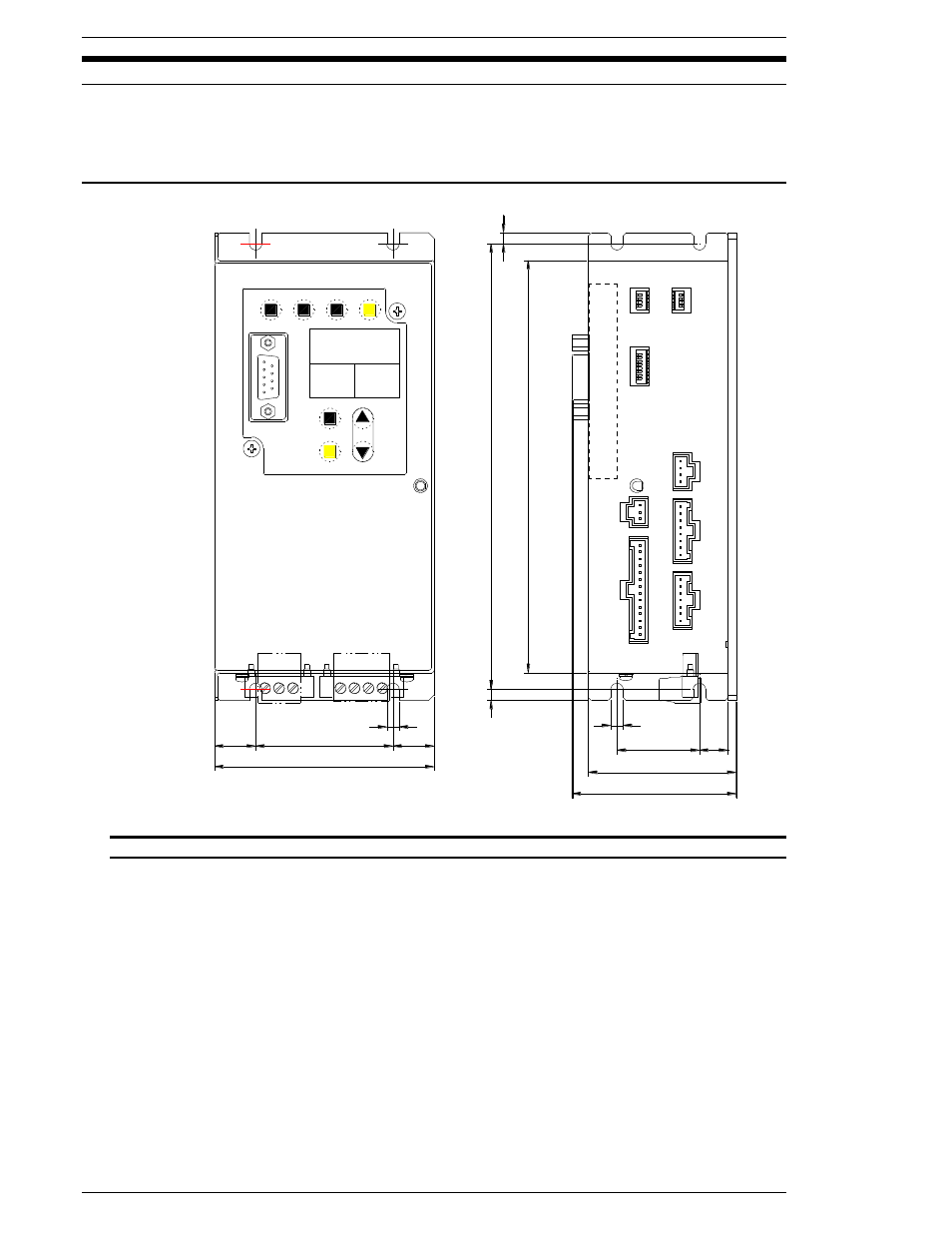

FIG. 4-1-1 MNR Controller Unit Dimensions
Note: Dimensions shown in millimeters.
The Unit(s) must be mounted with a minimum clearance of 50 mm on each side to allow for
proper heat dissipation and cable connections clearance.
MNR Units must be located at a minimum 300 mm from any high transient voltage power source.
High transient sources such as relays, AC contactors, AC motor drives, etc. may cause
malfunction of the MNR unit.
All motor cables and I/O cables must be run separate from all high transient voltage sources.
When locating inside an enclosure, avoid mounting at or near the top where internal enclosure
heat is most extreme.
4
16
2
4.5
15 50 15
80
53.8
(60)
10.4 30
4.5
4
15
0
START REV. CAL RESET
DATA
PARM. D-NO.
MODE
SET
RS232C
SAN3-DP2
DATA
