4.1.2 Tool
Tool dimensions and mounting specifications are critical in determining the design of the tool
mounting plate. Provide adequate clearance to ensure that tool assemblies do not come in
contact with any object. Failure to provide adequate clearance may result in torque inaccuracies
in the monitoring capability of the system or possible damage to the tool assembly.

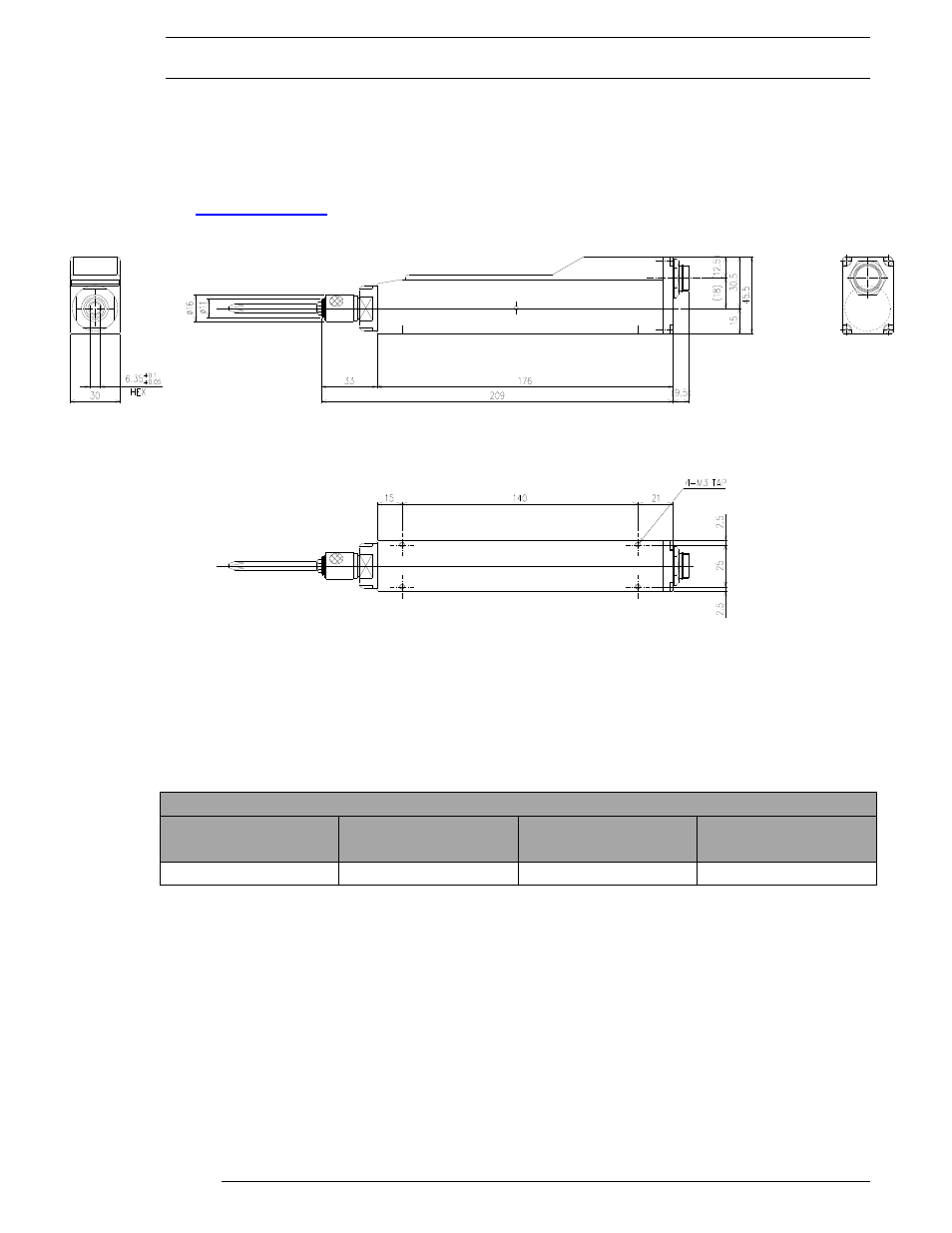

Outline drawing Files of the tool are available via FEC Inc. website -
r by contacting FEC Inc. directly.
Dimensions shown in millimeters (mm)
For overall length with cable, add 95mm for cable connection (209mm + 95mm)
Note: Philips Bit shown in drawing above not included
Tool Information
Tool Model
Torque
(Full Scale)
Speed
(Max RPM)
Weight
MFT-080M10-S
0.8Nm (7.08inlb.)
1100
605gram (1.33lb)
WEIGHT CONVERSION GUIDE: 1 gram = .0022 lb
TORQUE CONVERSION GUIDE: 1NM = 8.85 in lb.
DIMENSIONAL CONVERSION GUIDE: 1mm = 25.4 Inch. Where noted
– mm (Inch)
