Chapter 3: System Description
Page 3-8
3.3.5 Cable Connection to Front Display
9-Pin to 25-Pin cable example
1. Connection using DTR signal
D-Sub 9-Pin Socket Cable Drawing D-Sub 25-Pin Pin
MNR
TD 3 ------------------------------------------------- 3 RD
RS232C RD 2 Serial device
CTS 8 ------------------------------------------------- 20 DTR
GND 5 ------------------------------------------------- 7 GND
2. Connection for outputting unconditionally after fastening
D-Sub 9-Pin Socket Cable Drawing D-Sub 25-Pin Pin
MNR
TD 3 ------------------------------------------------- 3 RD
RS232C RD 2 Serial device
RTS 7 -----
CTS 8 ----- (Pin 7 & 8 are jumpered)
GND 5 ------------------------------------------------- 7 GND

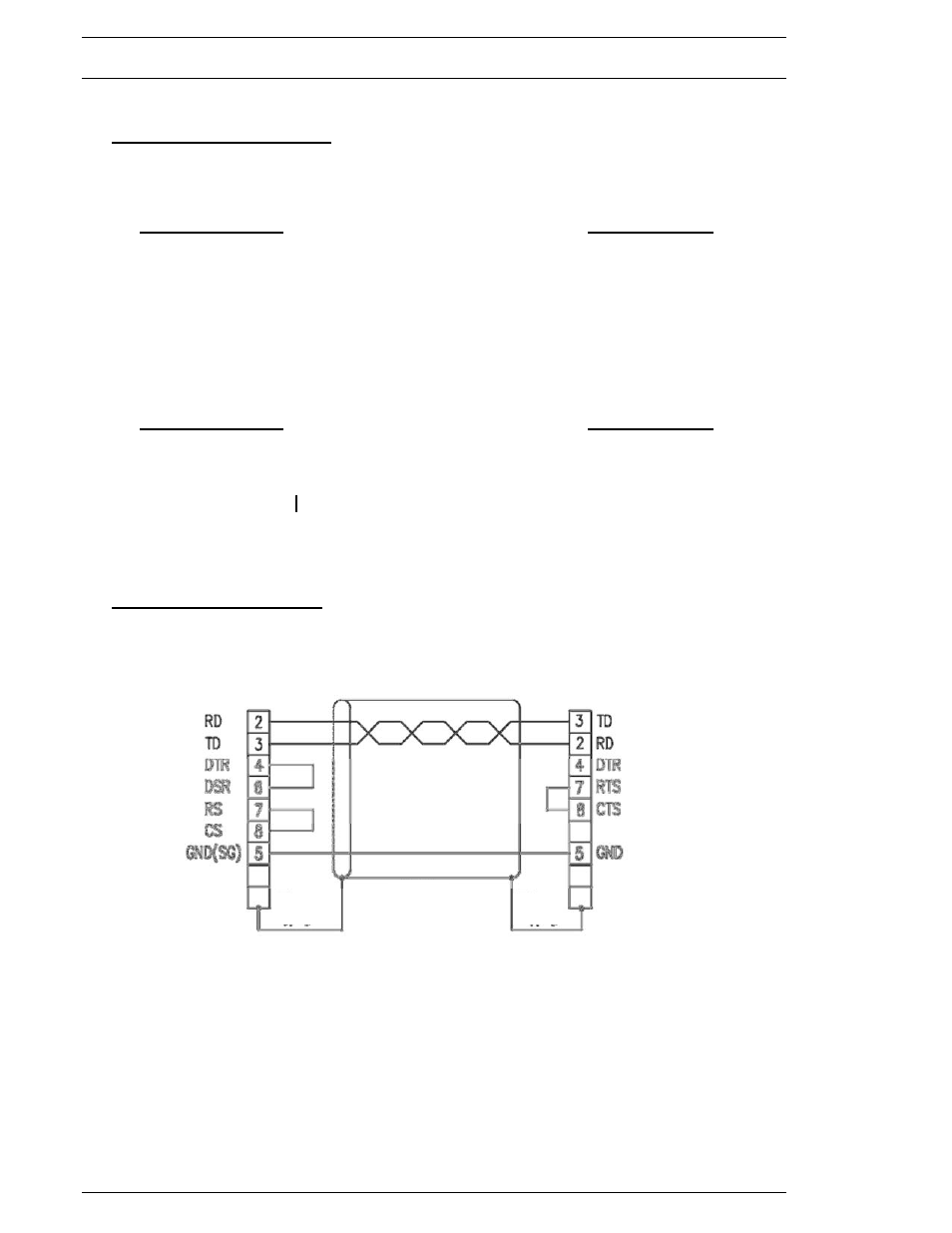

9-Pin to 9-Pin cable example
Device Side MNR Controller Side
(PLC, Computer, etc)
