Chapter 3: System Description

Page 3-2

3.1

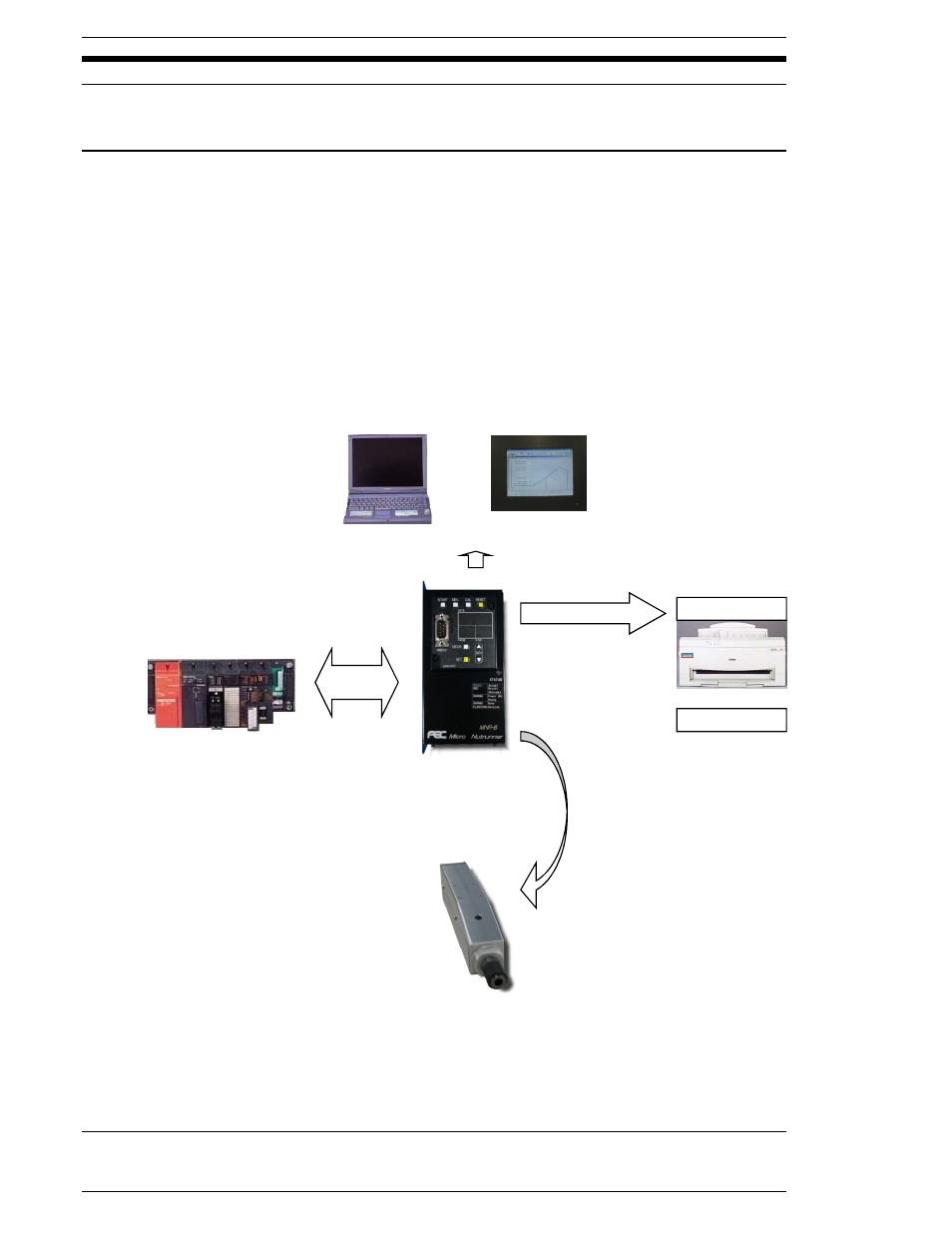

System Block Diagram

3.1.1 System Block Diagram Description

{

Spindle programming / monitoring is accomplished through either a detachable Laptop PC or

an embedded HMI PC, running the MNR User Console software package.

{

A keypad/display on each MNR Unit can be used to monitor the individual spindle status.

{

Discrete 24 VDC (Sinking or Sourcing) I/O on the MNR unit provides direct communications

with the PLC for limited individual spindle control.









































Discrete
PLC I/O.

User Console HMI

Embedded

Serial Output (1) Ports

Serial Printer

Misc. Serial Device

User Console

Detachable Laptop

OR
