FEC Micro Nutrunner Operations Manual Chapter 6: Fastening Instructions (Rev. 2: 02/12)
Page 6-5

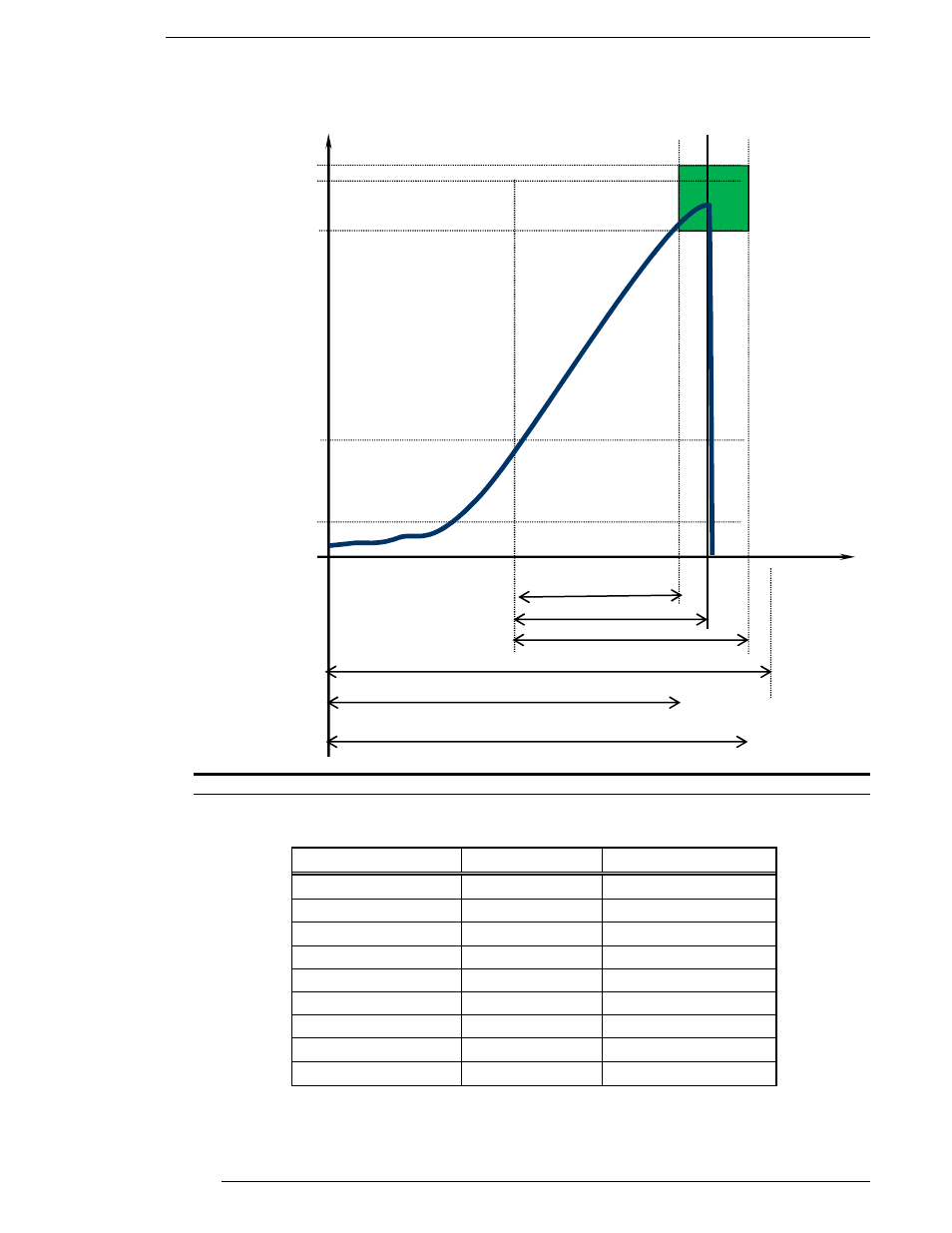

FIG. 6-1-2a Angle Control Functions for One-Step Fastening
MNR unit display User console display
Peak Torque YES YES
Final Angle YES YES
Final Torque YES YES
Cycle Time YES YES
Peak Current YES YES
Rundown Revolutions YES YES
Snug Torque NO YES
TD Origin Voltage NO YES
TD CAL Voltage NO YES
13: Standard Torque
Angle/Time
14: Speed Change Torque
16: Snug Torque
Torque
12: Peak torque High Toque High
11: Peak Torque low
20: Angle low limit
22: Standard Angle
21: Angle High limit
42: Final time High limit
68: Rundown revolution low limit
69: Rundown revolution high limit
