7.2.1 STATUS display
Non-fastening Status display

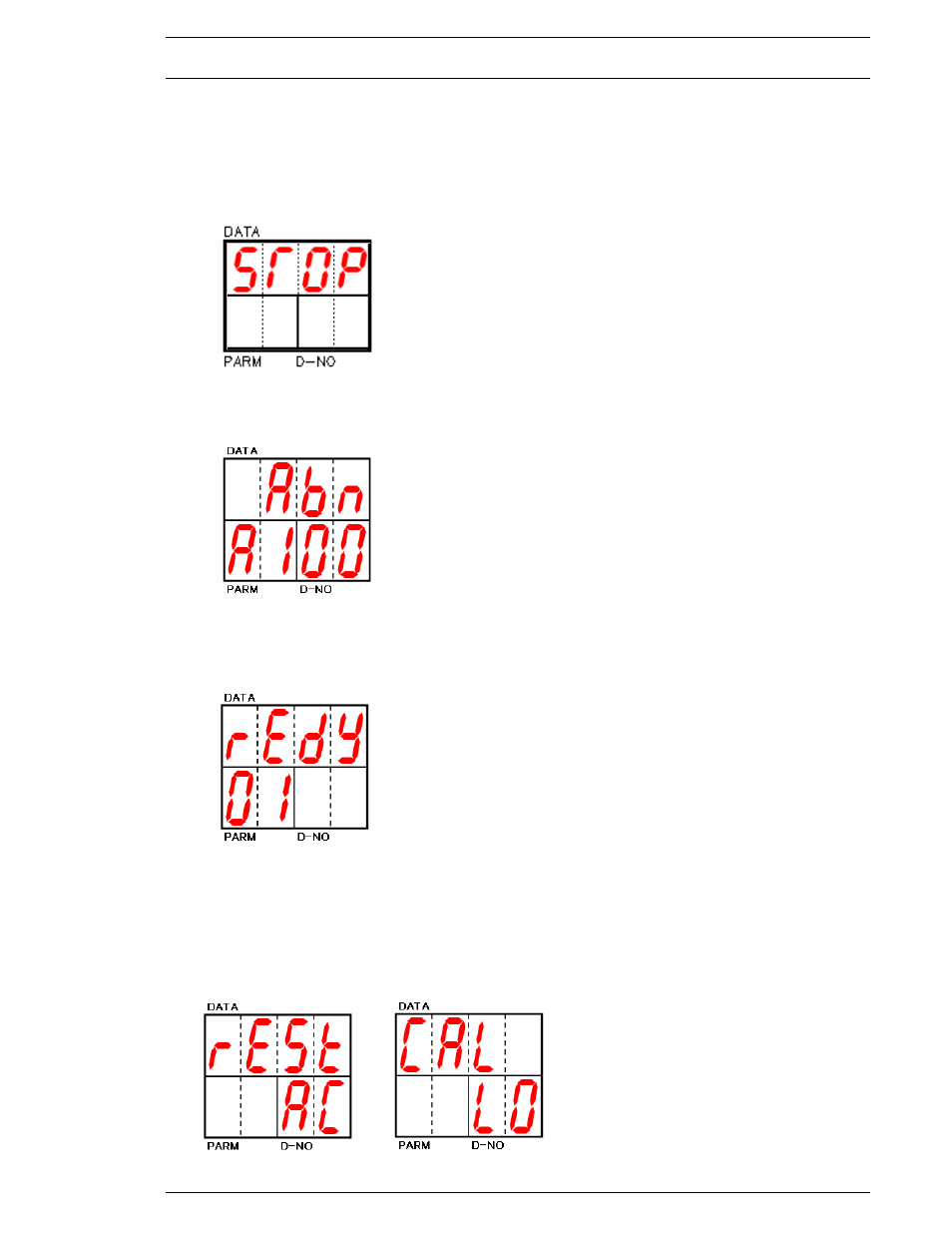

Various types of non-Fastening Results STATUS can be displayed.
1) When the STOP signal is activated (signal goes low):
The DATA display will indicate when the STOP signal has halted the MNR Unit as shown in the
figure.
2) When an ABNORMAL condition occurs the [PARM] display will show a flashing "A" character
followed by a number that represents the Abnormal number code. The [D-NO] displays a number
that represents the SERVICE CODE NUMBER or SUB Code. (Refer to chapter 9)
3) When the system is Ready for operation the DATA display will show the characters “rEdY. This
signifies that the system is idle and ready or capable of receiving an input signal from external
equipment (IE: PLC, Switch box, etc.). The active parameter number will be shown in the [PARM]
display.
4) When the RESET pushbutton is pressed the DATA
display will show the characters “rESt”. The
I/O will be reset and a Zero Level Check will be performed and the results will be displayed in the
[D-NO] area. When the CAL pushbutton is pressed the DATA display will show the characters
“CAL”. A CAL Check will be performed and the results will be displayed in the [D-NO] area.
■ Reset signal received ■ CAL check
Zero Level Accepted LOW Reject
