Table 3-3. oPEr Menu Selections
Prompt Description Dft
Etr Easy-Tune Reset Time
Resultant reset time value
calculated by Easy-Tune. (It is
enabled with conF-oPr-EZ.E.) 0.0
Etd Easy-Tune Derivative Time
Resultant derivative time value
calculated by Easy-Tune. (It is
enabled with conF-oPr-EZ.E.) 0.0
Table 3-4. Operator Enable (oPr) Prompts
(conF Menu → oPr Module)
Prompt Description (see Datalink prompts) Dft
di7.E Discrete Input 7 Enable
Selections are as follows:
on: When selected, di7 appears in
the oPEr menu.
oFF: When selected, di7 does not
appear in the oPEr menu. on
di8.E Discrete Input 8 Enable
Selections are as follows:
on: When selected, di8 appears in
the oPEr menu.
oFF: When selected, di8 does not
appear in the oPEr menu. on
StP.E StEP
Selections are as follows:
on: When selected, StEP appears
in the oPEr menu.
oFF: When selected, StEP does not
appear in the oPEr menu. on
Ai.E Analog Inputs Enable
Selections are as follows:
on: When selected, the Ai7 and
Ai8 prompts appear in the
oPEr menu.
oFF: When selected, the Ai7 and
Ai8 prompts do not appear in
the oPEr menu. on
ALM.E Alarm Indicators Enable
Selections are as follows:
on: When selected, the PL1, PL2
and Adb prompts appear in
the oPEr menu.
oFF: When selected, the PL1, PL2
and Adb prompts do not
appear in the oPEr menu. on
Pid.E Pid (Pb, tr, and td Enables)
Selections are as follows:
on: When selected, the Pb, tr, td,
and Mr prompts appear in the
oPEr menu.
oFF: When selected, the Pb, tr, td,
and Mr prompts do not
appear in the oPEr menu. on
Table 3-4. Operator Enable (oPr) Prompts
(conF Menu → oPr Module)
Prompt Description (see Datalink prompts) Dft
hLc.E oh, oL, and cZ Enables
Selections are as follows:
on: When selected, the oh, oL,
and cZ prompts appear in the
oPEr menu.
oFF: When selected, the oh, ol,
and cZ prompts do not
appear in the oPEr menu. on
EZ.E EZ?, EPb, Etr, and Etd Enables
Selections are as follows:
on: When selected, the EZ?, EPb,
Etr, and Etd prompts appear in
the oPEr menu.
oFF: When selected, the EZ?, EPb,
Etr, and Etd prompts do not
appear in the oPEr menu. on
3.9 Display Alphanumerics
Figure 3-12 illustrates all of the alphanumeric char-
acters that can appear in the display prompts.

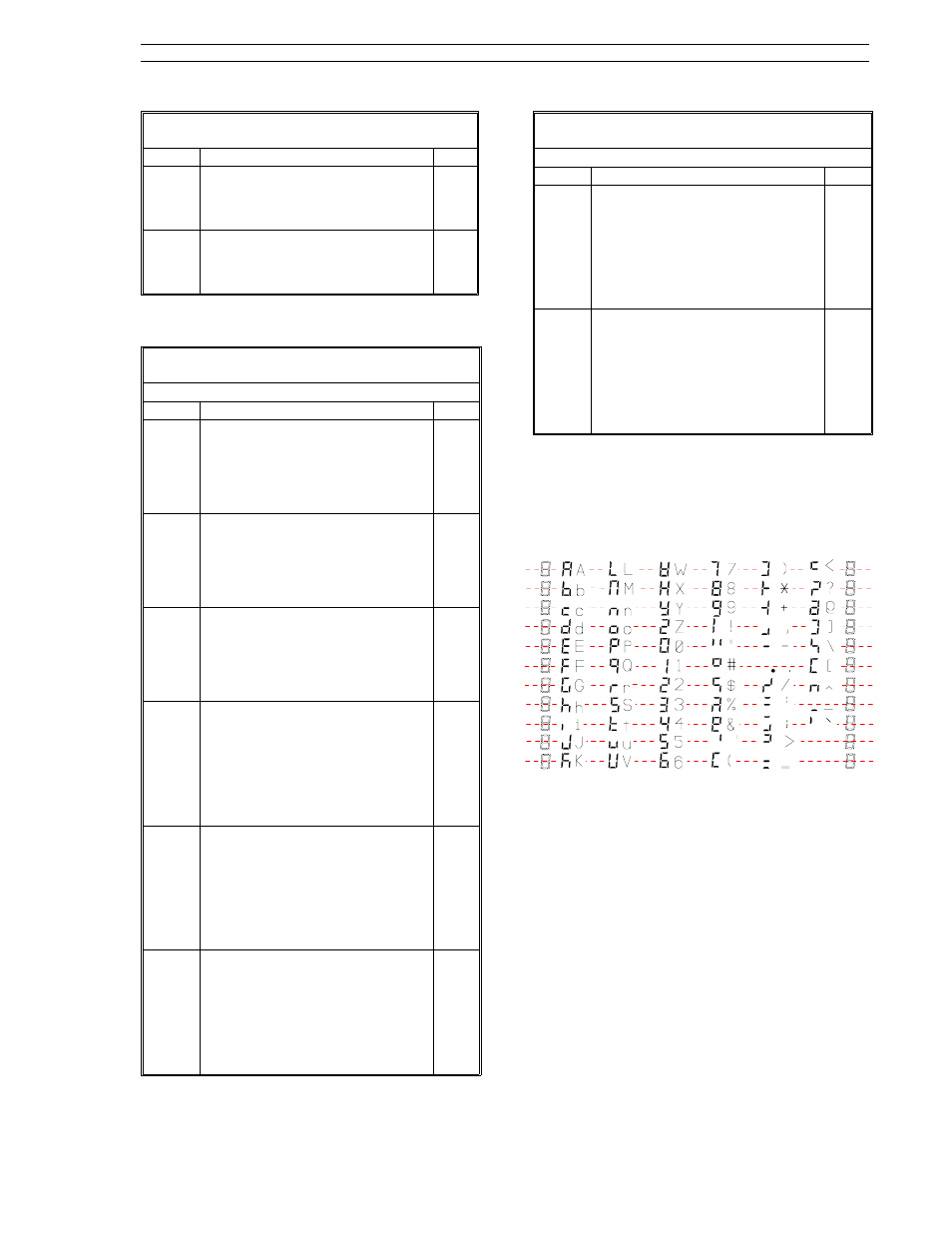

Figure 3-12. Display Alphanumerics
3.10 Engineer Mode Summary
To facilitate configuration of the controller parame-
ters and path connections, all of the engineer mode
prompt paths are illustrated in Figure 3-13.
Section 3. Display Panel 53SL6000 Instruction Manual
3-11
