Item/LED Off On Blink-
ing
Description
8 - R X Remote/Ratio.
X Remote requested, but
not granted (Remote
Enable [RE] not true).
9 - L X Local Setpoint.
X Setpoint is tracking the
SP tracking signal.
3 - A1
4 - A2 X No alarm.
X Alarm active.
24 - Watch-
dog X Normal operation.
X Out of service.
21 - Loop 1 X Loop 1 selected (cASc,
L.LiM, h.LiM).
22 - Loop 2 X Loop 2 selected (cASc,
L.LiM, h.LiM).
23 - Easy-
Tune X Not running Easy-Tune.
X Failed Easy-Tune.
X Running Easy-Tune.
14 - Auto X In Auto.
X Auto requested but not
granted - (Auto Enable
[AE] not true.)
15 - Manual X In Manual.
X Output is tracking the
Force Output signal.
18, 19 -
MS1, MS2 Alternately on/off for time proportioned
or three step output.
Item SnGL
Control
cASc Control L.LiM/h.LiM Control in.Ld
PV(1)=PV/PV1 Secondary (L1) Primary (L2) Primary (Loop 1) Limiting (Loop 2)
1 PV dro PV dro PV dro PV dro PV dro PV(1) dro
2 PV bar PV bar PV bar PV bar PV bar PV(1) bar
3 PV Alarm 1 status PV Alarm 1 status PV Alarm 1 status PV Alarm 1 status PV Alarm 1 status PV(1) Alarm 1
4 PV Alarm 2 status PV Alarm 2 status PV Alarm 2 status PV Alarm 2 status PV Alarm 2 status PV(1) Alarm 2
5 Setpoint* dro Setpoint* dro Setpoint dro Setpoint* dro Setpoint dro Auto/PV2 dro
6 Setpoint bar Setpoint bar Setpoint bar Setpoint bar Setpoint bar Auto/PV2 bar
7 R/L pb R/L pb N/A R/L pb N/A N/A
8 Remote LED Remote status N/A Remote status N/A N/A
9 Local LED Local status N/A Local status N/A N/A
10 SP Up pb SP Up pb SP Up pb SP Up pb SP Up pb N/A
11 SP Down pb SP Down pb SP Down pb SP Down pb SP Down pb N/A
12 Out dro Out dro Out dro Out dro Out dro Auto/PV2 Xmt dro
13 Auto/Manual pb Auto/Man. pb Auto/Man. pb Auto/Man. pb Auto/Man. pb Auto/Manual pb
14 Auto LED Auto status Auto status Auto status Auto status Auto status
15 Manual LED Manual status Manual status Manual status Manual status Manual status
16 Decrease Out pb Decr. Out pb Decr. Out pb Decr. Out pb Decr. Out pb Decrease Out pb
17 Increase Out pb Incr. Out pb Incr. Out pb Incr. Out pb Incr. Out pb Increase Out pb
18 Multistate 1 Multistate 1 N/A Multistate 1 N/A Multistate 1
19 Multistate 2 Multistate 2 N/A Multistate 2 N/A Multistate 2
20 Mode pb Mode pb, Loop 1/2 Select pb Mode pb, Loop 1/2 Select pb Mode pb
21 N/A Loop 1 select Loop 1 select N/A
22 N/A Loop 2 select Loop 2 select N/A
23 Easy-Tune status N/A
24 Watchdog condition indicator
*Ratio based on conF-cn.1-SPM setting.

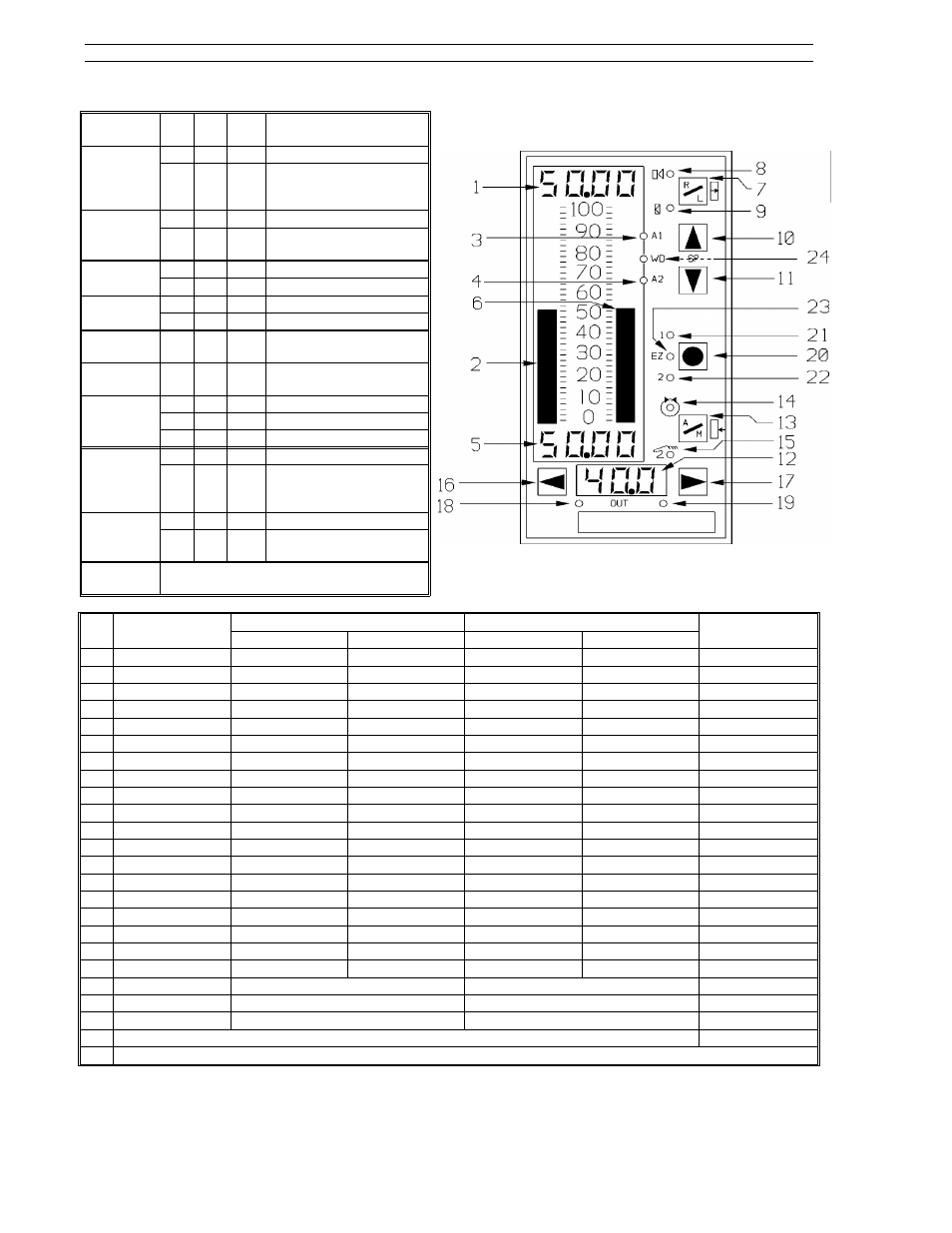

Figure 3-2. Operator Mode Display Panel Summary
53SL6000 Instruction Manual Section 3. Display Panel
