[0]: Logic level zero.
0.0: The value zero.
0.05: Digital filter in seconds.
0.1: Digital filter in seconds.
0.3: Digital filter in seconds.
0.6: Digital filter in seconds.
0.7: Digital filter in seconds.
0 to 13: Characterizer step mode list.
0-20: 0-20 mA input.
0 to 31: Instrument addresses 0 to 31.
0-80: 0-80 millivolt universal Ai option.
0-5V: 0-5 volts analog input.
[1]: Logic level one.
1.0: The value one.
1.5: Digital filter in seconds.
1.8: Digital filter in seconds.
1-5V: 1-5 volts analog input.
3.1: Digital filter in seconds.
3SEG: Segment third order polynomial.
3TrM: 3 wire RTD.
4.2: Digital filter in seconds.
4-20: 4-20 mA input.
4TrM: 4 wire RTD.
6.3: Digital filter in seconds.
9.0: Digital filter in seconds.
10c: 10 ohm copper RTD.
12.7: Digital filter in seconds.
18.6: Digital filter in seconds.
25.5: Digital filter in seconds.
37.2: Digital filter in seconds.
51.1: Digital filter in seconds.
53c: 53 ohm copper RTD.
75.0: Digital filter in seconds.
100c: 100 ohm copper RTD.
102: Digital filter in seconds.
110: 110 baud.
100n: 100 ohm nickel RTD.
120n: 120 ohm nickel RTD.
150: Digital filter in seconds.
205: Digital filter in seconds.
300: 300 baud.
300: Digital filter in seconds.
410: Digital filter in seconds.
600: 600 baud.
600: Digital filter in seconds.
819: Digital filter in seconds.
1200: 1200 baud.
1200: Digital filter in seconds.
1638: Digital filter in seconds.
2400: 2400 baud.
4800: 4800 baud.
9600: 9600 baud.
14.4K: 14,400 baud.
19.2K: 19,200 baud.
28.8K: 28,800 baud. Adb: Alarm deadband.
Ai: Analog input module.
Ai1: Analog input 1 value.
Ai2: Analog input 2 value.
Ai3: Analog input 3 value.
Ai4: Analog input 4 value.
Ai5: Analog input 5 value.
Ai6: Analog input 6 value.
Ai7: Analog input 7 value.
Ai8: Analog input 8 value.
Ai.1: Analog input 1 module.
Ai.2: Analog input 2 module.
Ai.3: Analog input 3 module.
Ai.4: Analog input 4 module.
Ai.E: Enable oPEr Ai7 and Ai8 access.
AiX: Alarm index.
ALG: Algebraic function.
ALM.E: Enable oPEr alarm access.
And: A AND B logic function.
/And: NOT (A AND B) logic function.
And/: A AND (NOT B) logic function.
APLd: Easy-Tune auto parameter load.
Ao: Analog output module.
Ao1: Analog output value 1.
Ao2: Analog output value 2.
Ao3: Analog output value 3.
Ao1.i: Analog output 1 input selector.
Ao2.i: Analog output 2 input selector.
Ao3.i: Analog output 3 input selector.
Ao.1: Analog output 1 module.
Aut: cn.1 auto status.
Aut.2: cn.2 auto status.
b1: Remote setpoint bias.
bASE: Current base (0/4-20 mA).
bAud: Datalink transfer rate.
b.cJc: CJC calibration constant.
biAS: Zero offset calibration constant.
bMV: Zero offset mv calibration constant.
b.tc: Thermocouple type B.
cASc: Cascade control scheme.
chr: Characterizer module.
chr.A: Characterizer A input selector.
chr.b: Characterizer b input selector.
chr.c: Characterizer c input selector.
chr.M: Characterizer mode selector.
cKEY: Configuration pass-key module
cM: Easy-Tune control mode.
cn.1: Control module 1.
cn.2: Control module 2.
conF: Configure menu.
cS: Control scheme module.
cSA: Control scheme analog A input.
cSb: Control scheme analog B input
cSc: Control scheme analog C input.
cSd: Control scheme analog D input.

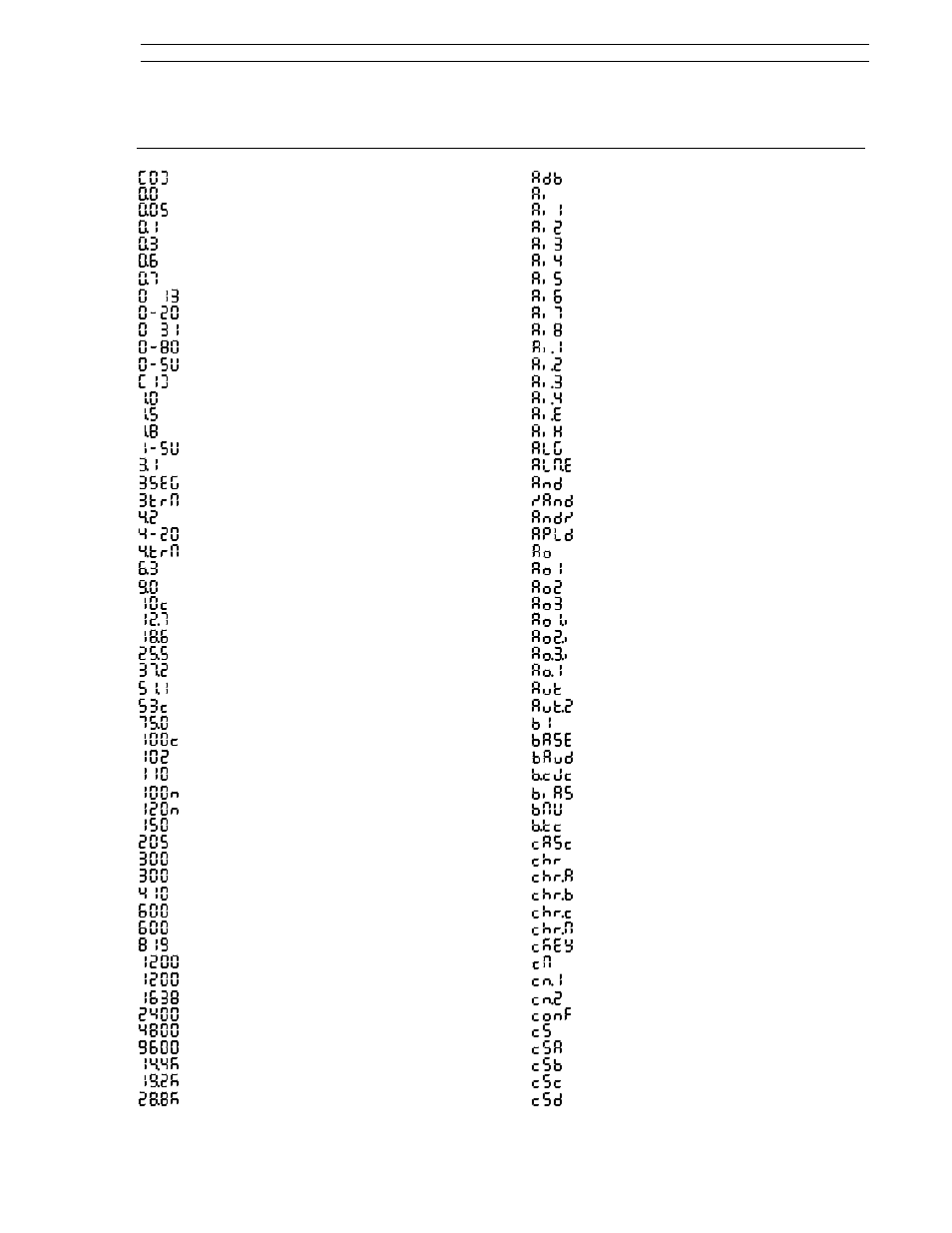

Appendix D: Prompt List
Appendix D. Prompt List 53SL6000 Instruction Manual
D-1
