22
1.7 Display Overview
Oscilloscope Display

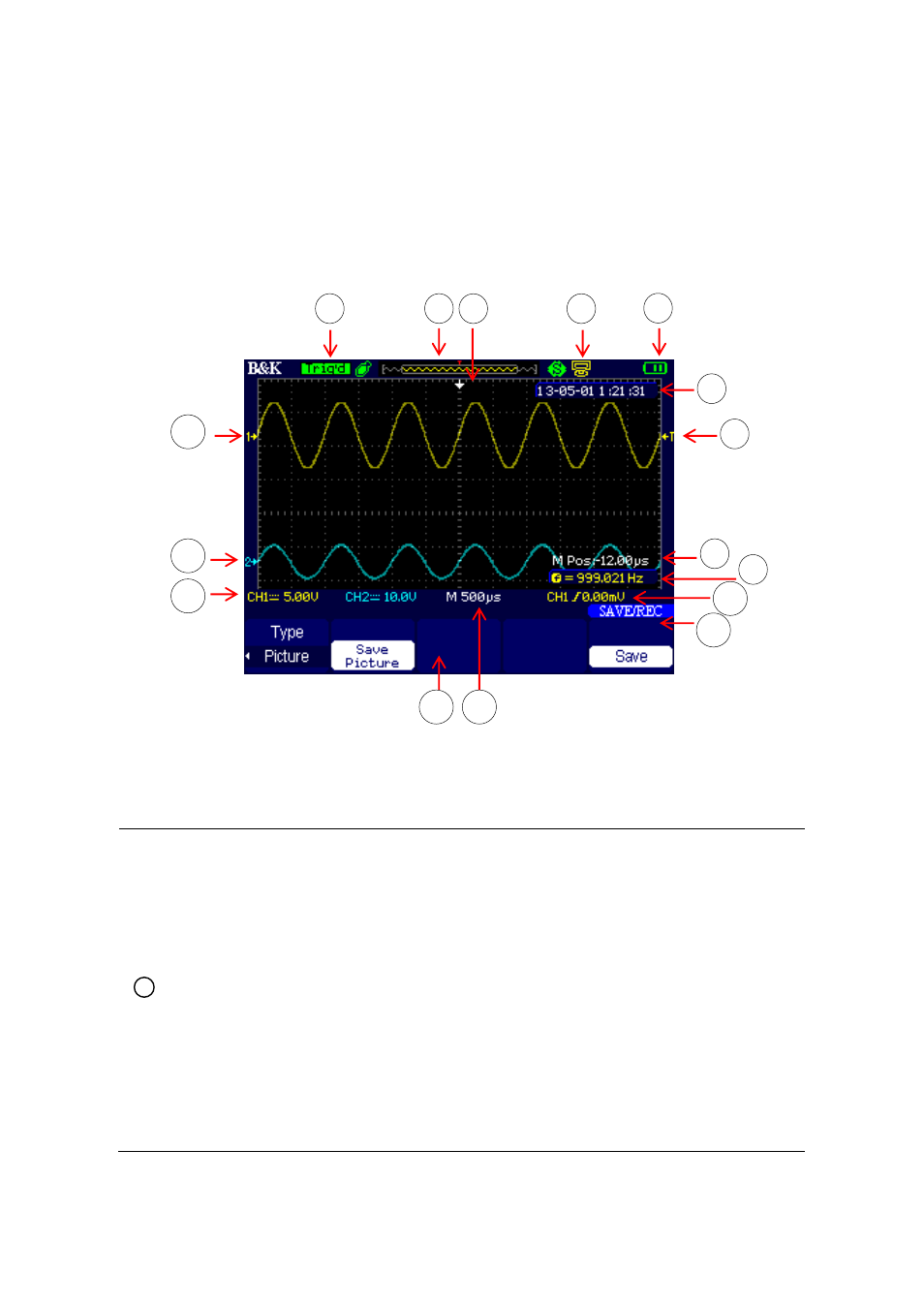

Figure 5 - Oscilloscope Display
Trigger status
 Armed – Instrument is acquiring pre-trigger data. All triggers
are ignored.
 Ready – All pre-trigger data has been acquired and the
instrument is ready to accept a trigger
 Trig’d – Instrument has triggered and is acquiring post-trigger
data
 Stop – Instrument has stopped acquiring waveform data
 Auto – Instrument is in auto mode and is acquiring
waveforms without trigger
 Scan – Instrument is acquiring and displaying waveform data
continuously. This mode is automatically set for when
1 2 3 4 5
6
7
8
9
10
11
12 13
14
15
16
1
