GE Industrial Solutions CPS6000-M2 User Manual
Page 86
CPS6000-M2 Installation Guide H5694720
Issue 8 January 2008
86
Home

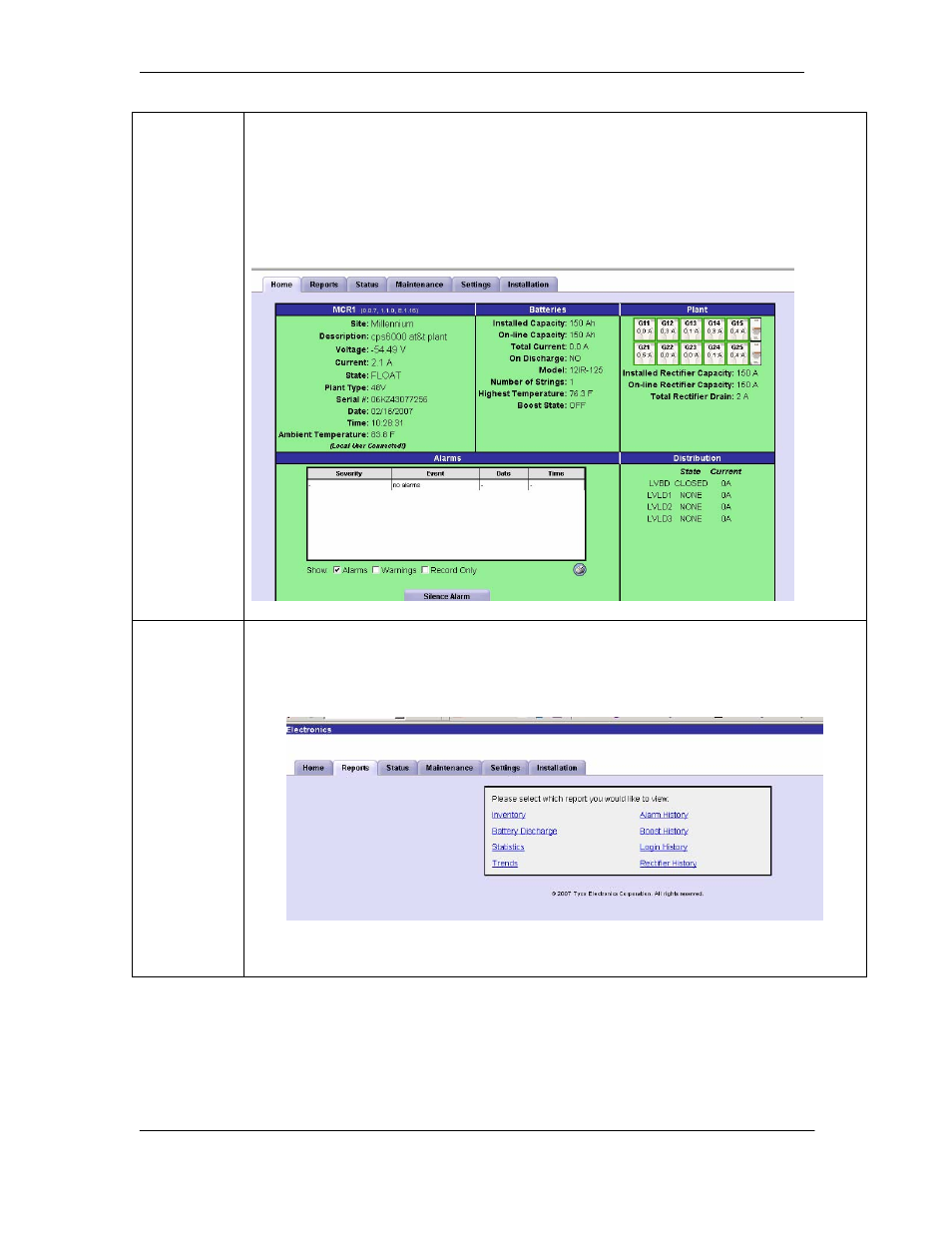

Main login page that shows representative graphic of the plant. The graphic will depict
the number of shelves, rectifiers in place with their appropriate outputs, empty slots, and
indicate which rectifiers are in alarm.
High-level summary for the Batteries, Distribution, Alarms present, and controller
summary are shown. There are also quick link tabs that take you to specific features.
These tabs are the Home, Reports, Maintenance, Settings, and Installation.
Reports
The reports tab displays reports that the system controller can display through web
pages. These reports include Event History, Inventory, Statistics, Trends, and Battery on
Discharge. Individual history groups like Alarm History, Boost History, Login History,
and Rectifier history are also available.
