CPS6000-M2 Installation Guide H5694720
Issue 8 January 2008
7
2 Product Description

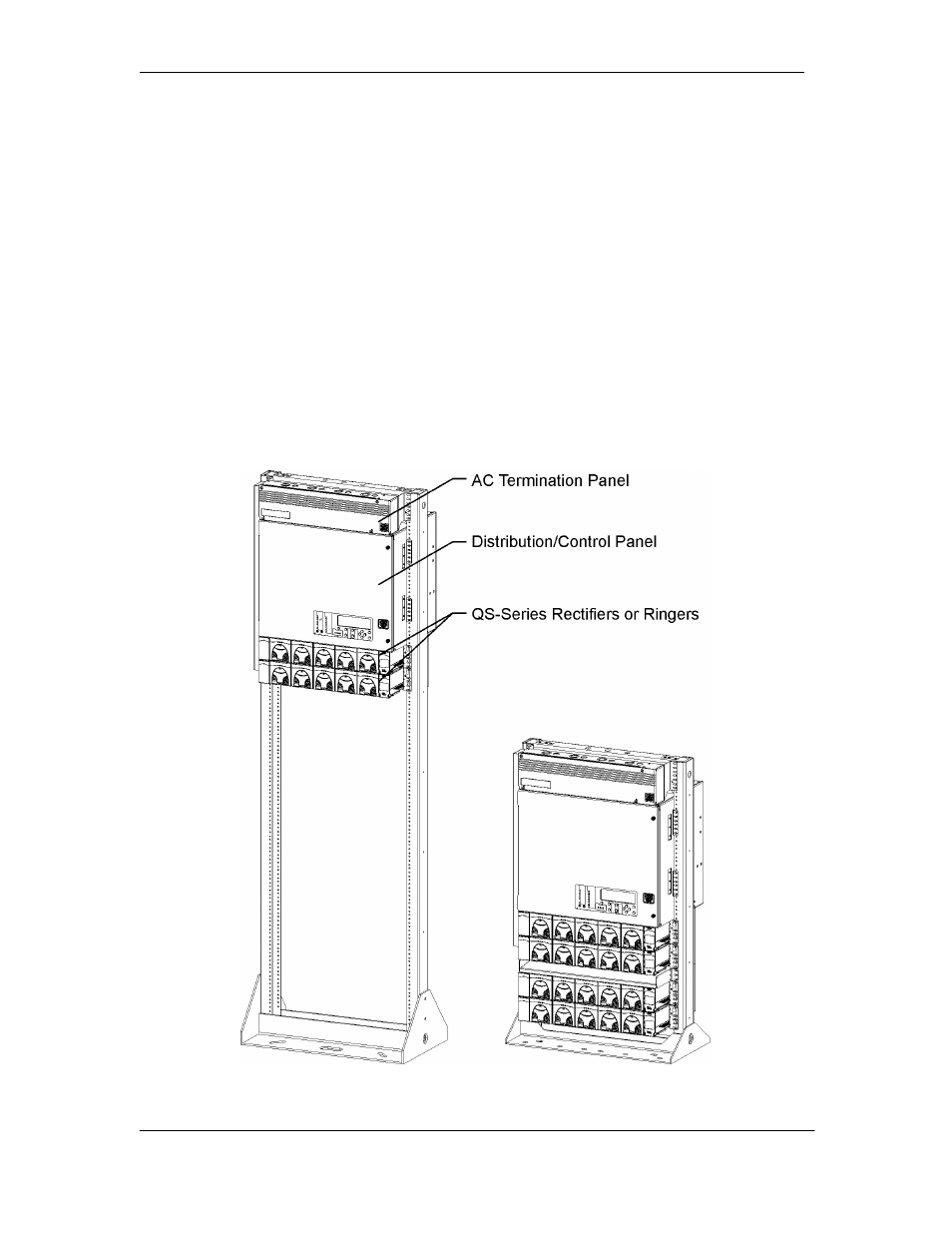

The 48V CPS6000-M2 Power Plant is a 23 inch wide, front access, frame mounted battery plant.
The system integrates QS series vertical airflow rectifiers and ringers, dc distribution options,
battery connections and the Galaxy Millennium II controller in 500A and 1000A capacity
systems. System dimensions are 25.5 inches wide, 15 inches deep and 29.8 inches tall (500A
system) or 38.5 inches tall (1000A system). This allows the system to be mounted in either a 42
inch (1/2 height) frame for mounting on a battery stand or Unigy battery stack or in a 7 foot (full
height) framework with battery trays.
The system operates directly from commercial power in 208/220/240Vac single phase @
50/60Hz. 110Vac operation is also available with some rectifiers. AC connects to a terminal
block panel at the top of the system.
