CPS6000-M2 Installation Guide H5694720
Issue 8 January 2008 15

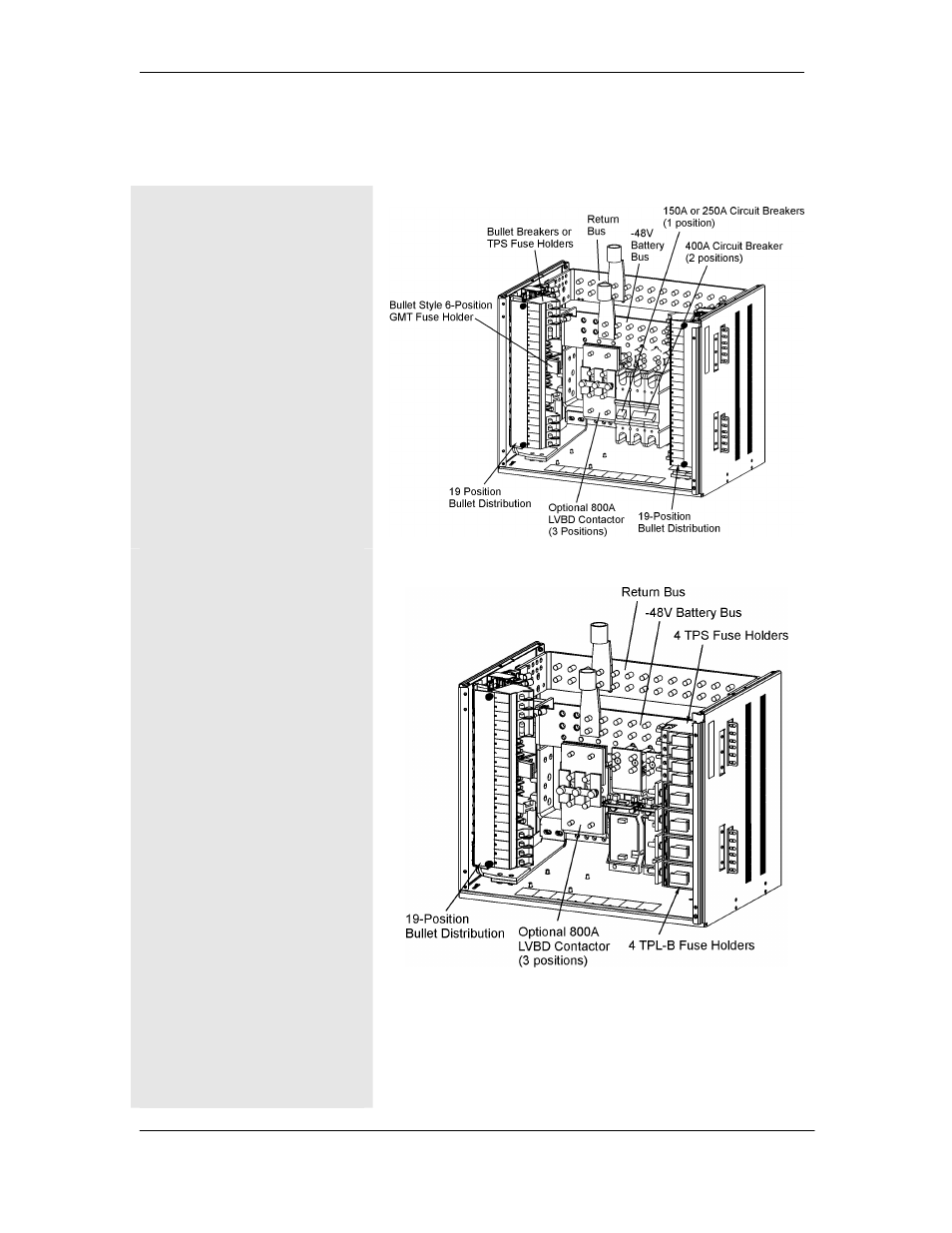

DC Distribution and Battery Termination
Group 660 Option
• Two 19 position bullet
distribution panels each
rated at 400A.
• 12 pair of battery landings
for battery cables up to
350Kcmil. (6 pair with
750Kcmil cable) 3/8” studs
on 1” centers
• 8 position center section for
optional 800A Low Voltage
Battery Disconnect
(LVBD), GJ type circuit
breakers with 25mV shunts
or TPL-C fuse blocks with
1500A, 50mV shunts.
Group 661 Option
• One 19 position bullet
distribution panel rated at
400A.
• One fuse panel rated at
600A equipped with 4 TPS
fuses with 100A, 50mV
shunt monitoring and 4
TPL-B fuses with 600A,
50mV shunt monitoring
• RPM shunt monitoring for
fuse panel and up to 4
center TPL-C fuse blocks
with 1500A, 50mV shunt
monitoring
• 12 pair of battery landings
for battery cables up to
350Kcmil. (6 pair with
750Kcmil cable) 3/8” studs
on 1” centers
• 8 position center section for
optional 800A Low Voltage
Battery Disconnect
(LVBD), GJ type circuit
breakers with 25mV shunt
or TPL-C fuse blocks with
1500A, 50mV shunt.
