CPS6000-M2 Installation Guide H5694720
Issue 8 January 2008 76

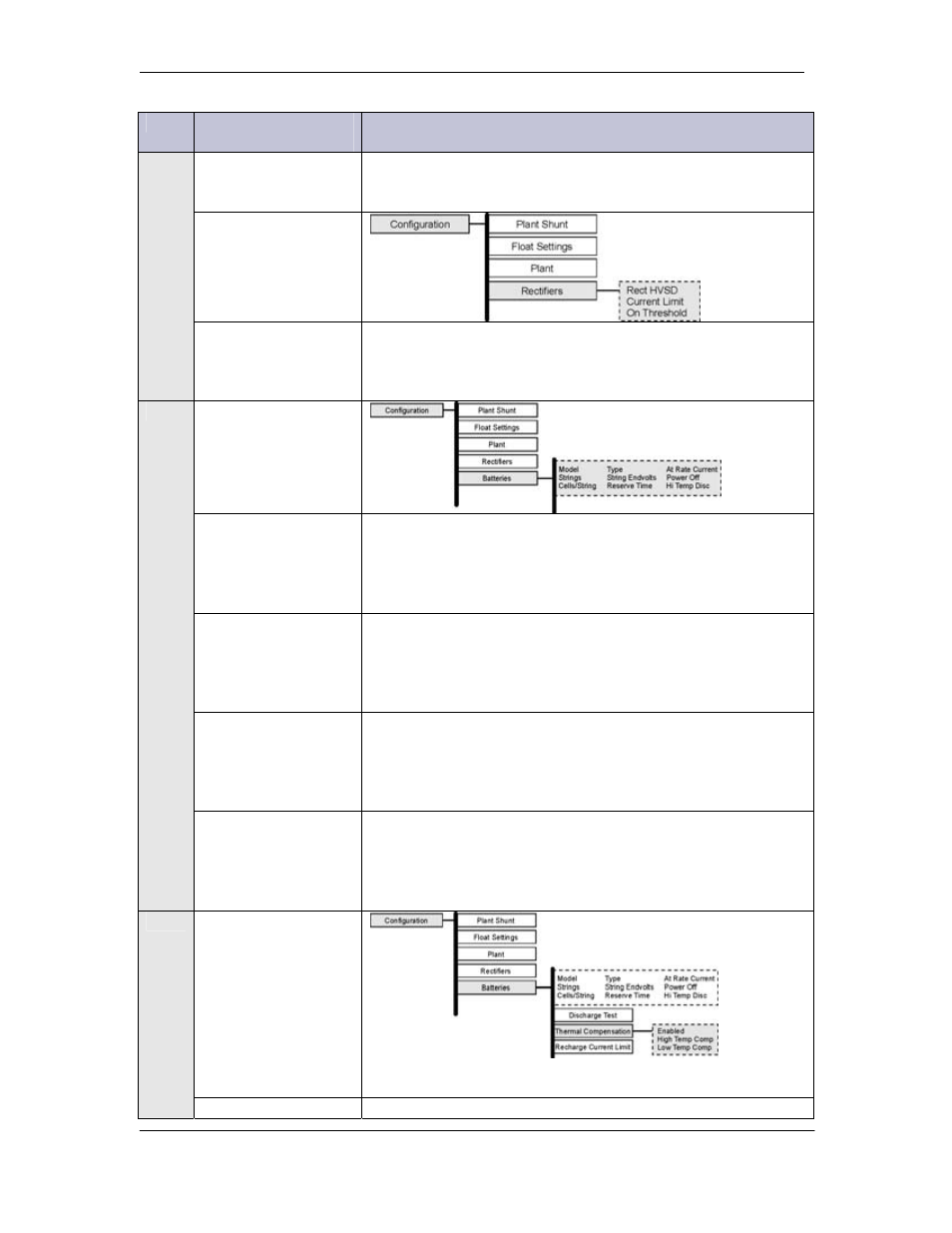

Step Configuration
Attribute to Change
Menu Path/Action
Set-point This value sets the system voltage for all serial rectifiers.
Move the cursor to the field and use the <+> or <-> key to
adjust the threshold value. Press to save the change.
HVSD The configuration of this field sets the internal high voltage
shutdown value of all serial rectifiers. Move the cursor to the
field and use the <+> or <-> key to adjust the threshold value.
Press to save the change.
Batteries
Model The configuration of this field selects the installed battery type
from a list of pre-defined battery types used in reserve time
prediction and enhanced battery test features. Move the cursor
to the field and use the <+> or <-> key to adjust the threshold
value. Press to save the change.
Strings The configuration of this field selects the number of battery
strings in the system. This parameter is used in reserve time
prediction and enhanced battery test features. Move the cursor
to the field and use the <+> or <-> key to adjust the threshold
value. Press to save the change.
Cells/String The configuration of this field selects the number of installed
cells in the battery strings. This parameter is used in reserve
time prediction and enhanced battery test features. Move the
cursor to the field and use the <+> or <-> key to adjust the
threshold value. Press to save the change.
6
Type The configuration of this field selects the battery type, Flooded
or Valve Regulated (sealed). This parameter is used in reserve
time prediction and enhanced battery test features. Move the
cursor to the field and use the <+> or <-> key to adjust the
threshold value. Press to save the change.
Thermal Comp
This feature allows dynamic control of sealed cell battery
voltage as a function of temperature.
7
Enabled Enables or Disables the Thermal Compensation Feature. Move
