GE Industrial Solutions CPS6000-M2 User Manual
Page 58

CPS6000-M2 Installation Guide H5694720
Issue 8 January 2008
58
Step
Action
2
3

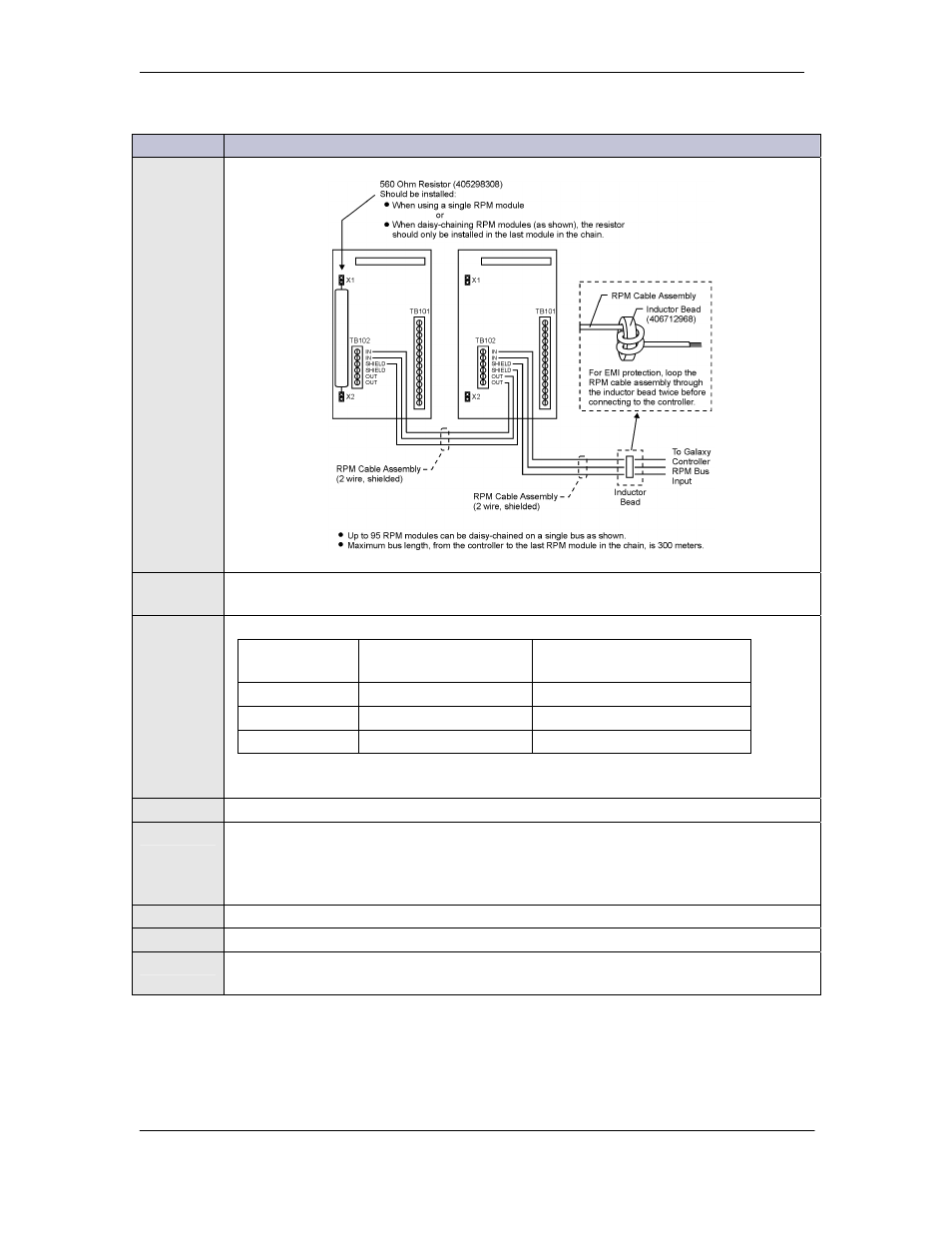

Secure the module connection unit and route the wires through the open-faced
bottom of the connection unit.
4
Make the connections to TB2 on the connection unit:
TB-2 Pin
RPM Conductor
Color
RPM Conductor
Description
IN
Blue or White
Power/Communications
OUT
Blue or White
Power/Communications
SHIELD Bare
wire
Shield
*connections of the bus wire are NOT polarity sensitive.
* there are 2 IN, and 2 OUT connections. Either one may be used.
5
Locate the control unit. This is the half with circuitry on it.
6
Each RPM must have a unique switch address to be recognized by the controller. In
the lower right hand side of the control unit (inside), are two rotary switches. Set
SW-1 (LO) to 1. The module will be recognized as 01 by the controller. Other
modules added cannot have the same address or 00 for the address.
7
Carefully attach the control unit to the connection unit using the ribbon connector.
Note
This connector/cable is not keyed, so be careful to line up the pins properly.
8
After approximately 1 minute, the green LED on the front of the module will blink
once approximately every 5 seconds.
