CPS6000-M2 Installation Guide H5694720
Issue 8 January 2008
74
Minimum Controller Configuration
The Millennium II controller’s primary user interface is the front panel, which includes a backlit
LCD, and an array of pushbutton controls. SW202-8 must be set to ENABLED for changes to be
made from the front panel. This section covers the basic operations that must be performed so
that the controller is minimally configured.

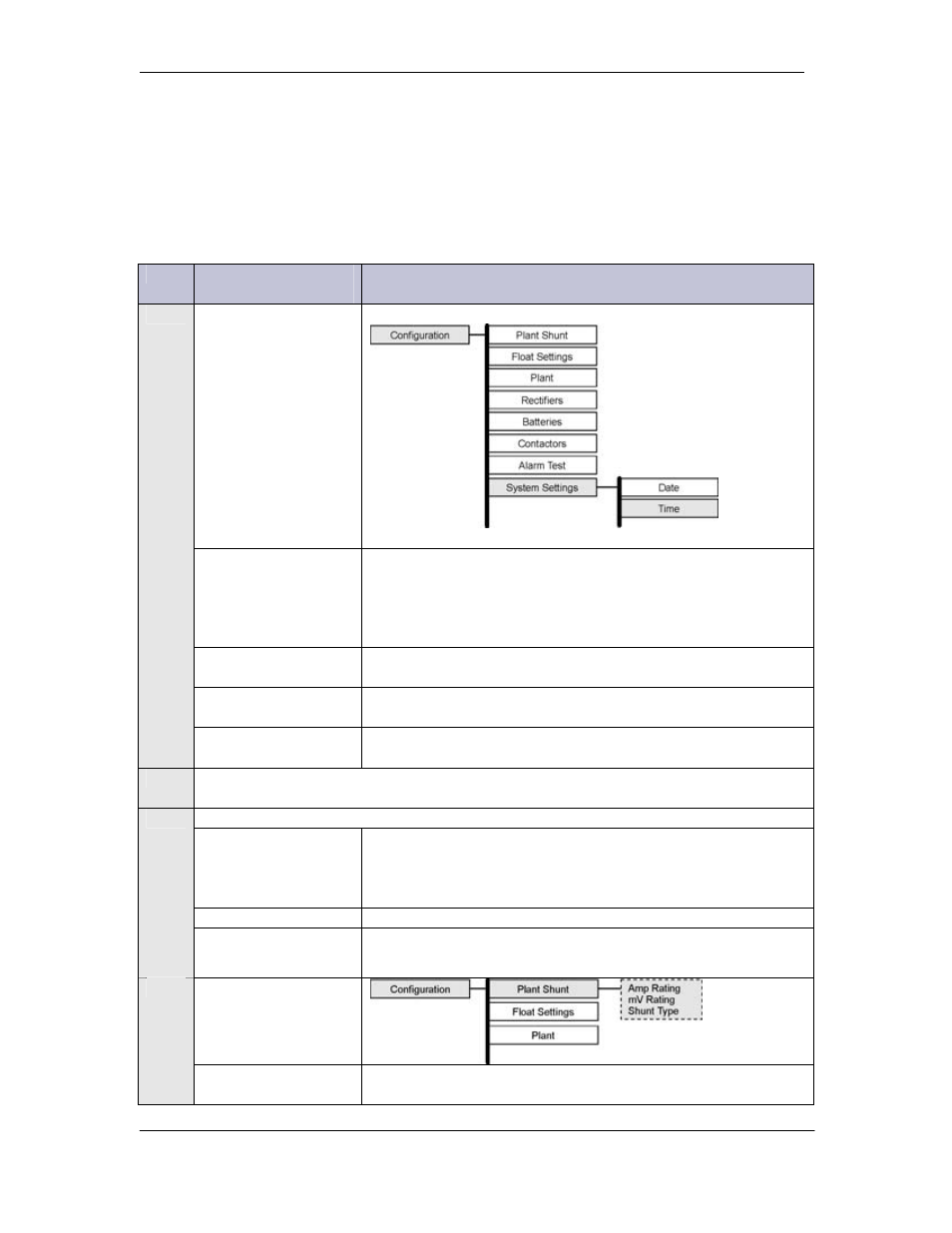

Step
Configuration
Attribute to Change
Menu Path/Action
DATE/TIME
Format
This field allows you to select one of the following date
formats: MM/DD/YY, DD/MM/YY, YY/MM/DD,
MM/DD/YYYY, DD/MM/YYYY, YYYY/MM/DD. Use the
<+> or <-> key to select the desired format and press
Month
Use this field to change the month; the possible value is from 1
to 12.
Day
Use this field to change the day of the month; the possible
value is from 1 to 31.
1
Year
Use this field to change the year; the possible value is from
1992 and up.
Note Please note that the system will validate the entries before the system date is
modified.
TIME
Format
This field allows you to select one of the following time
display formats: 12 or 24 hour. Use the <+> or <-> key to
select the desired format and press
change.
Time
Allows you to change/set the time.
2
Daylight
Enables or Disables Daylight Savings per the new standards
created by the Energy Policy Act of 2005. Starts in 2007.
SYSTEM SHUNT
3
Type
CPS6000-M2 is factory configured with a battery shunt. The
battery shunt is a 1500A, 50mV device located in the V- (hot)
