CPS6000-M2 Installation Guide H5694720
Issue 8 January 2008
64
Display Contrast
In the Main Display, the ▲▼ buttons increase or decrease
the display contrast.
Parameter Change When changing a system parameter, the ▲▼ buttons
increase or decrease the value of the parameter.
Direction Buttons
In the Menus, the ◄▲▼► direction buttons navigate to
make a selection
Enter Button
Enters a sub-menu or confirms a parameter change. From
the Home Page only, goes to the top level Main menu.
Menu Button
Goes to the top level Main menu.
ESC Button
Goes up one menu level or exits a parameter change without
saving.
Help Button
Shows a Help screen.
Lamp Test
Initiates a Lamp Test operation.

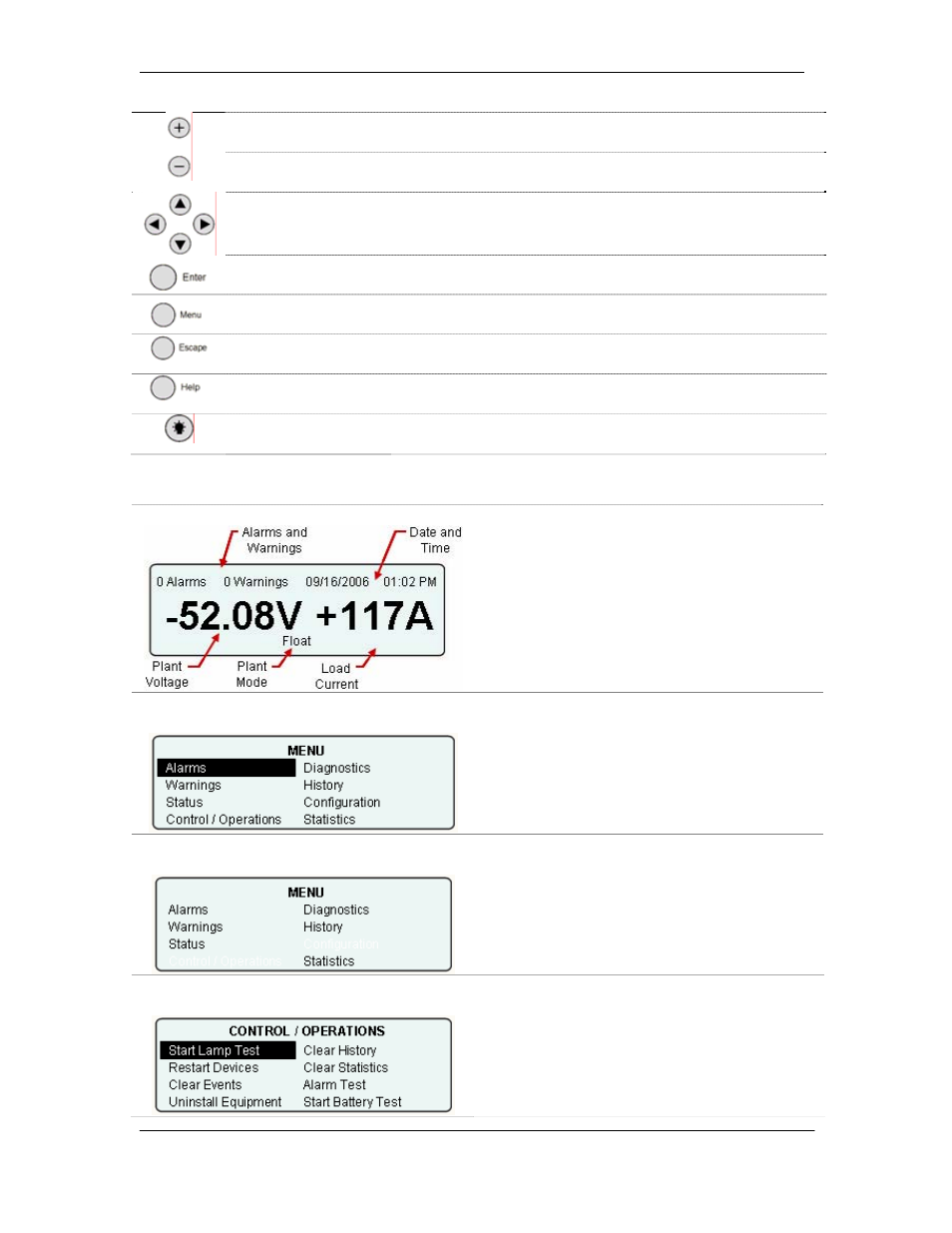

Millennium II Main Display and Menus
Main Display
The Main Display is the normal controller
display. The display will return to the Main
Display after a period of inactivity.
Top Level Menu
The Main menu allows you to view your
equipment status in detail, history, and to view
and edit a variety of parameters.
Information Menus
These Information menus give detailed
information regarding the status and history of
your plant.
Control / Operations Menu
The Control / Operations menu allows you to
perform common operations on your plant.
Operations that are required to turn up and
verify your plant are detailed in the Installation
and Test and Verification sections of this
manual.
