Appendix G: ZZ-4AO-2 Module
Manual Documentation Number: pn7515_Zlinx IO0712m 87
A A p p p p e e n n d d i i x x G G : : Z Z Z Z - - 4 4 A A O O - - 2 2 M M o o d d u u l l e e
Zlinx Wireless I/O Expansion Module ZZ-4AO-2
Analog Outputs 4 Sourcing
Resolution: 12 bit, voltage mode and current mode
Accuracy @ 25ºC 0-10V Outputs: 0.2% of full scale reading, 0.5% max.
0-20mA Outputs: 0.27% of full scale reading, 0.63% max.
Output source
resistance
600 ohm @12V, 1200 ohms @24V; Voltage mode
Output current 1mA; Voltage Mode
Default Mode Voltage (0-10VDC)
Load, Current Mode 0 to 480 Ohms, 14-30VDC
Load, Voltage Mode 100 Mega ohm
Operation Temp -40 to 80°C (-40 to 176°F)
Storage Temp -40 to 85°C (-40 to 185°F)
Operation Humidity 0 to 90% Non-condensing
Power/Source 10-30 VDC / Local Bus
Power Consumption 1.1W (all outputs at 20 mA)
Analog Output Wiring

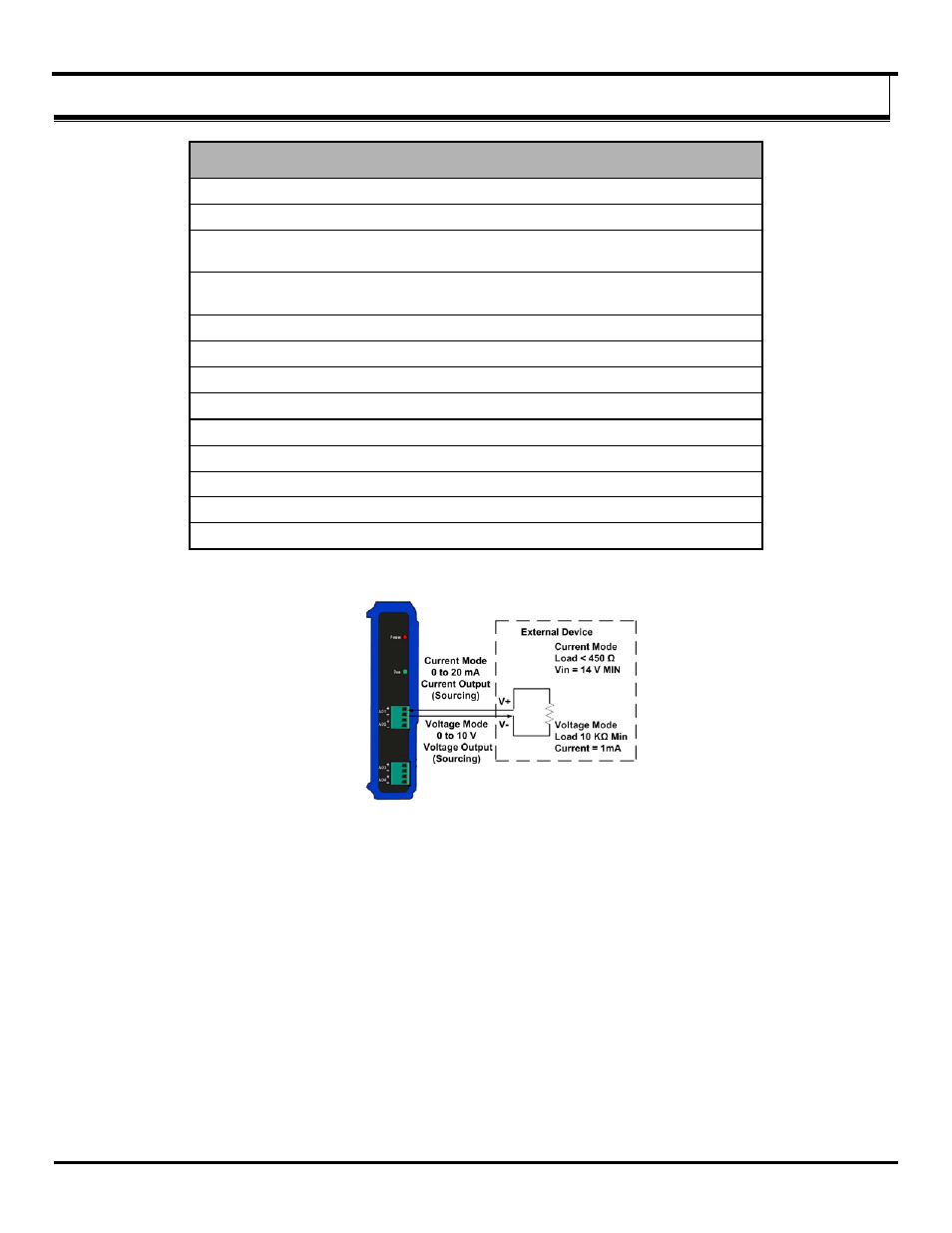

Figure 53 Analog Output Wiring scheme
For analog wiring:
1. Connect field wiring to ZZ-4AO-2 Expansion Module as shown above.
2. The analog outputs on this module are sourcing and provide power to the external device.
Configure Analog Outputs
1. On the Input / Output tab, check to see that all modules and I/O points are listed.
2. Select the ZZ-4AO-2 Module.
3. Set the Analog Outputs for 1 to 10VDC or, 0 to 20mA as needed (setting one sets all for module).
The ZZ-4AO-2 model is a sourcing output and does not require a power supply to complete the loop. Since the current is
sourced there is no need to use an isolator or differential input. This output can connect directly to a standard 0-20mA input.
