Configuration & Operation
Manual Documentation Number: pn7515_ZlinxIO-0712m 53

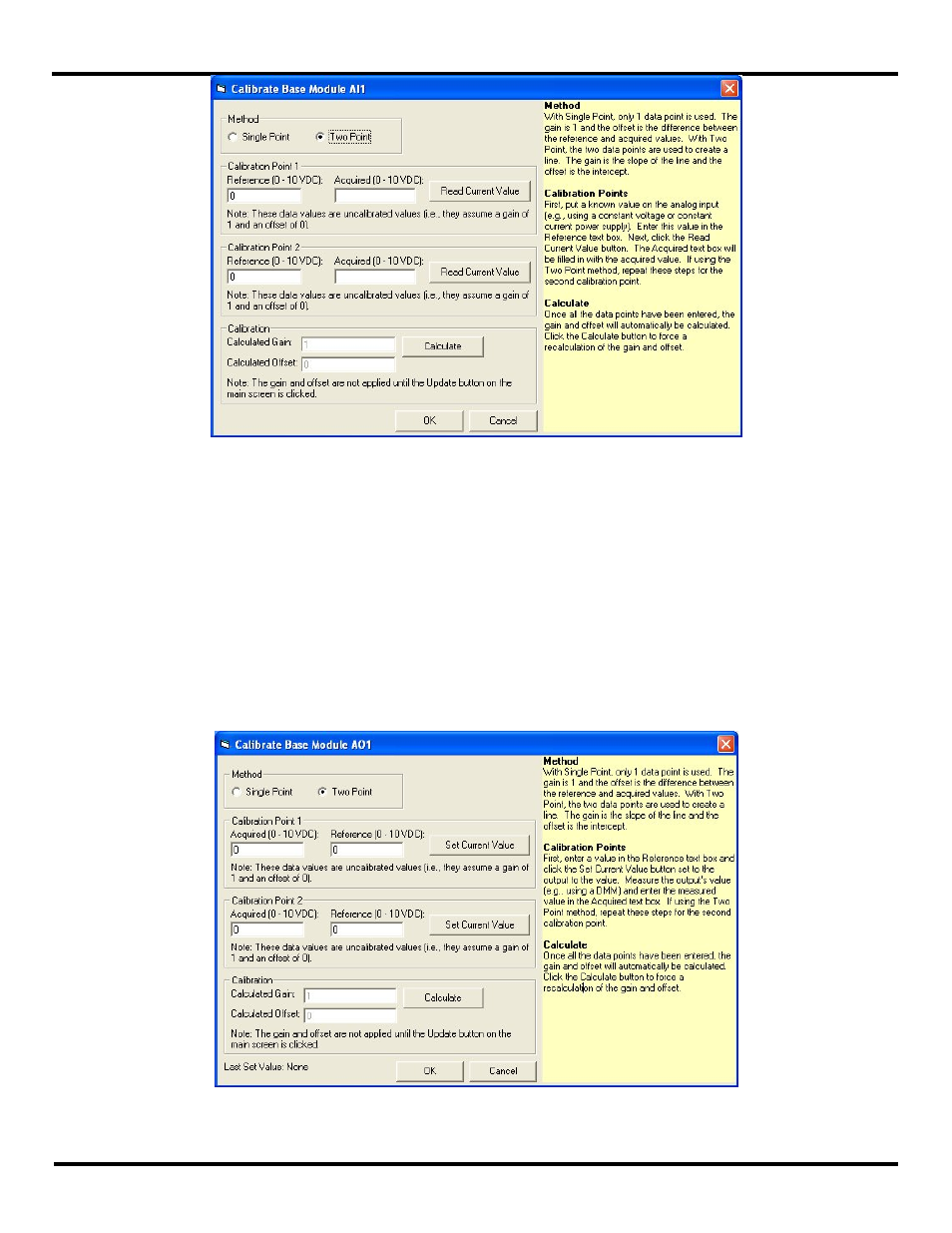

Figure 47 Window for setting AI Calibration
To set Calibration for Analog Outputs:
1. Enter a value in the Reference text box.
2. Click the Set Current value button.
3. Supply power to the device.
4. Measure the output value and enter the measured value in the Acquired text box.
5. Values will be filled in automatically in the calibration field.
If using the Two Point method, repeat these steps for the second calibration point.
Figure 48 Window for setting AO Calibration
