Configuration & Operation
52 Manual Documentation Number: pn7515_ZlinxIO-0712m
To set the option of Exception Reporting:
1. Go to Zlinx Manager.
2. On the Input/Output Tab enable Exception Reporting option for the selected Input of the required module.

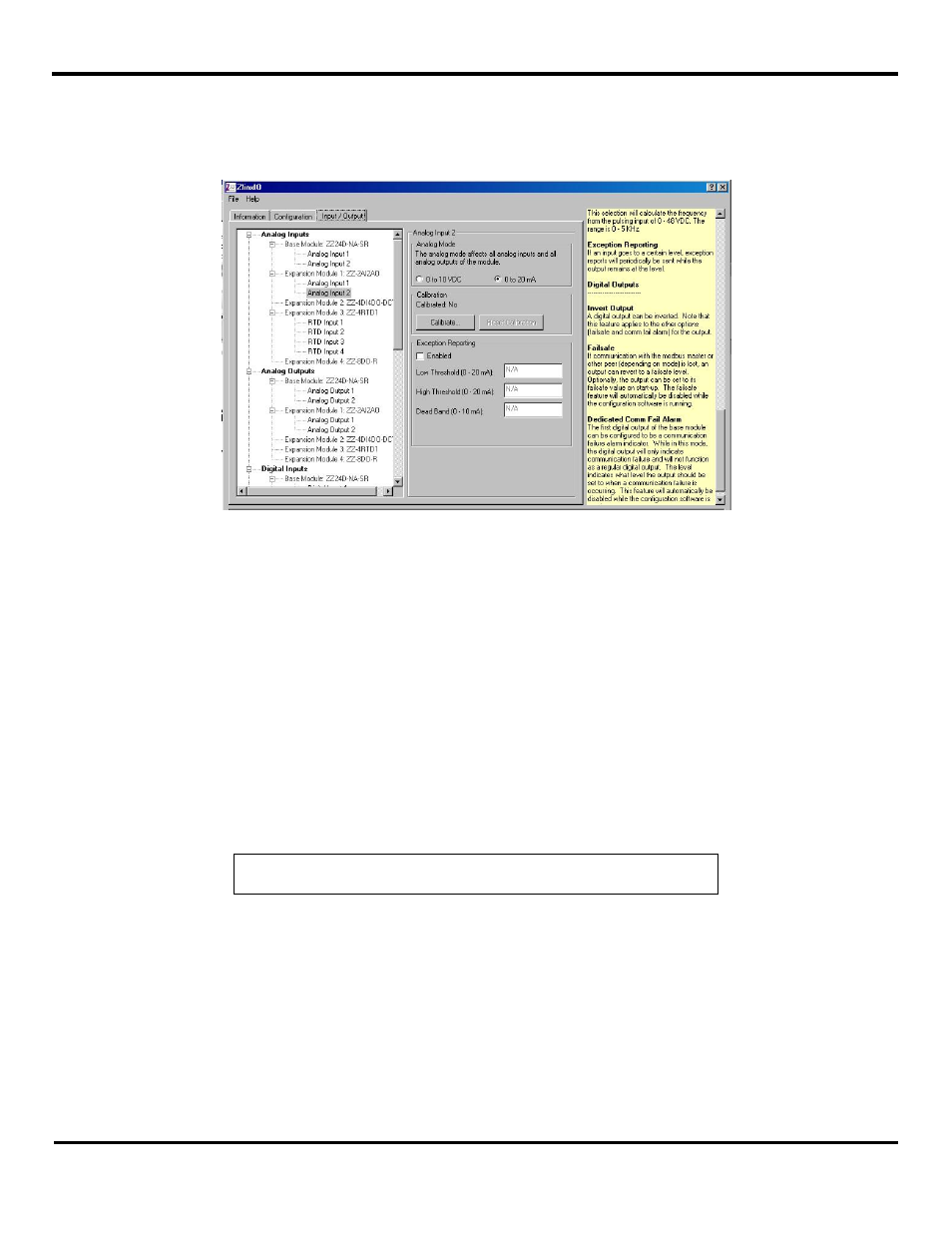

Figure 46 Window for setting Exception Reporting option
5.1.6 Calibration
It is possible to set a Calibration option in Zlinx Manager. Set Calibration option if you desire to better match a sensor, or a
portion of a signal, to the I/O. Calibration feature can be applied for both Base and Expansion Modules.
There are two methods of Calibration:
 Single Point
Only one data point is used. The gain is 1 and the offset is the difference between the reference and acquired values.
 Two Point
The two data points are used to create a line. The gain is the slope of the line and the offset is the intercept.
NOTE: Power cycle does not reset Calibration settings.
To set Calibration for Analog Inputs:
1. Put a known value on the Analog Input.
2. Enter this value in the Reference text box.
3. Click the Read Current Value button.
4. The Acquired text box will be filled in with the acquired value.
If using the Two Point method, repeat these steps for the second calibration point.
