Product Introduction
Manual Documentation Number: pn7515_ZlinxIO-0712m 9
 Set RO = 0x051d
 Set MD = 0x04
 If OTA Data Rate = 9600, ATRR and ATBR =0.

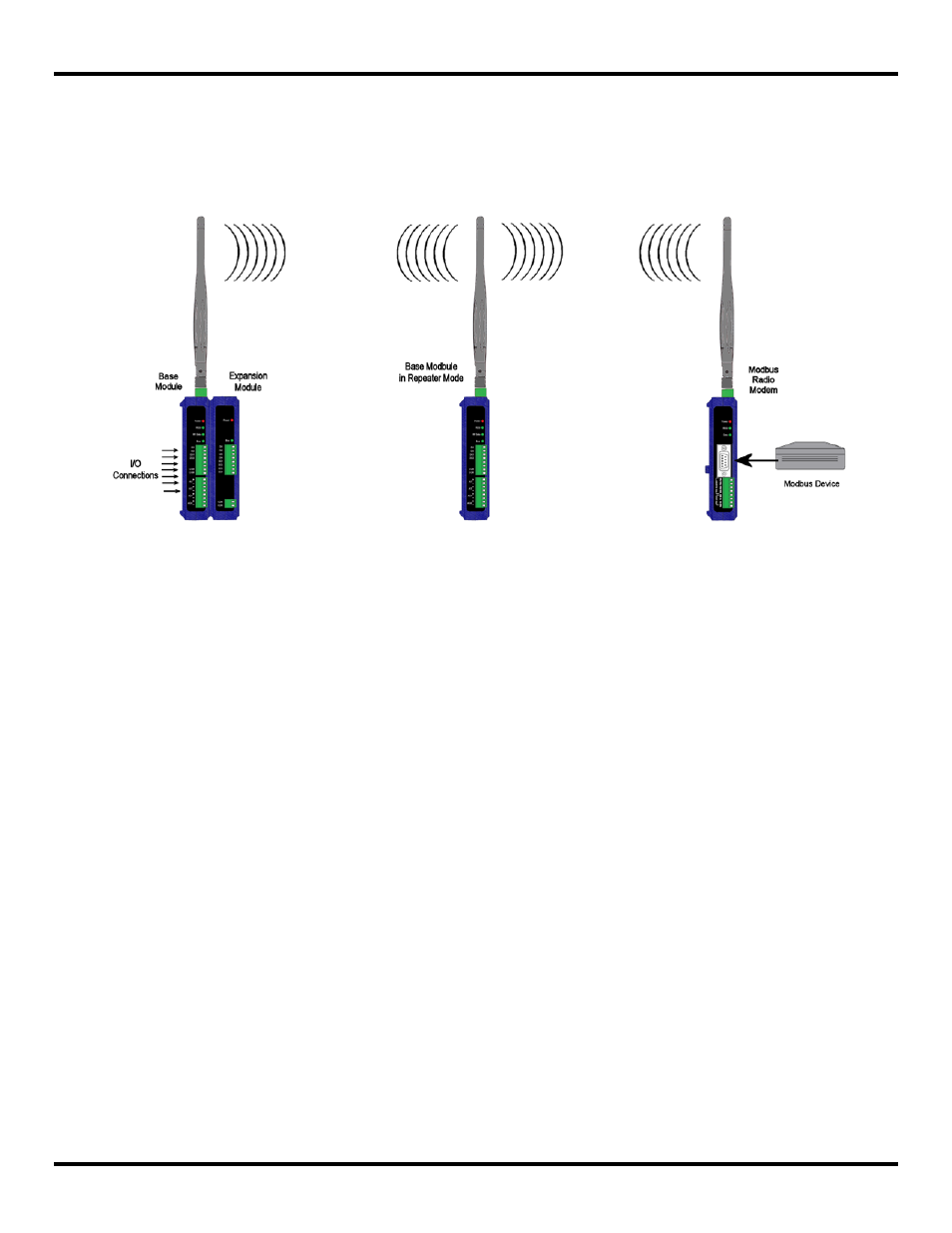

Figure 4 Using a Base Module as a Repeater
2.3 Package Contents
Base Modules are shipped with the following items included:
 Zlinx Wireless I/O module.
 Antenna.
 A printed version of the Modbus Mode Zlinx I/O Quick Start Guide.
 A printed version of the Peer-to-Peer Mode Zlinx I/O Quick Start Guide.
Expansion Modules are shipped with the following items included:
 Zlinx Wireless I/O module.
 A printed version of the Modbus Mode Zlinx I/O Quick Start Guide.
 A printed version of the Peer-to-Peer Mode Zlinx I/O Quick Start Guide.
Configuration Modules
ZZ-PROG1 is shipped with the following items included:
 ZZ-PROG1 Configuration Box.
 6 foot DB9 male to DB9 female straight-through serial cable.
 A printed version of the Modbus Mode Zlinx I/O Quick Start Guide.
 A printed version of the Peer-to-Peer Mode Zlinx I/O Quick Start Guide.
Configuration kits:
