Configuration & Operation
Manual Documentation Number: pn7515_ZlinxIO-0712m 55
Figure 41 Window for setting Communication Failure Alarm option
5.1.9 Invert Output
The user can invert logic of all Digital Outputs when such option is enabled. The feature applies to Base and Expansion
Modules. With such settings if the signal coming to the affected Digital Output is ON (low), the Digital Output will show OFF
(high).
NOTE: This feature applies to other options such as Failsafe or Communication
Failure Alarm for the outputs .

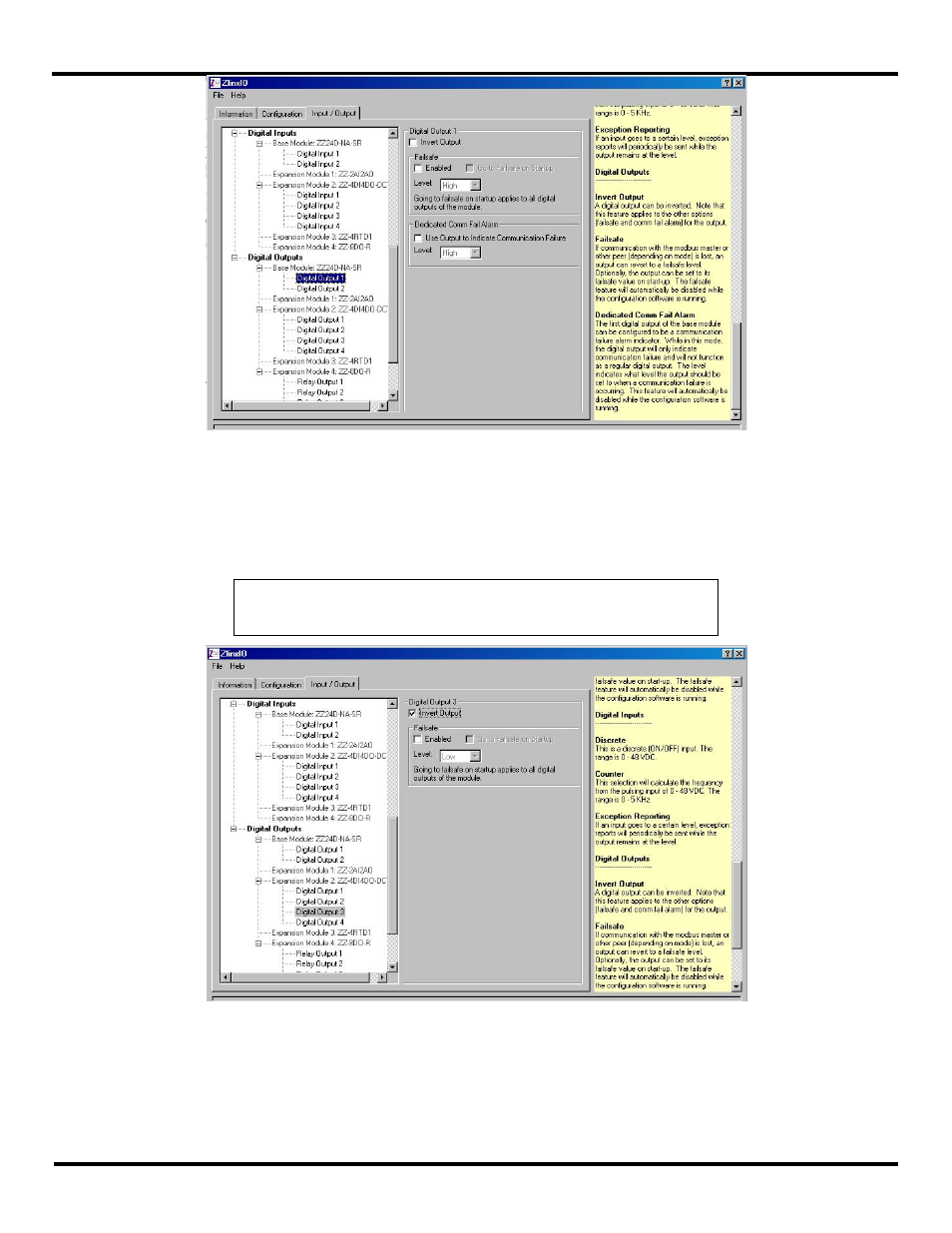

Figure 42 Invert Output settings window
5.1.10 Zlinx I/O Monitor
From Zlinx Manager the user can choose the option Zlinx I/O Monitor. This option allows the monitoring of all Analog and
Digital I/O values (in V, mA, on/off; degrees Celsius for RTD) real time.
To start the Monitor feature:
