Configuration & Operation
Manual Documentation Number: pn7515_ZlinxIO-0712m 49
NOTE: Setting the Analog Mode of one AI or AO sets all AI’s and AO’s on that
module to the same mode.

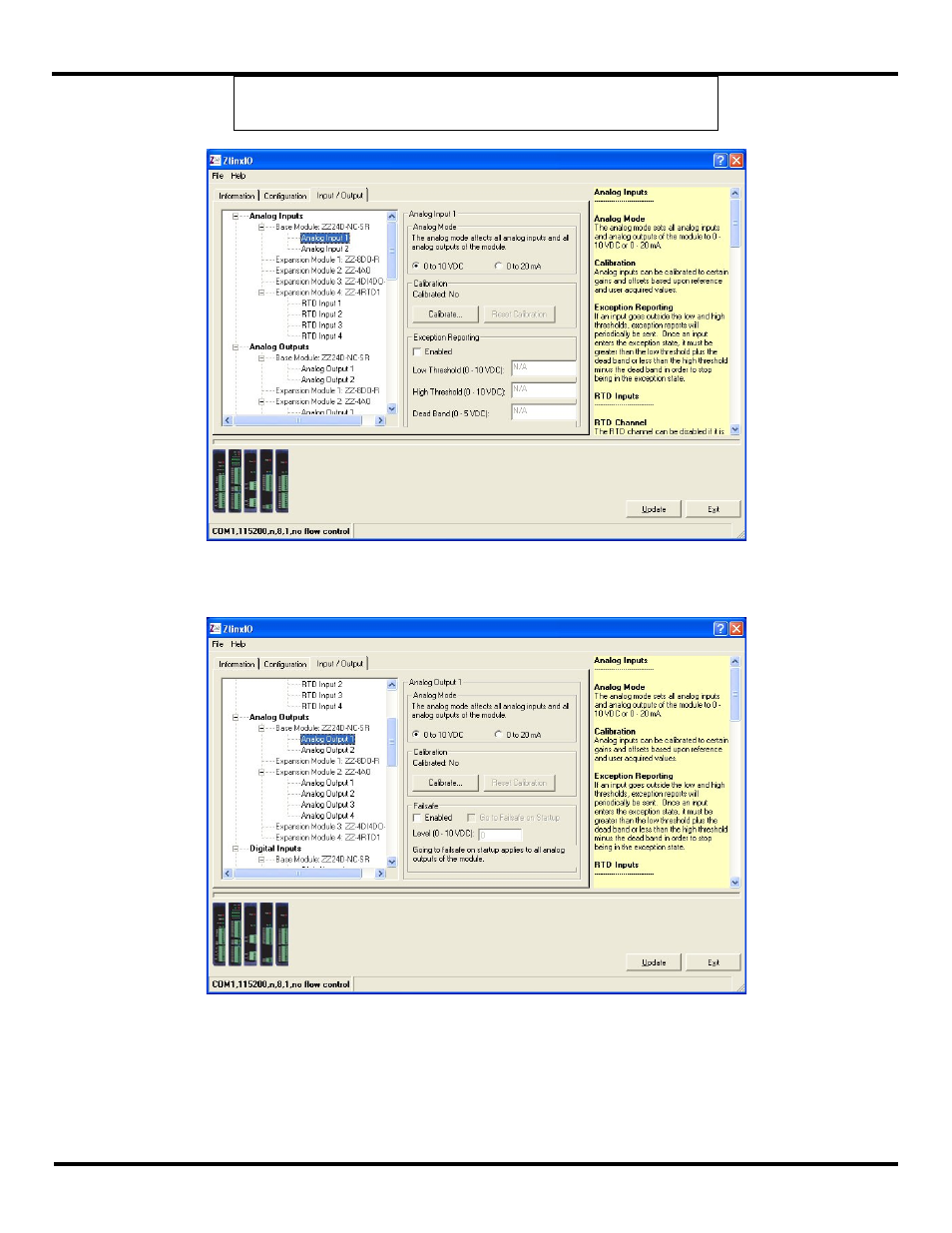

Figure43 Analog Input Configuration
8. Select the Analog Output to be configured.
Figure 3944 Analog Output Configuration
9. Select the required Analog Mode (0 to 10 VDC or 0 to 20 mA).
If RTD module is present:
1. Select the Input/Output tab.
