Hardware Information
24 Manual Documentation Number: pn7515_ZlinxIO-0712m

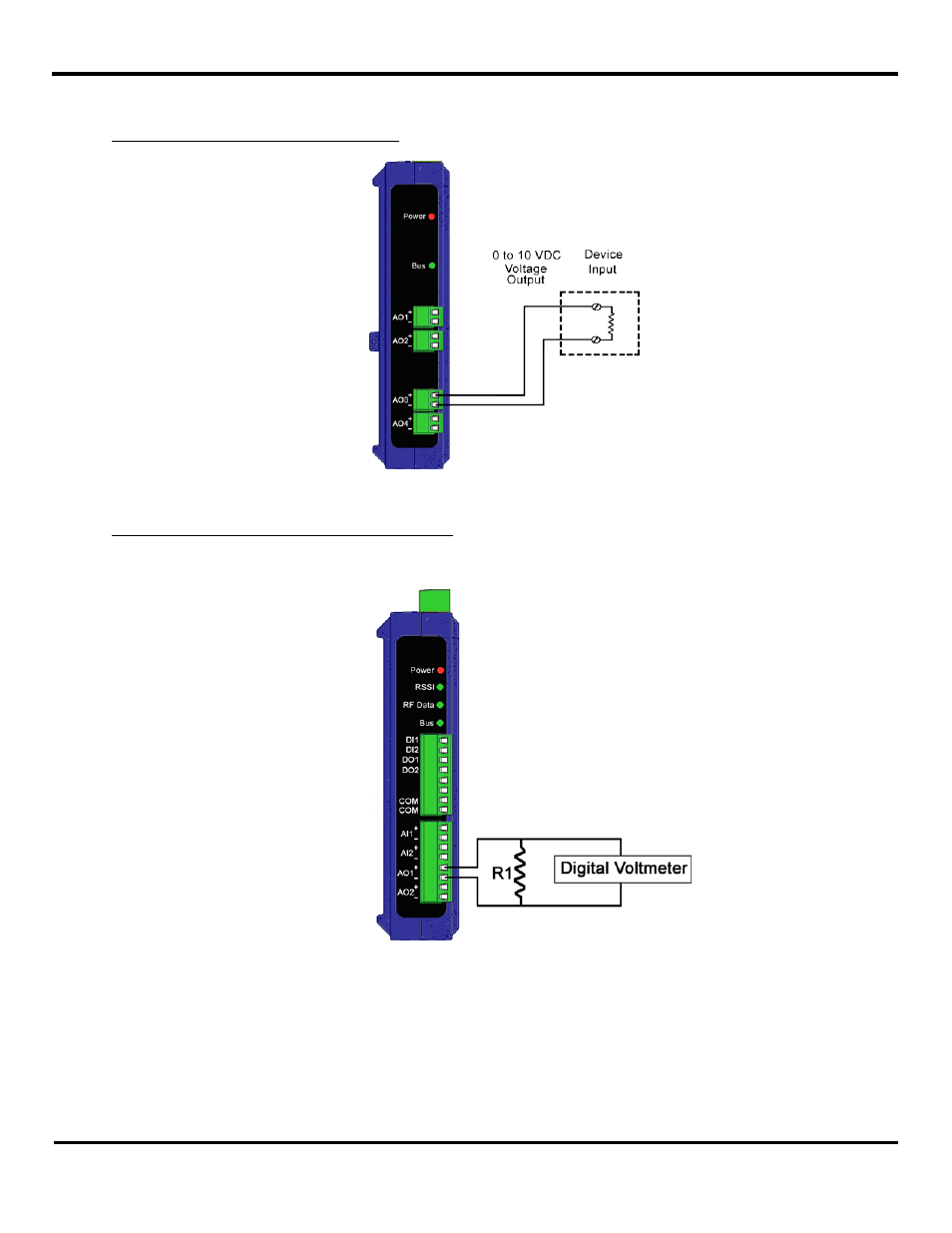

When configured as a voltage output, the analog outputs are of sourcing type. The following diagram shows typical Analog
Output Wiring for Sourcing drivers:
Analog output connection for Sourcing drivers:
Figure 20 Typical Analog Output Wiring for Sourcing Outputs
Voltage output Configuration (all Zlinx Gen II modules):
The following diagram shows typical Analog Output Wiring for Sourcing outputs configured as voltage signals:
Figure 21 Typical Analog Output Wiring for Sourcing Outputs (Voltage)
