Configuration & Operation
56 Manual Documentation Number: pn7515_ZlinxIO-0712m
1. Start Zlinx Manager.
2. Choose Zlinx I/O Monitor from the list.
3. Zlinx I/O Monitor window will open.
4. Choose the COM port the system is connected to.
5. Click on the Start Monitoring button.

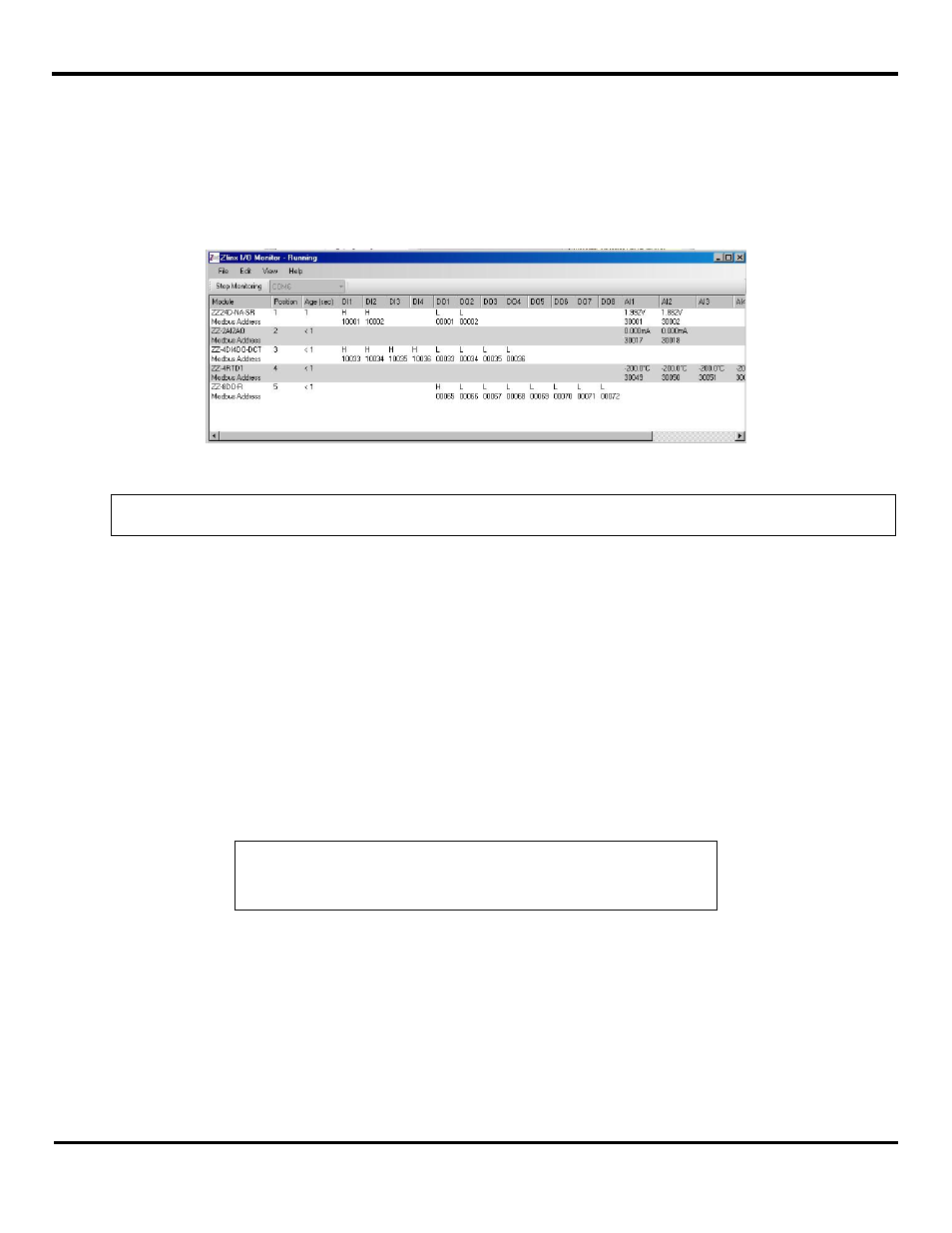

Figure 43 Zlinx I/O Monitor
NOTE: Monitor doesn’t show the inverted values for the DO’s if such option is enabled.
5.1.11 Saving the Configuration
When all configuration settings are complete, click the Update button to save them in the Zlinx Wireless I/O Base Module.
1. After pressing the Update button the Configuration Manager switches to the Information tab.
2. The Progress bar at the bottom of the windows shows the progress of the update.
3. The Status bar displays the following text:
Sending radio parameters to the Base Module.
4. When the updating process is complete, it is possible to switch to any other tab to see or edit any parameters.
NOTE: When configuration is complete and saved, power can be removed from the
Base Module and the ZZ-PROG1 or ZZ-PROG1-USB Configuration Box should be
disconnected and removed.
5.2 Updating Zlinx I/O Firmware
Occasionally, updated firmware becomes available for Zlinx Wireless I/O modules. When the Zlinx Manager software is
installed on your computer the Zlinx Wireless I/O Firmware Updater software is also installed. This can be used to update the
firmware in your Zlinx Wireless I/O modules. The following procedure describes the firmware updating process:
1. Disconnect power from the Base Module.
2. Disconnect all modules from external equipment. The easiest way to disconnect is to unplug all I/O terminal blocks.
