Chapter 8 VLAN

GS-3012/GS-3012F User’s Guide

94

8.4.1 Configuring a Port-based VLAN

Select Port Based as the VLAN Type in the Switch Setup screen under Basic Setting and
then click VLAN under Advanced Application to display the next screen.

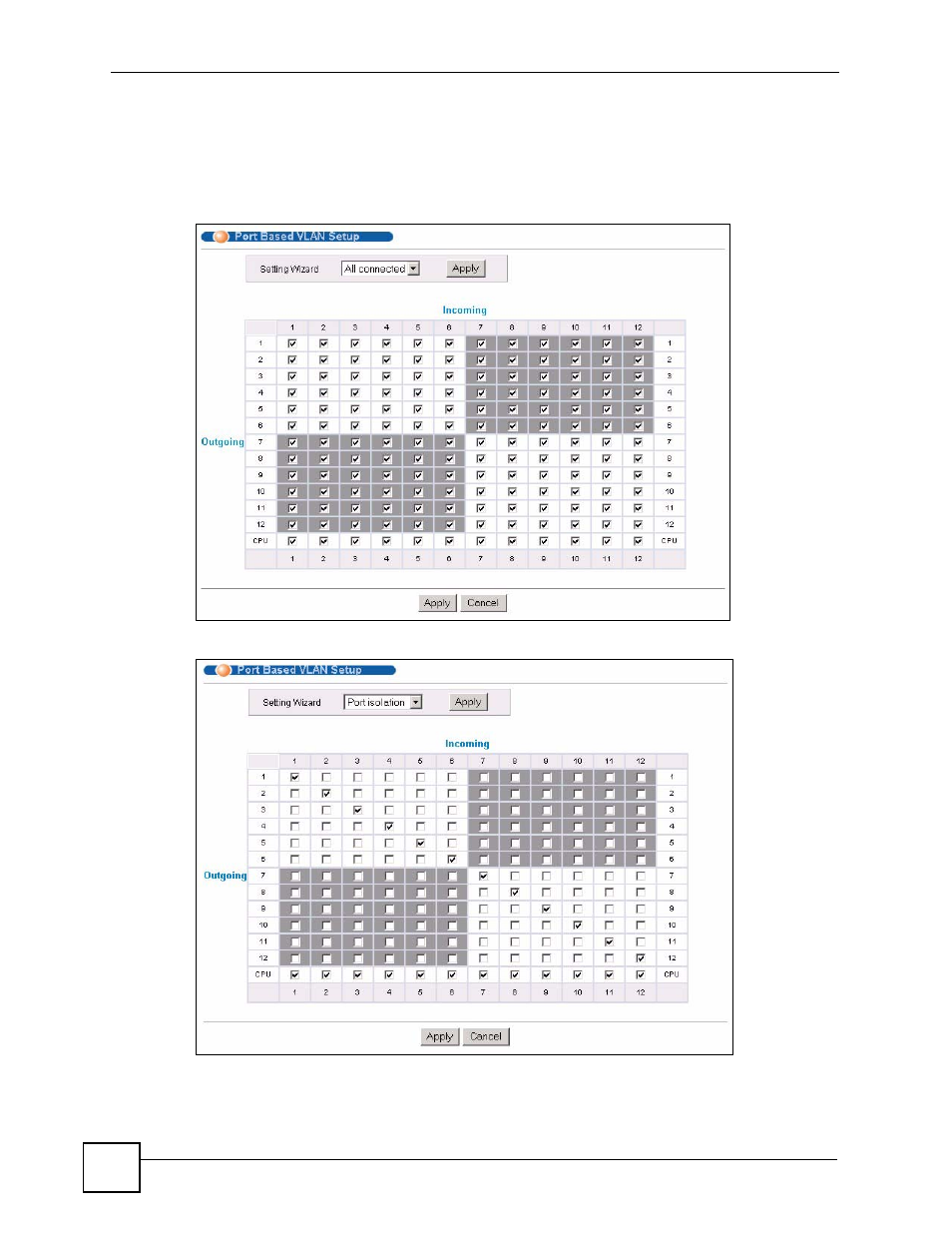

Figure 43 Port Based VLAN Setup (All Connected)

Figure 44 Port Based VLAN Setup (Port isolation)
