Chapter 8 VLAN
GS-3012/GS-3012F User’s Guide
89
The following table describes the labels in this screen.
8.3.2 802.1Q VLAN Port Settings
Use this screen to configure the 802.1Q VLAN settings on a port. See Section 8.1 on page 85
for more information on static VLAN. Click the VLAN Port Setting link in the VLAN Status
screen.

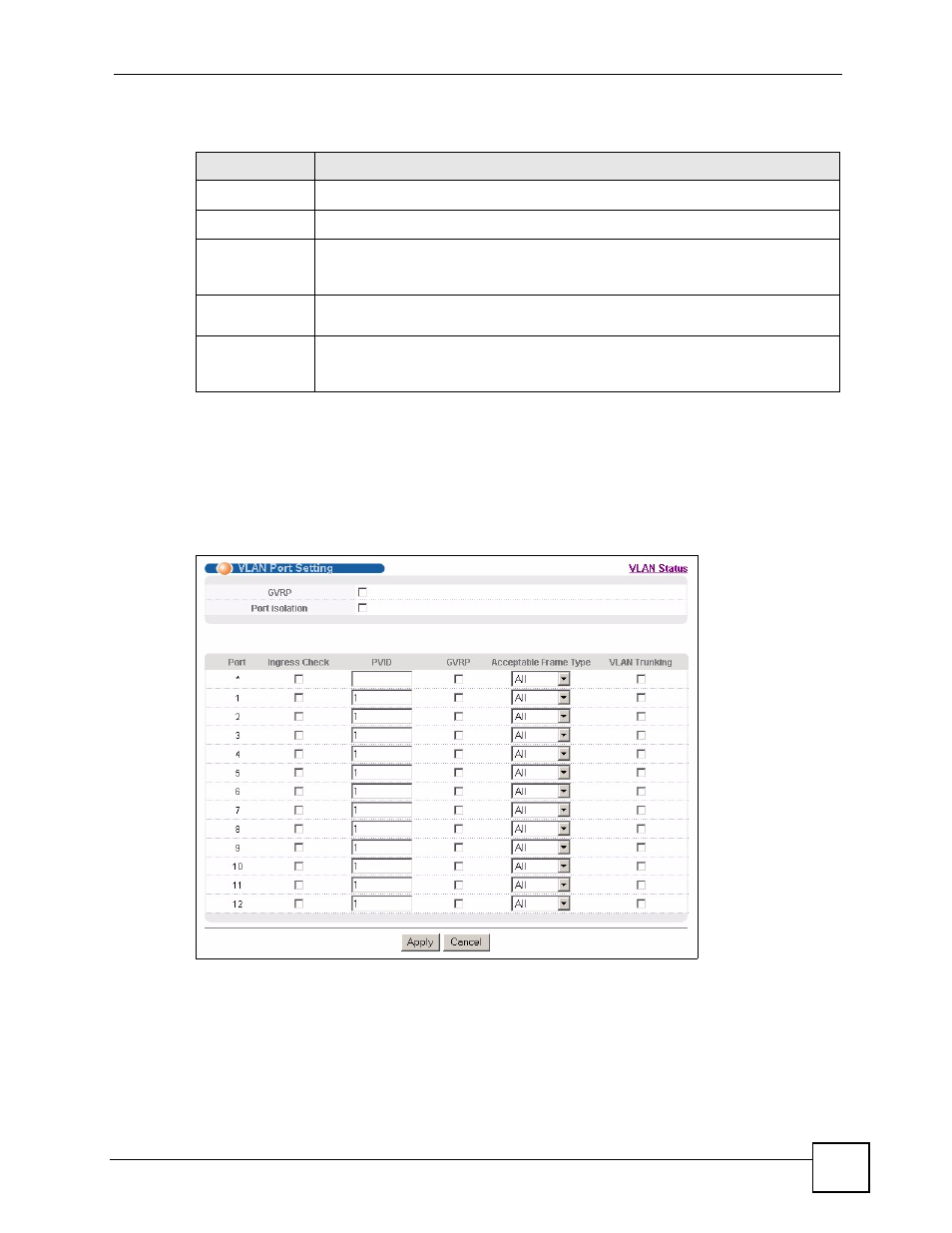

Figure 39 802.1Q VLAN Port Settings
Table 15 802.1Q VLAN Detail
LABEL DESCRIPTION
VLAN Status Click this to go to the VLAN Status screen.
VID This is the VLAN identification number.
Port Number This column displays the ports that are participating in a VLAN. A tagged port is
marked as T, an untagged port is marked as U and ports not participating in a
VLAN in marked as “–“.
Elapsed Time This field shows how long it has been since a normal VLAN was registered or a
static VLAN was set up.
Status This field shows how this VLAN was added to the switch; dynamic - using GVRP,
static - added as a permanent entry or other - added using Multicast VLAN
Registration (MVR).
