Chapter 8 VLAN
GS-3012/GS-3012F User’s Guide
88

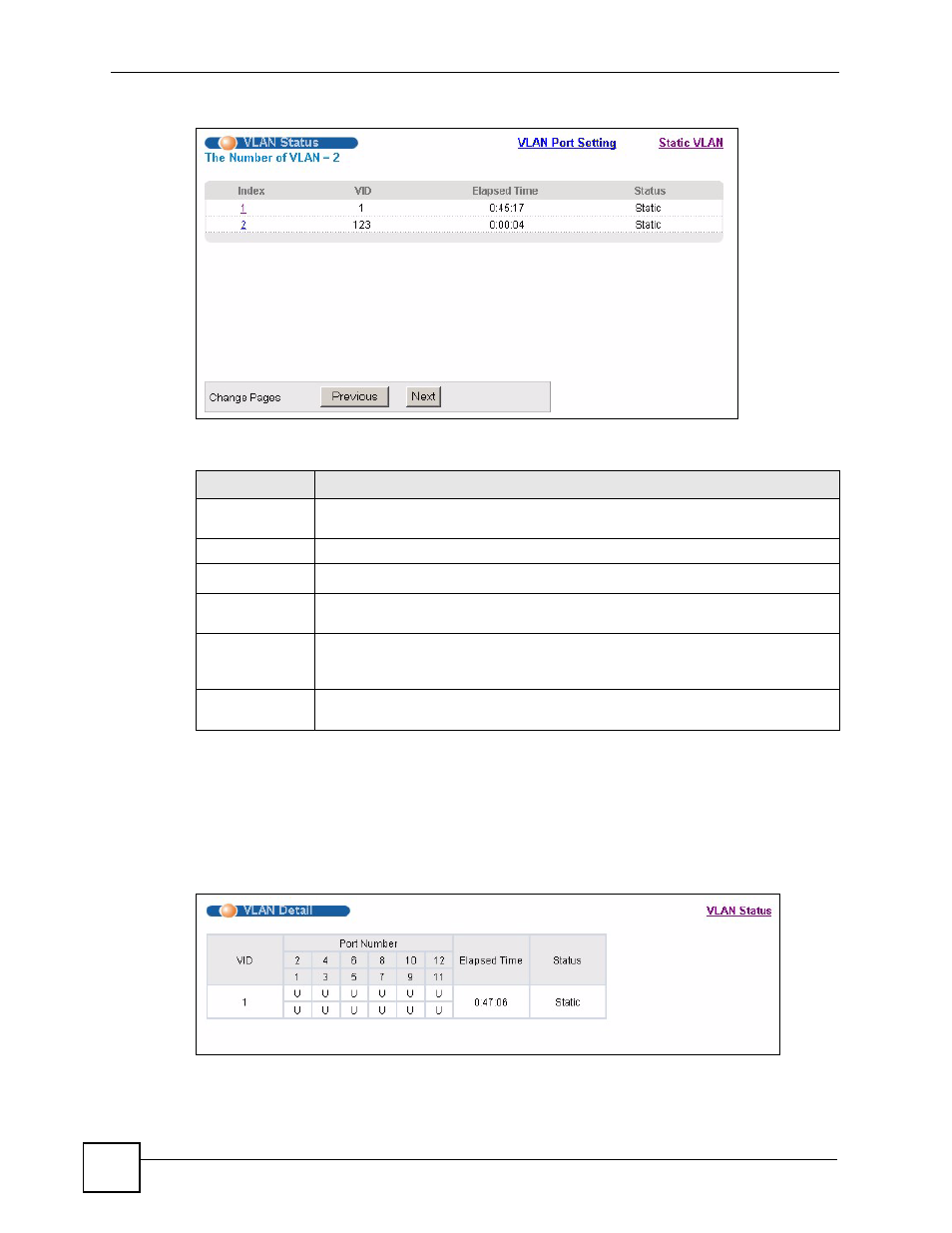

Figure 37 802.1Q VLAN Status
The following table describes the labels in this screen.
8.3.1 802.1Q VLAN Detail
Click on an index number in the VLAN Status screen to display VLAN details. Use this
screen to view detailed port settings and status of the VLAN group. See
Section 8.1 on page 85
for more information on static VLAN.
Figure 38 802.1Q VLAN Detail
Table 14 802.1Q VLAN Status
LABEL DESCRIPTION
The Number of
VLAN
This is the number of VLANs configured on the switch.
Index This is the VLAN index number.
VID This is the VLAN identification number.
Elapsed Time This field shows how long it has been since a normal VLAN was registered or a
static VLAN was set up.
Status This field shows how this VLAN was added to the switch; dynamic - using GVRP,
static - added as a permanent entry or other - added using Multicast VLAN
Registration (MVR).
Change Pages Click Previous or Next to show the previous/next screen if all status information
cannot be seen in one screen.
