GS-3012/GS-3012F User’s Guide

117

C

H A P T E R

14

Mirroring

This chapter discusses the Mirror setup screens.

14.1 Introduction to Port Mirroring

Port mirroring allows you to copy a traffic flow to a monitor port (the port you copy the traffic
to) in order that you can examine the traffic from the monitor port without interference.

14.2 Port Mirroring Configuration

Click Advanced Application, Mirroring in the navigation panel to display the Mirroring
screen.
Use this screen to select a monitor port and specify the traffic flow to be copied to the monitor
port.

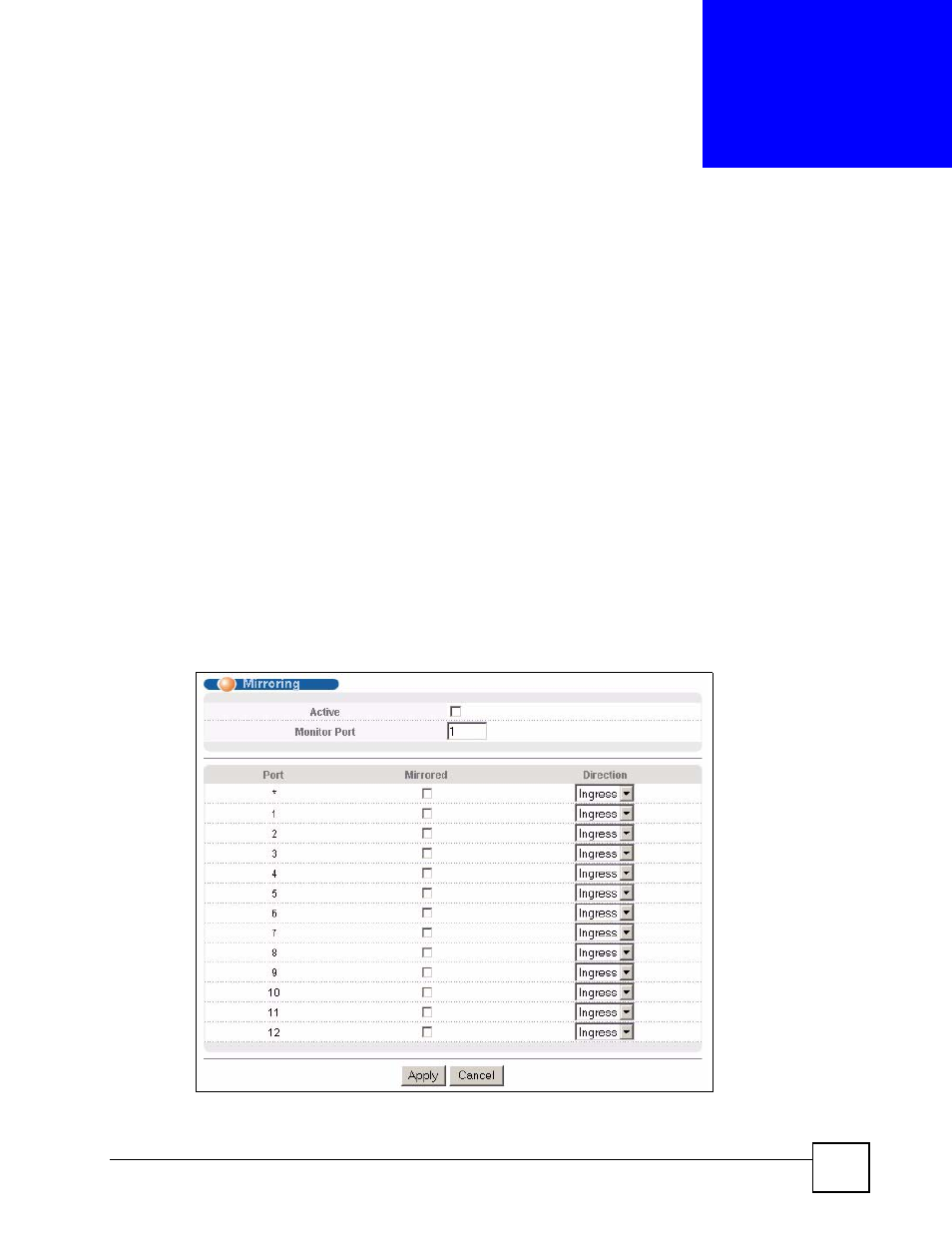

Figure 57 Mirroring
