Chapter 5 Initial Setup Example
GS-3012/GS-3012F User’s Guide
63

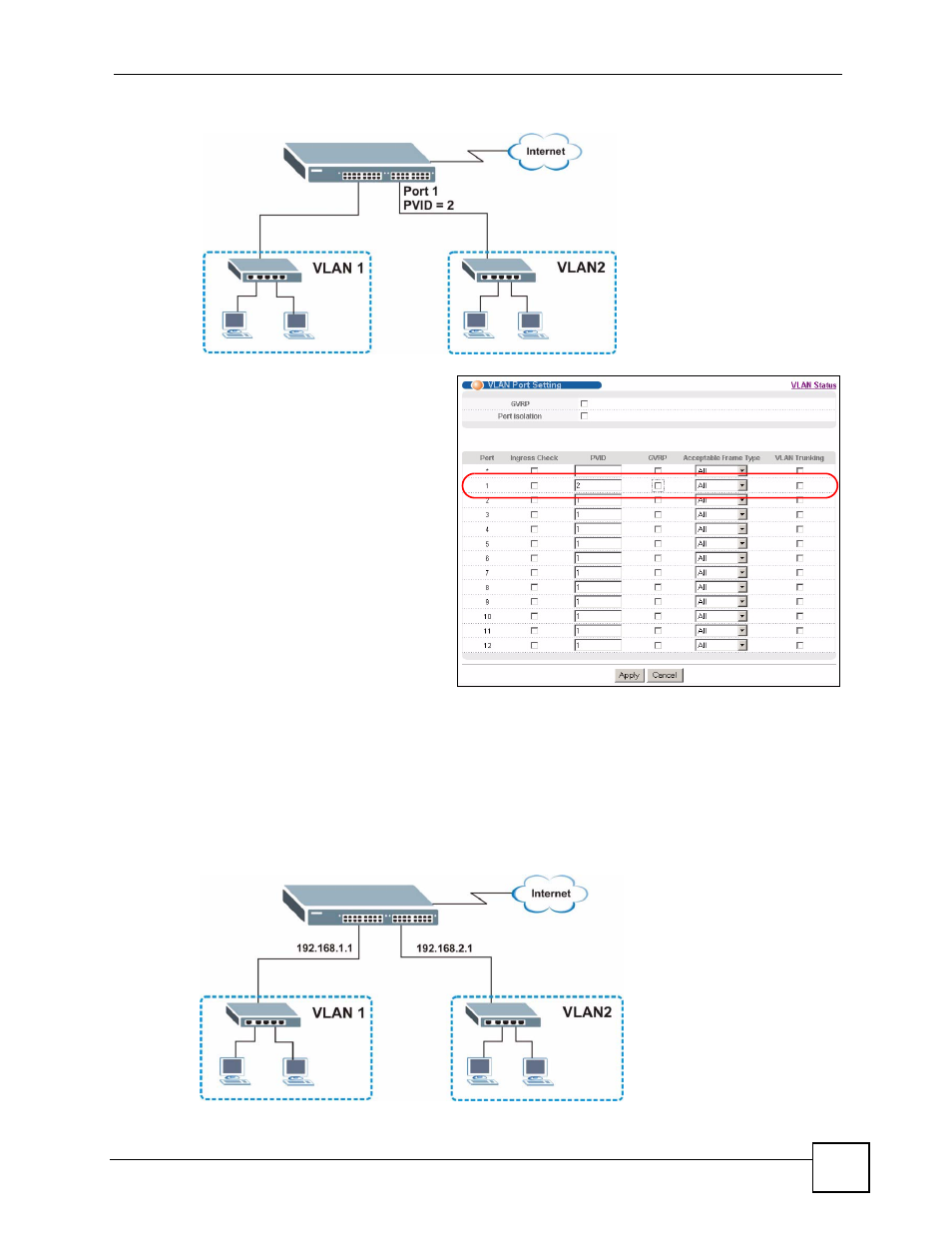

Figure 26 Initial Setup Network Example: Port VID
1 Click Advanced Applications
and VLAN in the navigation
panel. Then click the VLAN
Port Setting link.
2 Enter 2 in the PVID field for
port 1 and click Apply to save
your changes back to the run-
time memory. Settings in the
run-time memory are lost
when the switch’s power is
turned off.
5.2 Configuring Switch Management IP Address
The default management IP address of the switch is 192.168.1.1. You can configure another IP
address in a different subnet for management purposes. The following figure shows an
example.
Figure 27 Initial Setup Example: Management IP Address
