Chapter 15 Link Aggregation
GS-3012/GS-3012F User’s Guide
120
15.1.2 Link Aggregation ID
LACP aggregation ID consists of the following information:
15.2 Link Aggregation Protocol Status
Click Advanced Application, Link Aggregation in the navigation panel to display the Link
Aggregation Protocol Status screen.

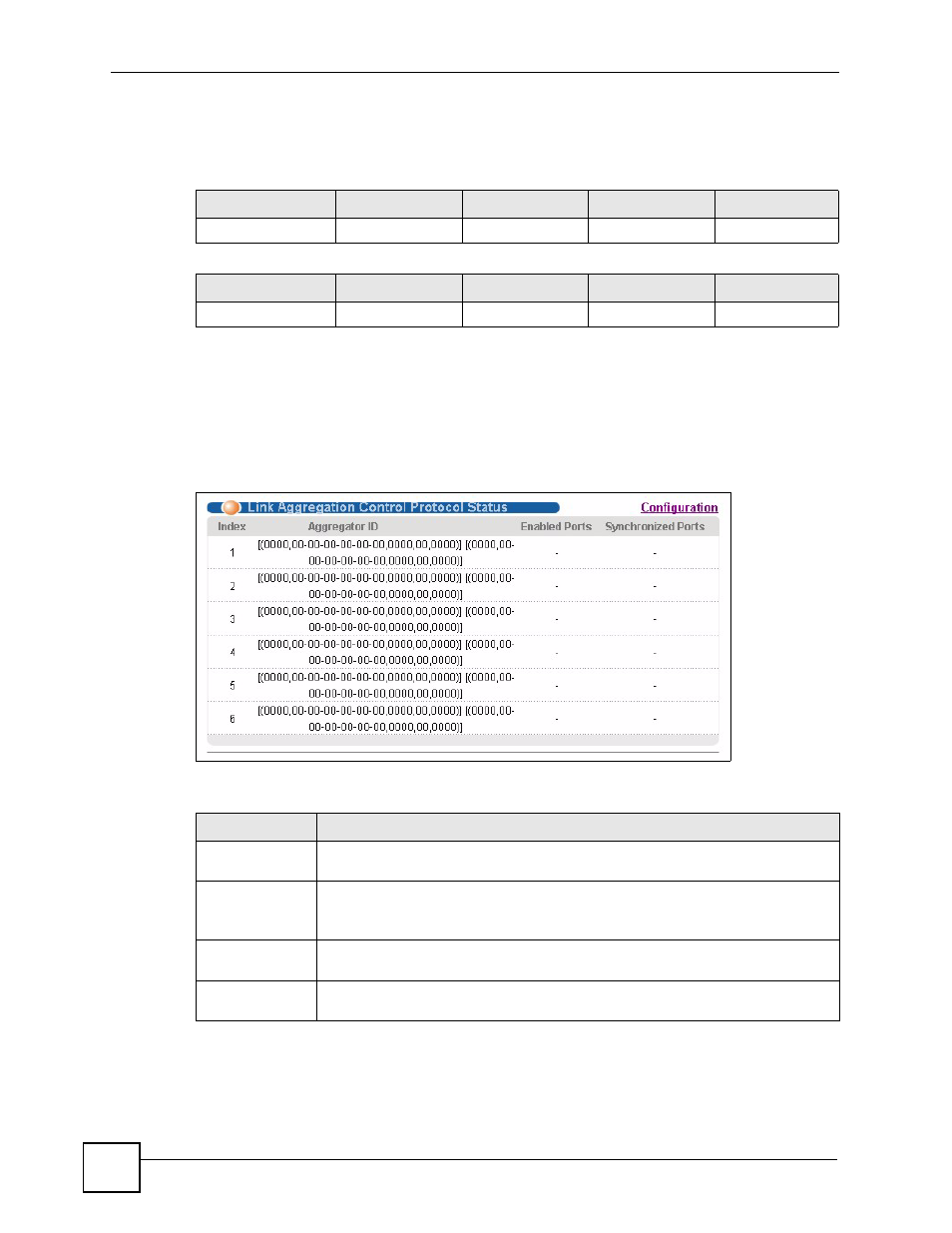

Figure 58 Link Aggregation: Link Aggregation Protocol Status
The following table describes the labels in this screen.
Table 34 Link Aggregation ID: Local Switch
SYSTEM PRIORITY MAC ADDRESS KEY PORT PRIORITY PORT NUMBER
0000 00-00-00-00-00 0000 00 0000
Table 35 Link Aggregation ID: Peer Switch
SYSTEM PRIORITY MAC ADDRESS KEY PORT PRIORITY PORT NUMBER
0000 00-00-00-00-00 0000 00 0000
Table 36 Link Aggregation: Link Aggregation Protocol Status
LABEL DESCRIPTION
Index This field displays the trunk ID to identify a trunk group, that is, one logical link
containing multiple ports.
Aggregator ID This field displays the link aggregation ID. Link aggregation ID consists of the
following: system priority, MAC address, key, port priority and port number.
Refer to
Section 15.1.2 on page 120 for more information on this field.
Enabled Port These are the ports you have configured in the Link Aggregation screen to be in
the trunk group.
Synchronized
Ports
These are the ports that are currently transmitting data as one logical link in this
trunk group.
