Chapter 21 Multicast
GS-3012/GS-3012F User’s Guide
159

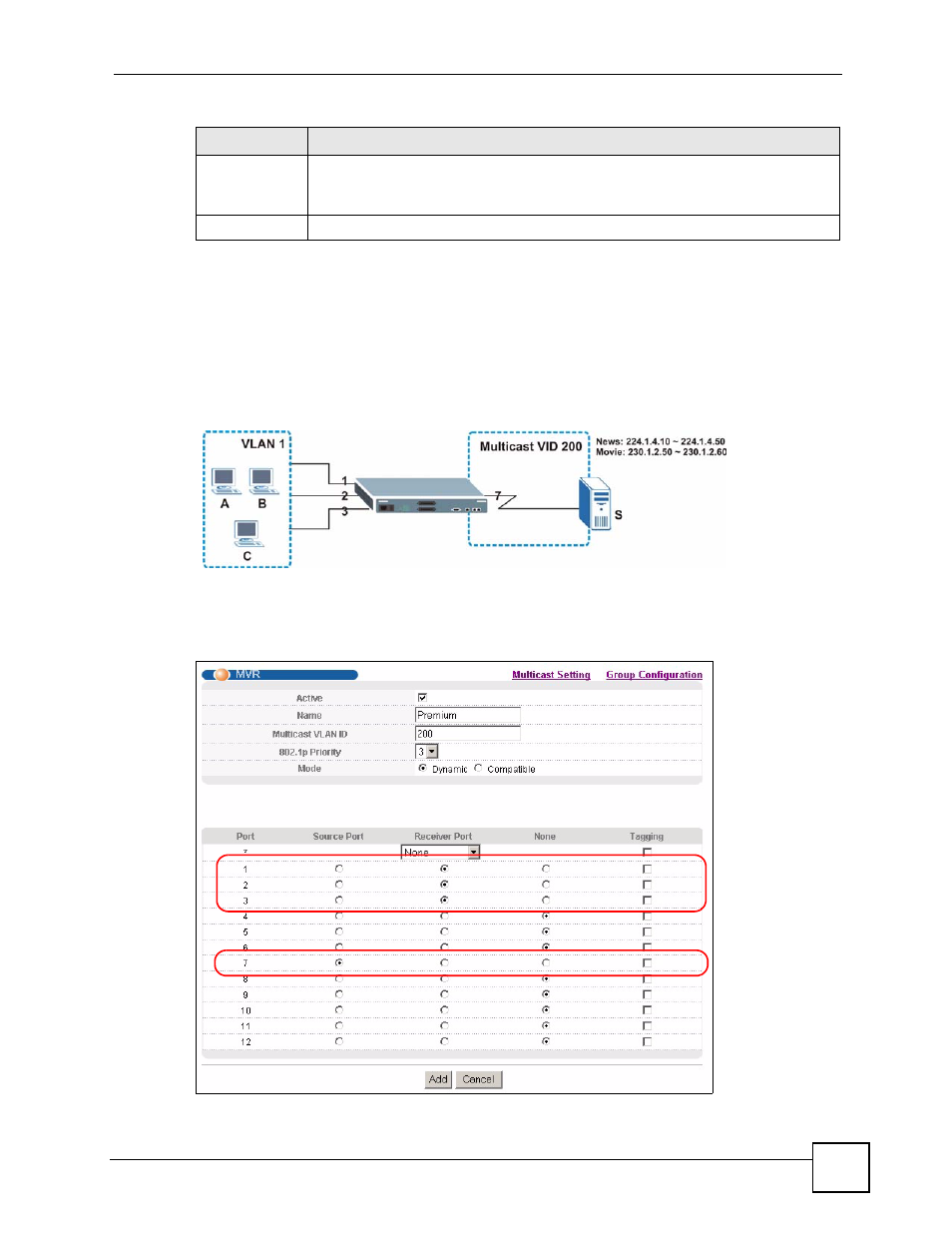

21.7.1 MVR Configuration Example
The following figure shows a network example where ports 1, 2 and 3 on the switch belong to
VLAN 1. In addition, port 7 belongs to the multicast group with VID 200 to receive multicast
traffic (the News and Movie channels) from the remote streaming media server, S. Computers
A, B and C in VLAN are able to receive the traffic.
Figure 79 MVR Configuration Example
To configure the MVR settings on the switch, create a multicast group in the MVR screen and
set the receiver and source ports.
Figure 80 MVR Configuration Example
Delete Select Delete All and click Delete to remove all entries from the table.
Select Delete Group and click Delete to remove the selected entry(ies) from the
table.
Cancel Select Cancel to clear the checkbox(es) in the table.
Table 55 MVR Group Configuration (continued)
LABEL DESCRIPTION
