Chapter 12 Bandwidth Control
GS-3012/GS-3012F User’s Guide
114

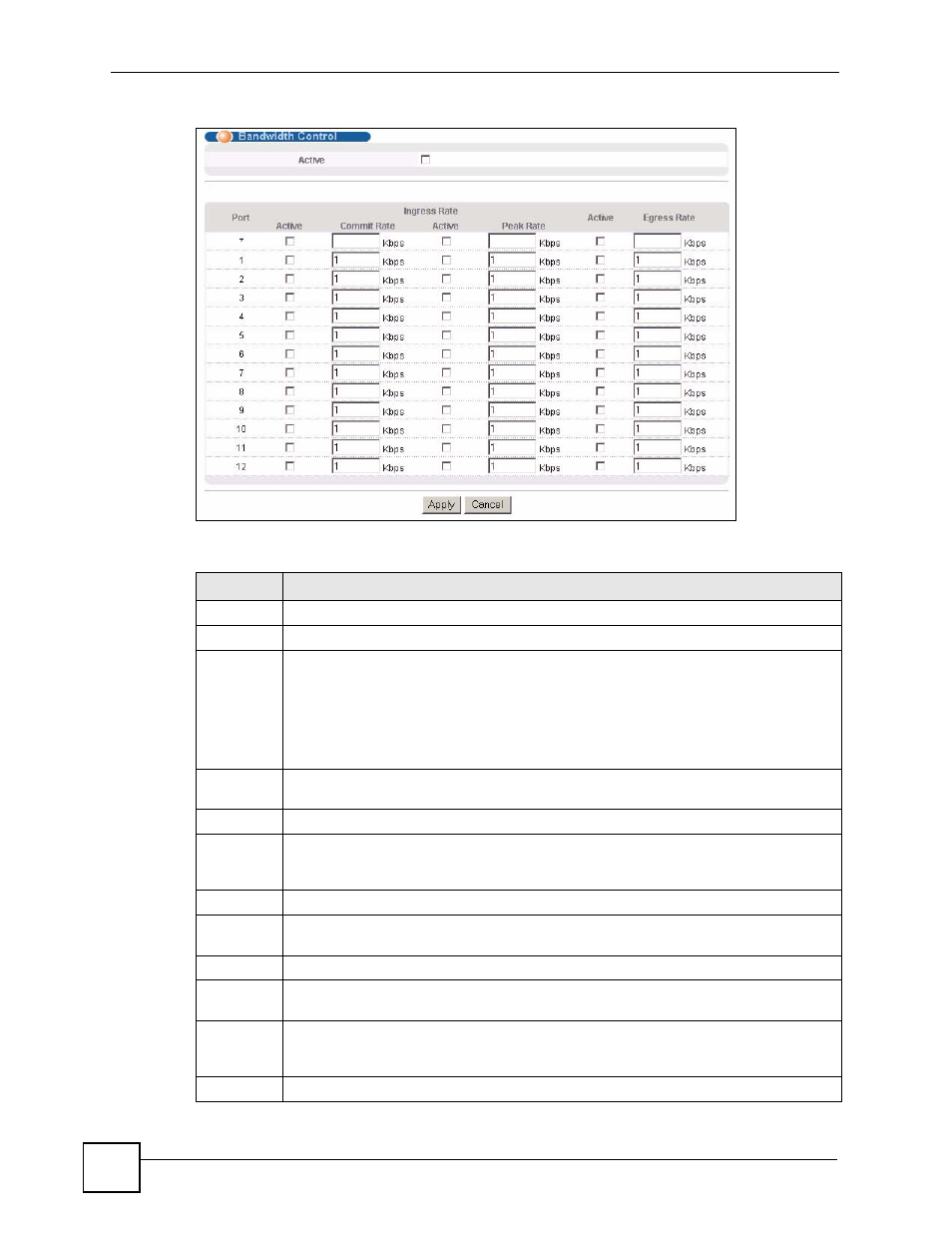

Figure 55 Bandwidth Control
The following table describes the labels in this screen.
Table 31 Bandwidth Control
LABEL DESCRIPTION
Active Select this check box to activate bandwidth control.
Port This field displays the port number.
* Settings in this row apply to all ports.
Use this row only if you want to make some settings the same for all ports. Use this row
first to set the common settings and then make adjustments on a port-by-port basis.
Note: Changes in this row are copied to all the ports as soon as you
make them.
Ingress
Rate
Active Select this check box to activate commit rate limits on this port.
Commit
Rate
Specify the guaranteed bandwidth allowed in kilobits per second (Kbps) for the incoming
traffic flow on a port. The commit rate should be less than the peak rate. The sum of
commit rates cannot be greater than or equal to the uplink bandwidth.
Active Select this check box to activate peak rate limits on this port.
Peak
Rate
Specify the maximum bandwidth allowed in kilobits per second (Kbps) for the incoming
traffic flow on a port.
Active Select this check box to activate egress rate limits on this port.
Egress
Rate
Specify the maximum bandwidth allowed in kilobits per second (Kbps) for the out-going
traffic flow on a port. Enter a number between 1 and 1000000.
Apply Click Apply to save your changes to the switch’s run-time memory. The switch loses
these changes if it is turned off or loses power, so use the Save link on the top navigation
panel to save your changes to the non-volatile memory when you are done configuring.
Cancel Click Cancel to reset the fields to your previous configuration.
