Chapter 23 Routing Protocol
GS-3012/GS-3012F User’s Guide
166
View the current static routes on the switch in the summary table at the bottom of the screen.

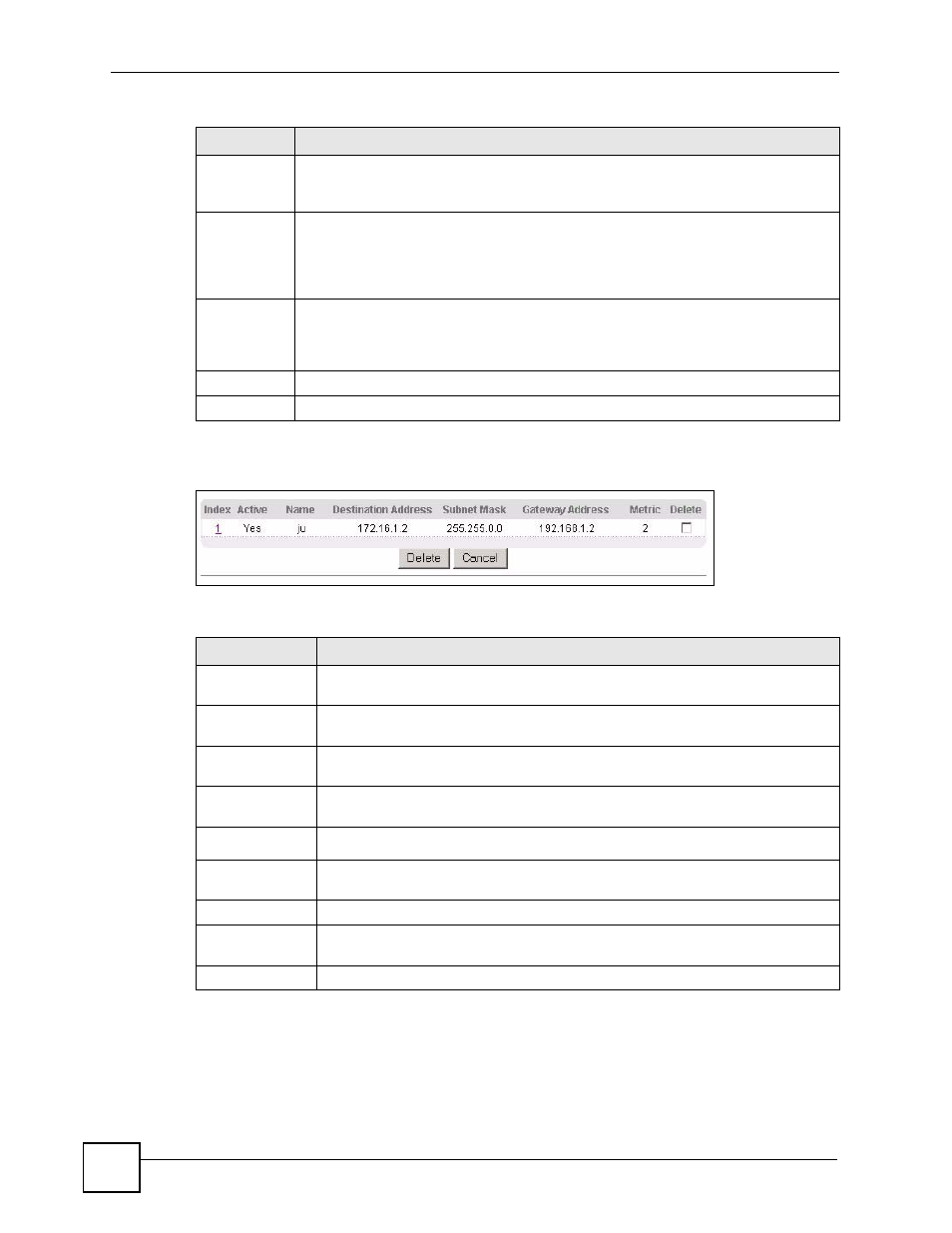

Figure 85 Static Routing: Summary Table
The following table describes the labels in the summary table.
Gateway IP
Address
Enter the IP address of the gateway. The gateway is an immediate neighbor of your
switch that will forward the packet to the destination. The gateway must be a router on
the same segment as your switch.
Metric The metric represents the “cost” of transmission for routing purposes. IP routing uses
hop count as the measurement of cost, with a minimum of 1 for directly connected
networks. Enter a number that approximates the cost for this link. The number need
not be precise, but it must be between 1 and 15. In practice, 2 or 3 is usually a good
number.
Add Click Add to insert a new static route in the summary table below and save your
changes to the switch’s run-time memory. The switch loses these changes if it is
turned off or loses power, so use the Save link on the top navigation panel to save your
changes to the non-volatile memory when you are done configuring.
Cancel Click Cancel to reset the fields to your previous configuration.
Clear Click Clear to clear the fields to the factory defaults.
Table 58 Static Routing: Summary Table
LABEL DESCRIPTION
Index This field displays the index number of the route. Click a number to edit the static
route entry.
Active This field displays Yes when the static route is activated and NO when is it
deactivated.
Name This field displays the descriptive name for this route. This is for identification
purpose only.
Destination
Address
This field displays the IP network address of the final destination.
Subnet Mask This field displays the subnet mask for this destination.
Gateway
Address
This field displays the IP address of the gateway. The gateway is an immediate
neighbor of your switch that will forward the packet to the destination.
Metric This field displays the cost of transmission for routing purposes.
Delete Check the rule(s) that you want to remove in the Delete column, and then click the
Delete button.
Cancel Click Cancel to clear the selected checkboxes in the Delete column.
Table 57 Static Routing (continued)
LABEL DESCRIPTION
