ZyAIR G-2000 Plus User’s Guide

Chapter 11 Static Route Screens

152

C

H A P T E R

11

Static Route Screens

This chapter shows you how to configure static routes for your ZyAIR.

11.1 Static Route Overview

Each remote node specifies only the network to which the gateway is directly connected, and
the ZyAIR has no knowledge of the networks beyond. For instance, the ZyAIR knows about
network N2 in the following figure through remote node router R1. However, the ZyAIR is
unable to route a packet to network N3 because it doesn't know that there is a route through the
same remote node router R1 (via gateway router R2). The static routes are for you to tell the
ZyAIR about the networks beyond the remote nodes.

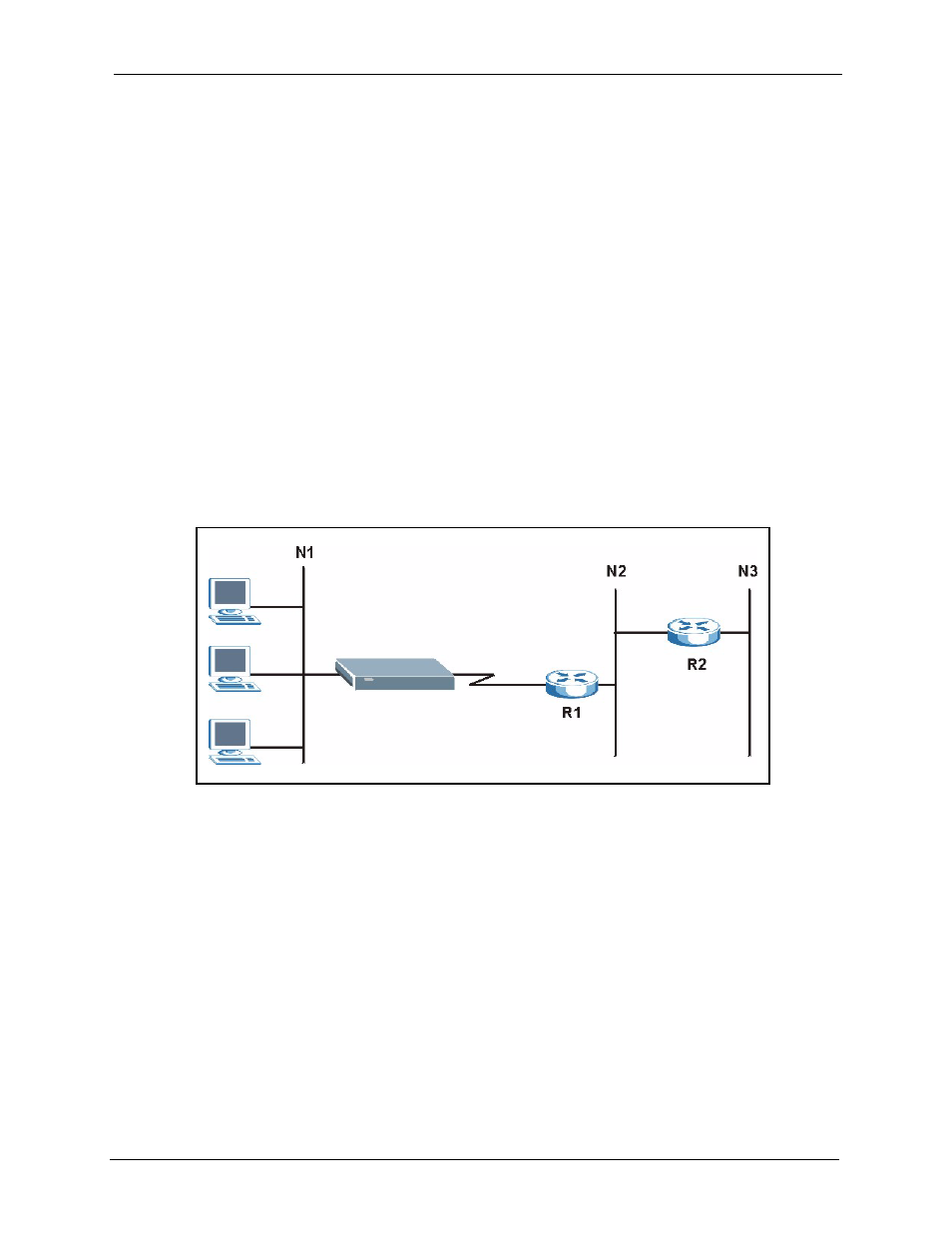

Figure 62 Example of Static Routing Topology

11.2 Configuring IP Static Route

Click STATIC ROUTE to open the screen as shown next.
