PROBLEM SOLVING 13–6 DOCUMENT CENTRE CS 50 USER GUIDE
2
3
4
5
6
7
13
Paper jam behind the Right Door
1 When the Touch Screen displays a message
indicating a jam behind the Right Door, if there is a
Sorter/Mailbox, push down on the release lever,
as illustrated in Figure 6, and push the Sorter/
Mailbox away from the copier/printer.
2 Open the Right Door, as illustrated in Figure 7.
3 Remove all paper that is visible in the area.
4 Close the Right Door.
If there is a Sorter/Mailbox, push the Sorter/
Mailbox back into place.

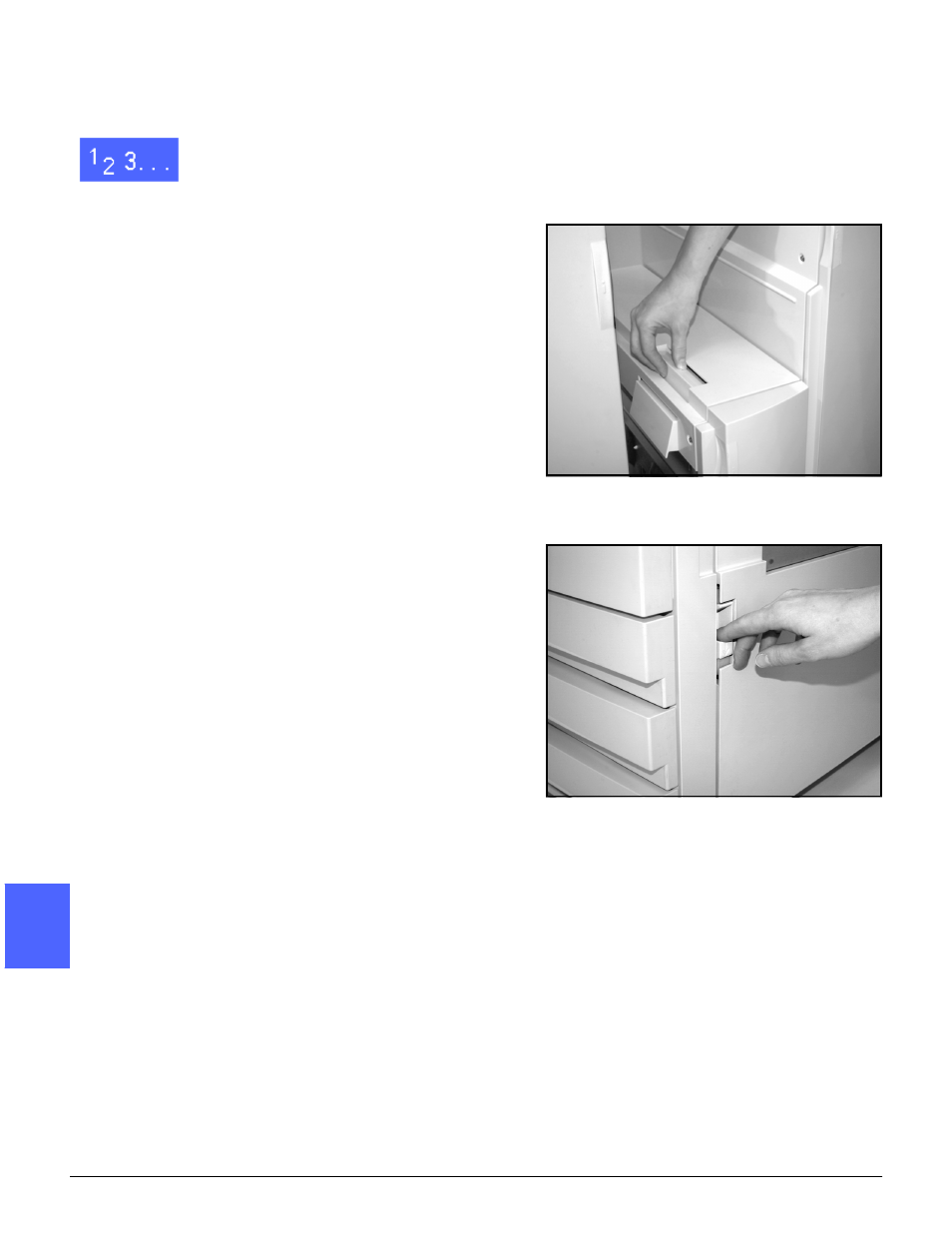

Figure 6: The Sorter/Mailbox release lever
Figure 7: Opening the Right Door
